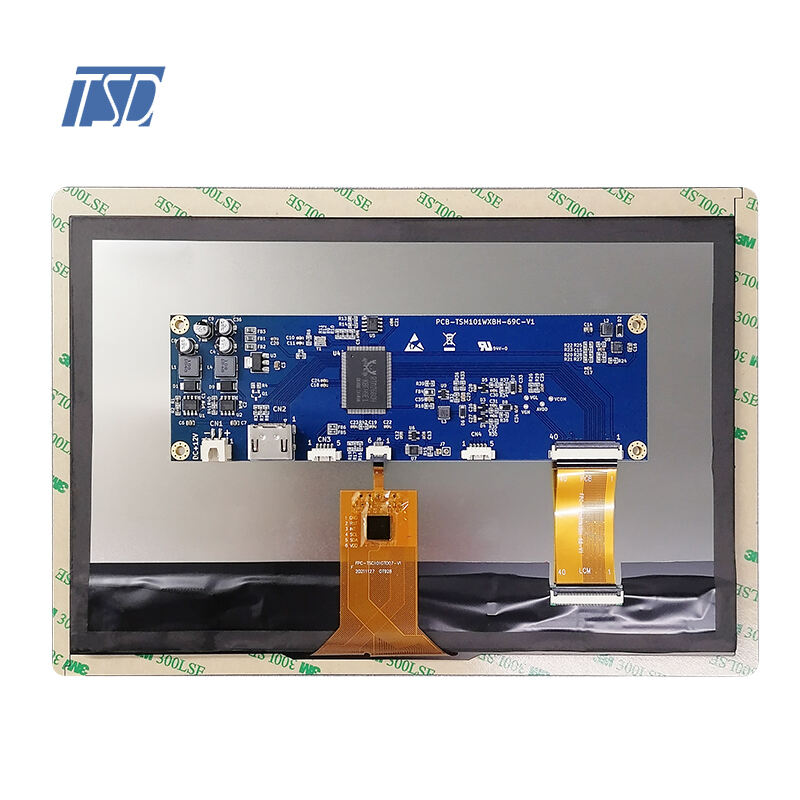

10. inch 1280*800 HDMI USB Interface IPS Screen Touch Panel TFT LCD Display Modules

LCD Type a-Si TFT,Transmissive,Normally black
LCD Size 10.1
Resolution (W x H) 1280x (RGB) × 800

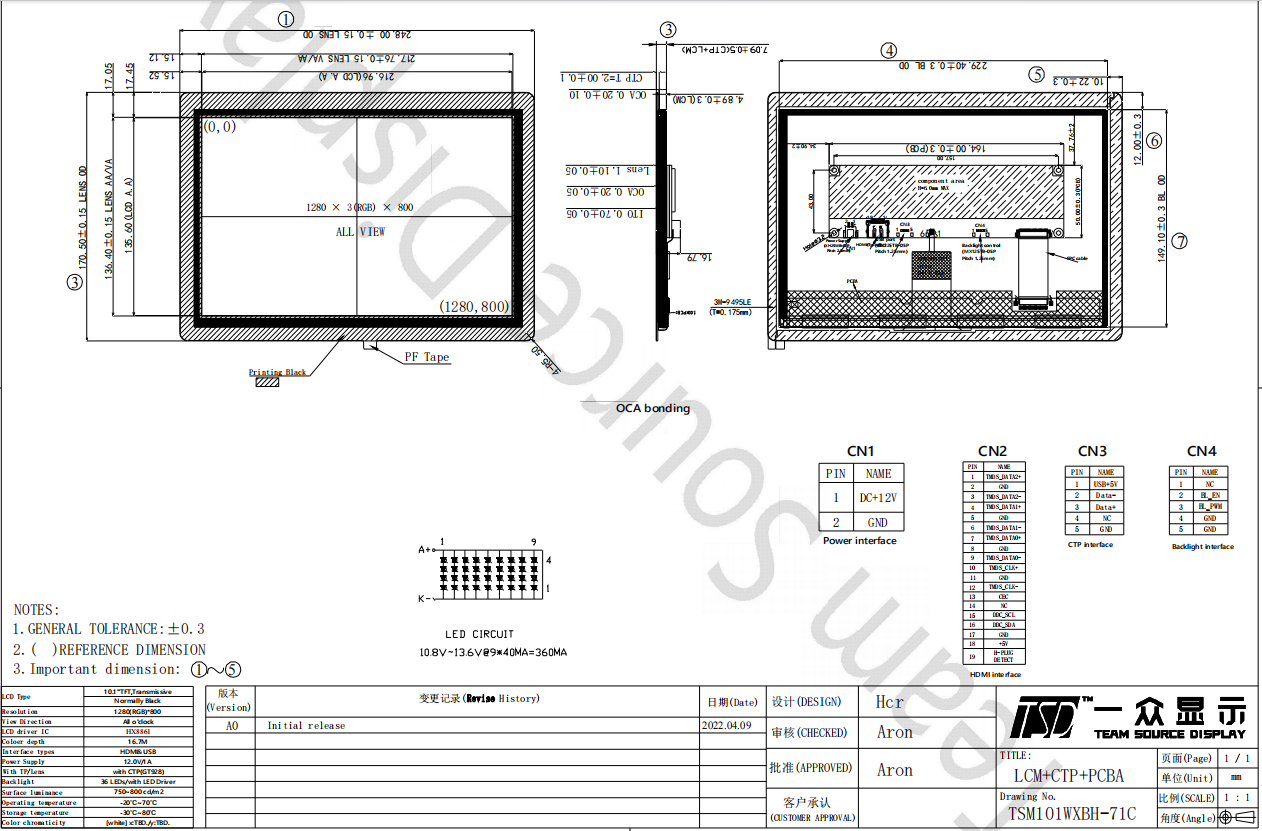

Outline size 248.0(H) x 170.5(V) x 16.79(T)
Active Area 216.96 (H) x 135.6( V)
Pixel Pitch 0.1695(H)x0.1695(V)
Viewing Direction ALL o'clock
Color Depth 16.7M
Pixel Arrangement RGB-stripe
Backlight Type 36 LEDs
Surface Luminance 750(Min),800(TYP)
LCD Driver IC HX8861
Interface Type HDMI(LCD),USB(CTP)
With/Without TP or Lens With CTP
Brand:
TSD
Spu:
TSM101WXBH-71C
Appurtenance:
  • Overview
  • Related Products


10. inch 1280*800 HDMI USB Interface IPS Screen Touch Panel TFT LCD Display Modules

LCD Type a-Si TFT,Transmissive,Normally black
LCD Size 10.1
Resolution (W x H) 1280x (RGB) × 800
Outline size 248.0(H) x 170.5(V) x 16.79(T)
Active Area 216.96 (H) x 135.6( V)
Pixel Pitch 0.1695(H)x0.1695(V)
Viewing Direction ALL o'clock
Color Depth 16.7M
Pixel Arrangement RGB-stripe
Backlight Type 36 LEDs
Surface Luminance 750(Min),800(TYP)
LCD Driver IC HX8861
Interface Type HDMI(LCD),USB(CTP)
With/Without TP or Lens With CTP




Have any customize requirements, please feel free to contact us.
