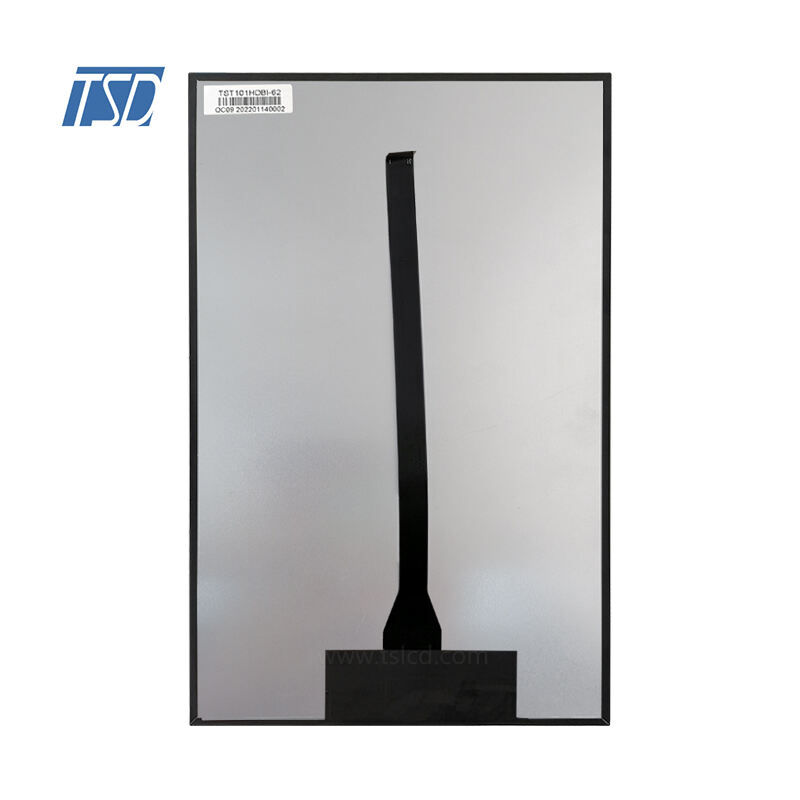

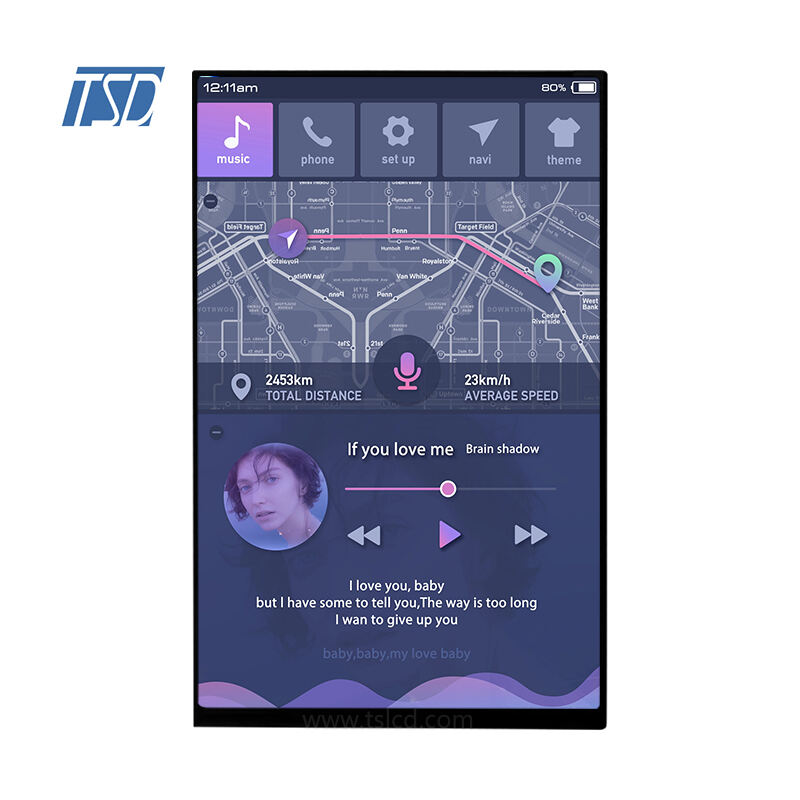

10.1 inch 800*1280 Vertical IPS Screen MIPI Interface Touch Screen Panel TFT LCD Display Modules
| LCD Type | a-Si TFT,Transmissive,Normally black |
| LCD Size | 10.1 |
| Resolution (W x H) | 800 x (RGB) × 1280 |
| Outline size | 143(W) x 228.6(H) x 2.6(D) |
| Active Area | 135.36 (W) x 216.58 (H) |
| Pixel Pitch | 0.1692(H)x0.1692(V) |
| Viewing Direction | ALL o'clock |
| Color Depth | 16.7M |
| Pixel Arrangement | RGB-stripe |
| Backlight Type | 32 LEDs |
| Surface Luminance | 350 |
| LCD Driver IC | ILI9881C |
| Interface Type | MIPI |
| With/Without TP or Lens | With CTP(IC:GT928) |
Spu:
TST101HDBI-62
Appurtenance:
- Overview
- Related Products
10.1 inch 800*1280 Vertical IPS Screen MIPI Interface Touch Screen Panel TFT LCD Display Modules
| LCD Type | a-Si TFT,Transmissive,Normally black |
| LCD Size | 10.1 |
| Resolution (W x H) | 800 x (RGB) × 1280 |
| Outline size | 143(W) x 228.6(H) x 2.6(D) |
| Active Area | 135.36 (W) x 216.58 (H) |
| Pixel Pitch | 0.1692(H)x0.1692(V) |
| Viewing Direction | ALL o'clock |
| Color Depth | 16.7M |
| Pixel Arrangement | RGB-stripe |
| Backlight Type | 32 LEDs |
| Surface Luminance | 350 |
| LCD Driver IC | ILI9881C |
| Interface Type | MIPI |
| With/Without TP or Lens | With CTP(IC:GT928) |
Have any customize requirements, please feel free to contact us.
