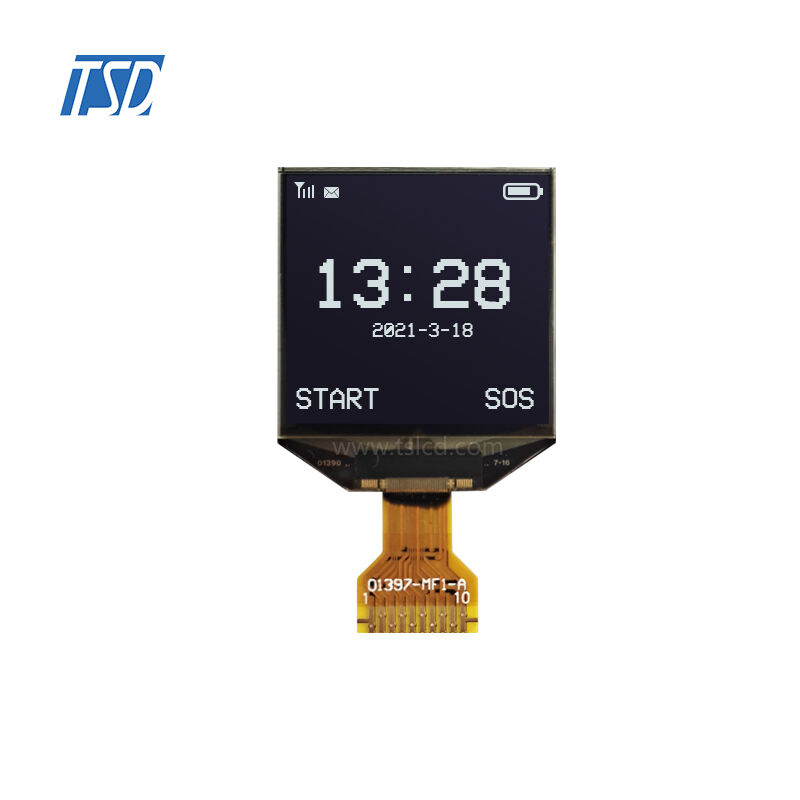

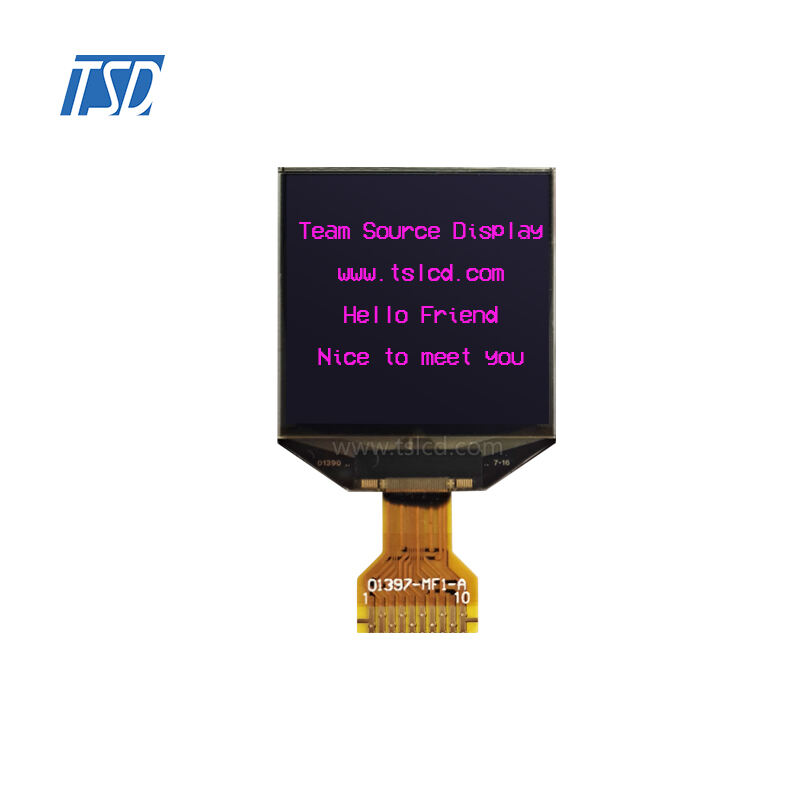

1.06 inch128*128 SPI 10pin SH1107 IC OLED Module
The sought-after 1.06-inch monochrome LCD OLED display that is designed for smart watches. This product adopts SPI interface, the data transmission is efficient and stable. This design contains 10-pins, which makes for easy installation and convenient connection of the circuit. Includes a SH1107 chip for maximum display reliability. The 128*128 resolution is sufficient to present important information such as time, step count and heart rate clearly, allowing the smartwatch to provide a convenient and intuitive interactive experience for users.
| Part Number | TSO128128-A01 |
| Outline | 22.06*38.04*1.28 |
| AA Size | 19.052*19.052 |
| Color | White |
| Connection | SPI |
| PIN # | 10 |
| Connector | solder |
| Resolution | 128*128 |
| IC | SH1107 |
| Inch | 1.06 |
a
- Overview
- Related Products
1.06 inch128*128 SPI 10pin SH1107 IC OLED Module
The sought-after 1.06-inch monochrome LCD OLED display that is designed for smart watches. This product adopts SPI interface, the data transmission is efficient and stable. This design contains 10-pins, which makes for easy installation and convenient connection of the circuit. Includes a SH1107 chip for maximum display reliability. The 128*128 resolution is sufficient to present important information such as time, step count and heart rate clearly, allowing the smartwatch to provide a convenient and intuitive interactive experience for users.
| Part Number | TSO128128-A01 |
| Outline | 22.06*38.04*1.28 |
| AA Size | 19.052*19.052 |
| Color | White |
| Connection | SPI |
| PIN # | 10 |
| Connector | solder |
| Resolution | 128*128 |
| IC | SH1107 |
| Inch | 1.06 |
Have any customize requirements, please feel free to contact us.
