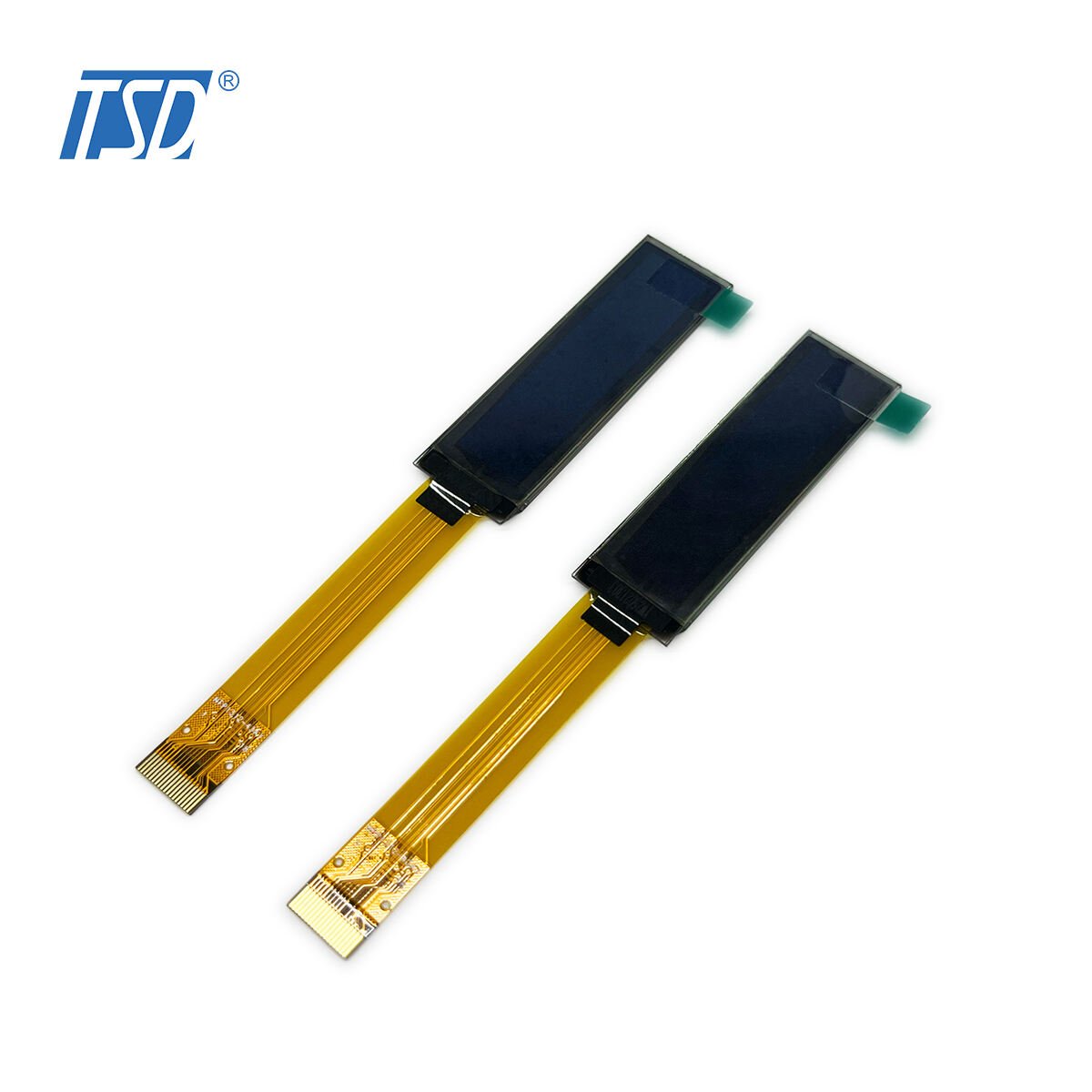

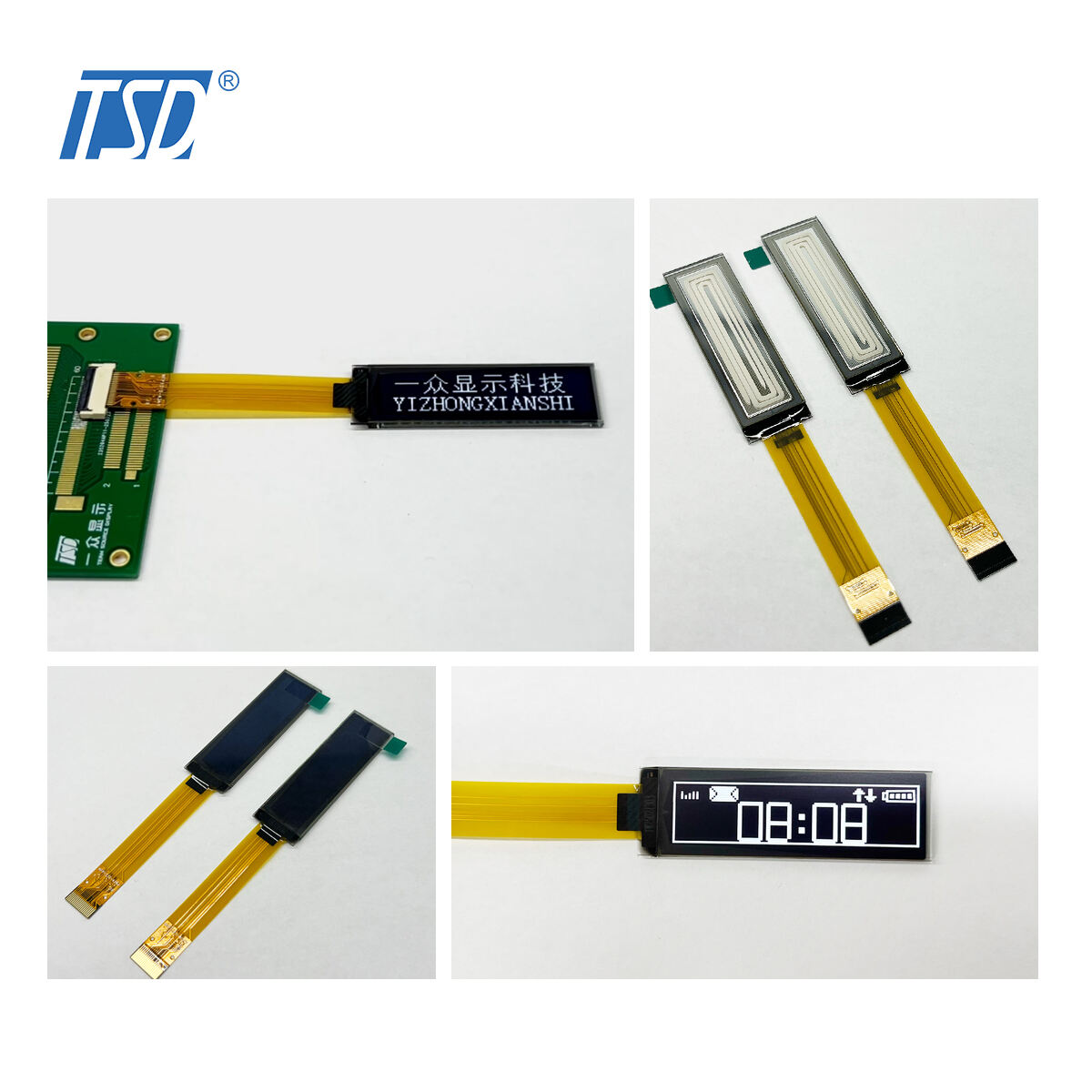

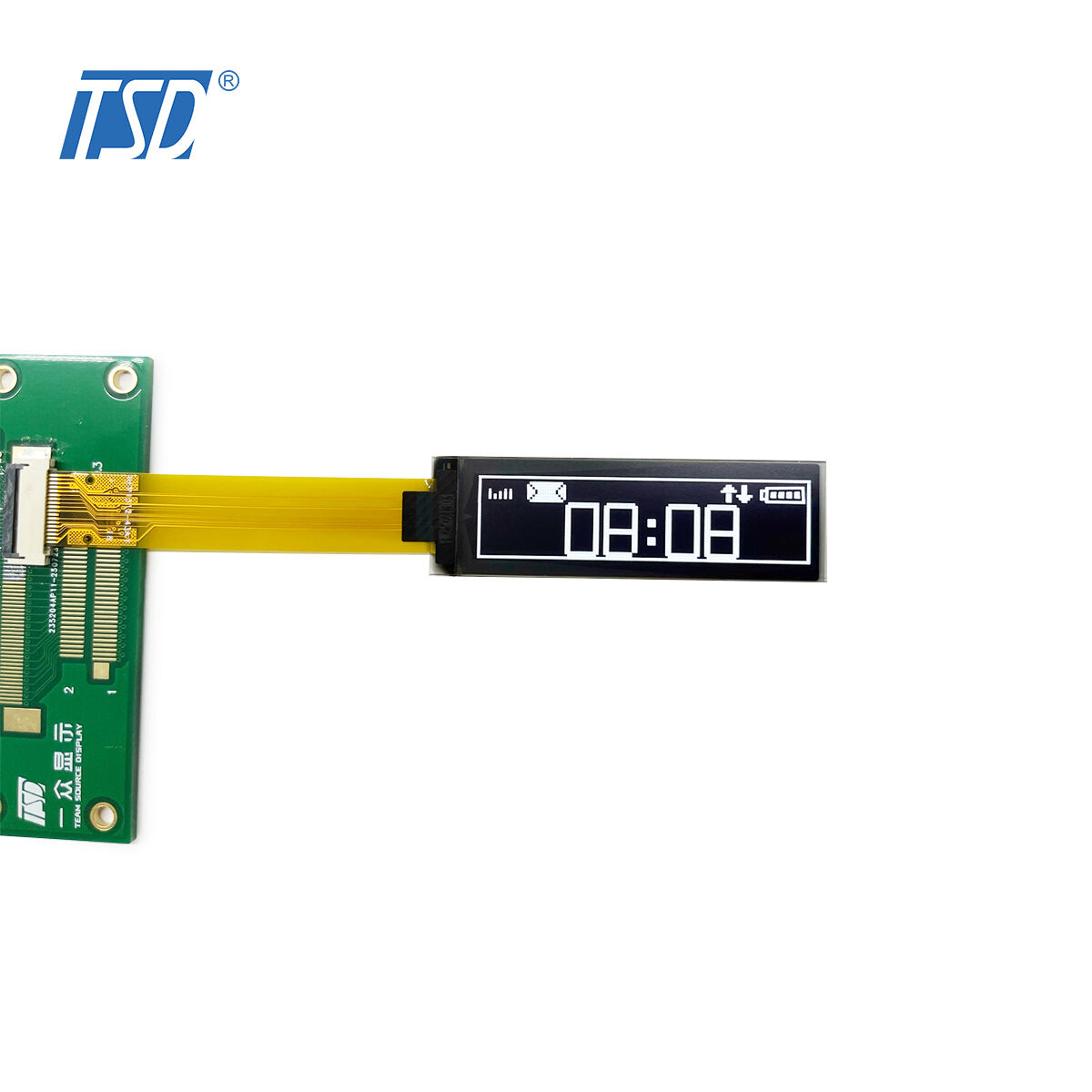

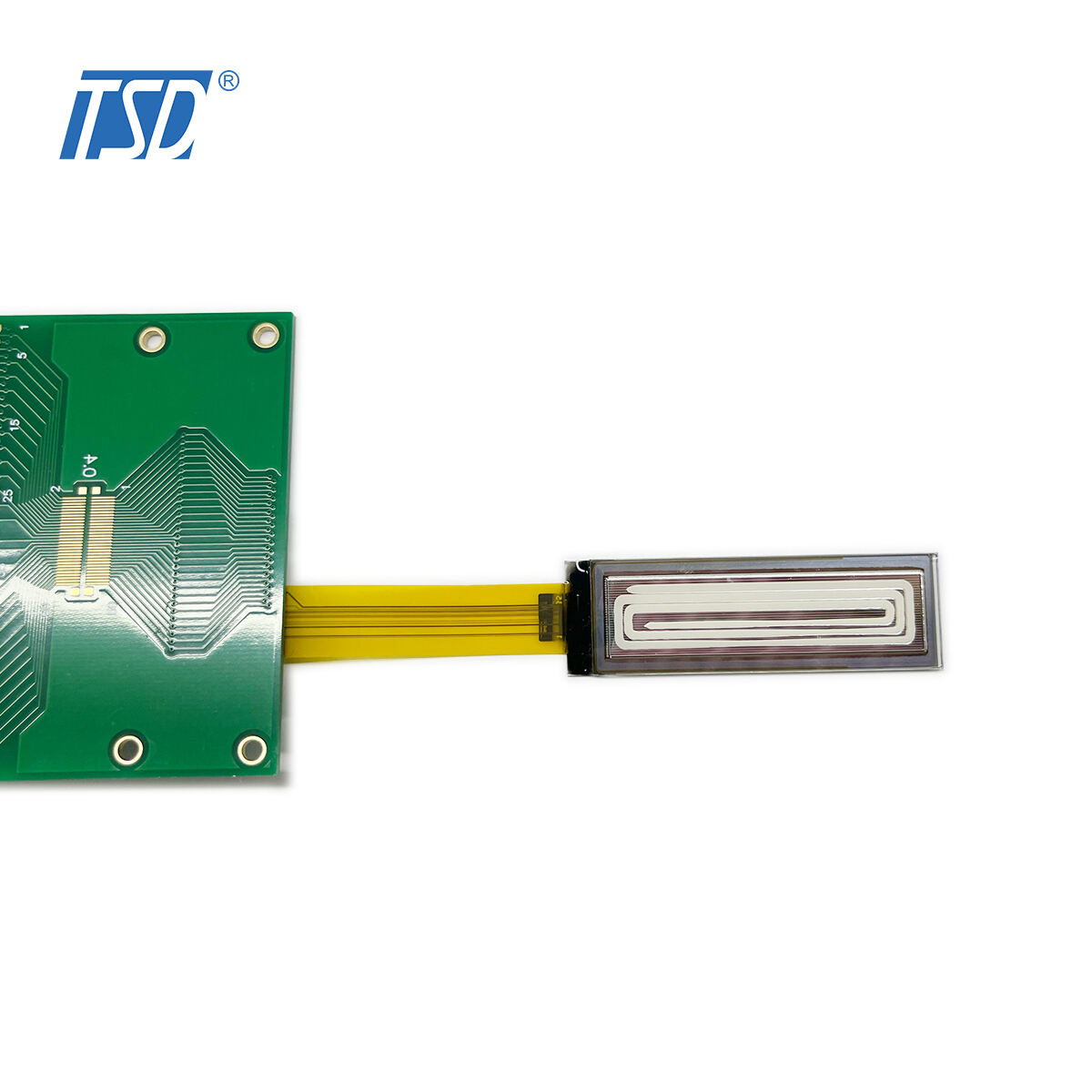

128x32 1.71 inch SSD1312 SPI I2C Passive Matrix Monochrome OLED Display Modules
|
Display Type |
1.71"OLED |
|
Resolut ion |
128*32 |
|
LCD driver IC |
SSD1312 |
|
Color depth |
Monochrome(White) |
|
Interface types |
3/4-wire SPl,PC |
|
0perating voltage |
VDD=2.8 TYP |
|
0perating temperature |
-40C~70C |
|
Storage temperature |
-40C~80°C |
|
Color chromaticity |
x:0.25~0.33/y:0.27~0.35 |
Brand:
TSD
Spu:
TSO12832-20
Appurtenance:
- Overview
- Related Products
128x32 1.71 inch SSD1312 SPI I2C Passive Matrix Monochrome OLED Display Modules，12832 OLED
1.1 Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White)
3) Drive Duty: 1/32 Duty
1.2 Mechanical Specifications

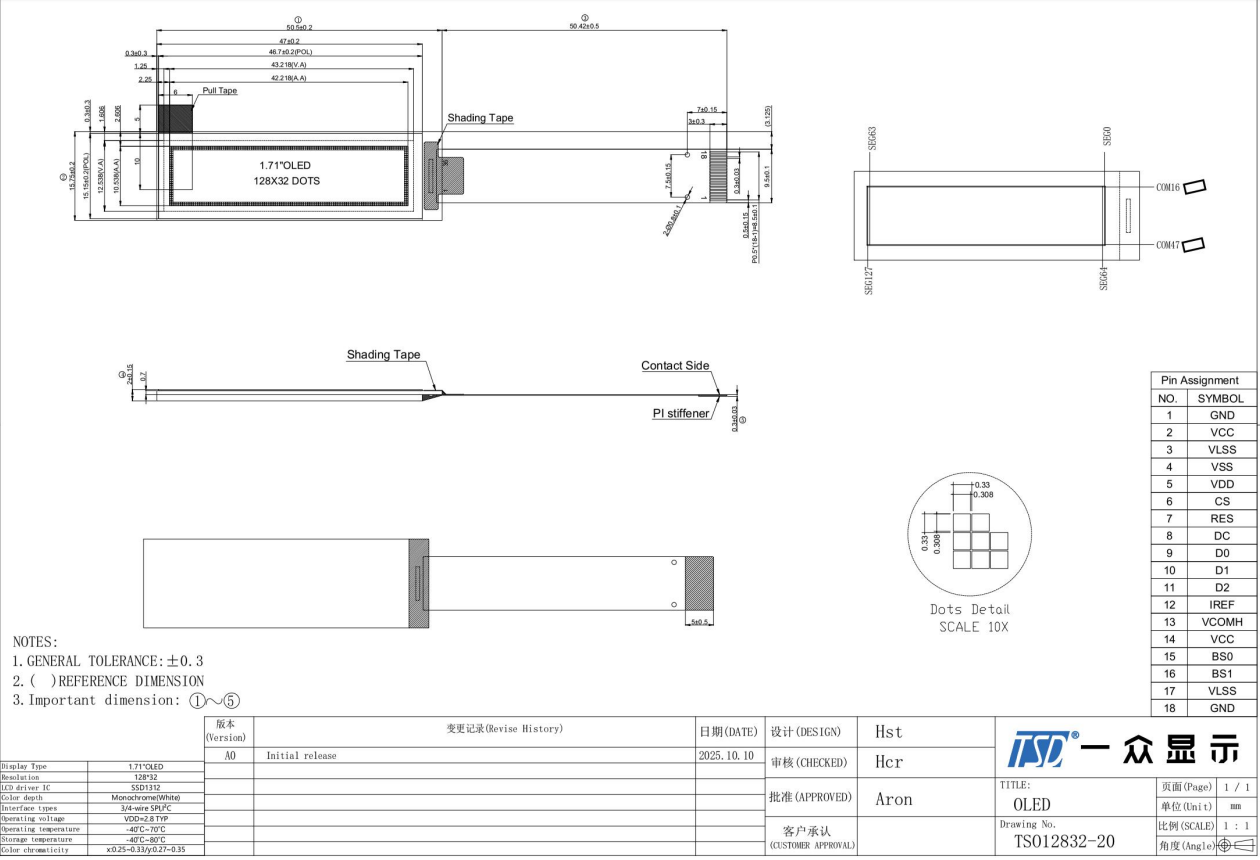

1) Outline Drawing: According to the annexed outline drawing
2) Number of Pixels: 128 32
3) Panel Size: 50.5 15.75 2.0 (mm)
4) Active Area: 42.218 10.538 (mm)
5) Pixel Pitch: 0.33 0.33 (mm)
6) Pixel Size: 0.308 0.308 (mm)
7) Weight: TBD
Display Type |
1.71"OLED |
Resolut ion |
128*32 |
LCD driver IC |
SSD1312 |
Color depth |
Monochrome(White) |
Interface types |
3/4-wire SPl,PC |
0perating voltage |
VDD=2.8 TYP |
0perating temperature |
-40C~70C |
Storage temperature |
-40C~80°C |
Color chromaticity |
x:0.25~0.33/y:0.27~0.35 |
Have any customize requirements, please feel free to contact us.
