3.7 inch 240*416 Active Matrix Electrophoretic Display AMEPD Epaper Elink Display Modules
TSE037A56-BWRY is an Active Matrix Electrophoretic Display (AMEPD) with interface and a reference system design. The 3.7’’ active area contains 240×416 pixels, and has 2-bit B/W/R/Y full display capabilities. An integrated circuit contains gate buffer, source buffer, interface,timing control logic,oscillator, DC-DC, SRAM, LUT ,VCOM and border are supplied with each panel.
|
Parameter |
Specifications |
Unit |
Remark |
|
Screen Size |
3.7 |
Inch |
|
|
Display Resolution |
240(H)×416(V) |
Pixel |
Dpi:129 |
|
Active Area |
47.04(H)×81.54(V) |
mm |
|
|
Pixel Pitch |
0.202×0.203 |
mm |
|
|
Pixel Configuration |
Rectangle |
|
|
|

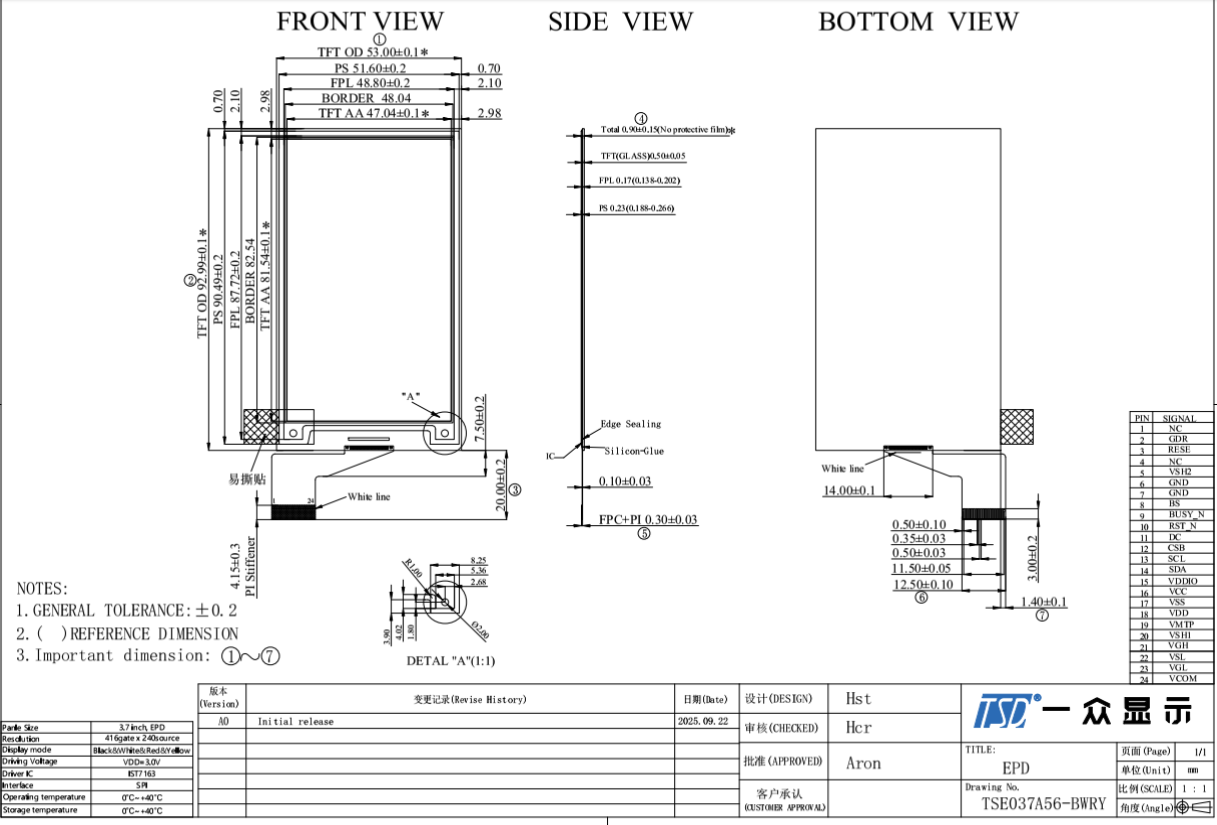

Outline Dimension |
53(H)×92.99 (V) ×0.90(D) |
mm |
Without masking film |
|
Weight |
8.5±0.5 |
g |
Brand:
TSD
Spu:
TSE037A56-BWRY
Appurtenance:
- Overview
- Related Products
3.7 inch 240*416 Active Matrix Electrophoretic Display AMEPD Epaper Elink Display Modules
TSE037A56-BWRY is an Active Matrix Electrophoretic Display (AMEPD) with interface and a reference system design. The 3.7’’ active area contains 240×416 pixels, and has 2-bit B/W/R/Y full display capabilities. An integrated circuit contains gate buffer, source buffer, interface,timing control logic,oscillator, DC-DC, SRAM, LUT ,VCOM and border are supplied with each panel.
Parameter |
Specifications |
Unit |
Remark |
Screen Size |
3.7 |
Inch |
|
Display Resolution |
240(H)×416(V) |
Pixel |
Dpi:129 |
Active Area |
47.04(H)×81.54(V) |
mm |
|
Pixel Pitch |
0.202×0.203 |
mm |
|
Pixel Configuration |
Rectangle |
|
|
Outline Dimension |
53(H)×92.99 (V) ×0.90(D) |
mm |
Without masking film |
Weight |
8.5±0.5 |
g |
Have any customize requirements, please feel free to contact us.
