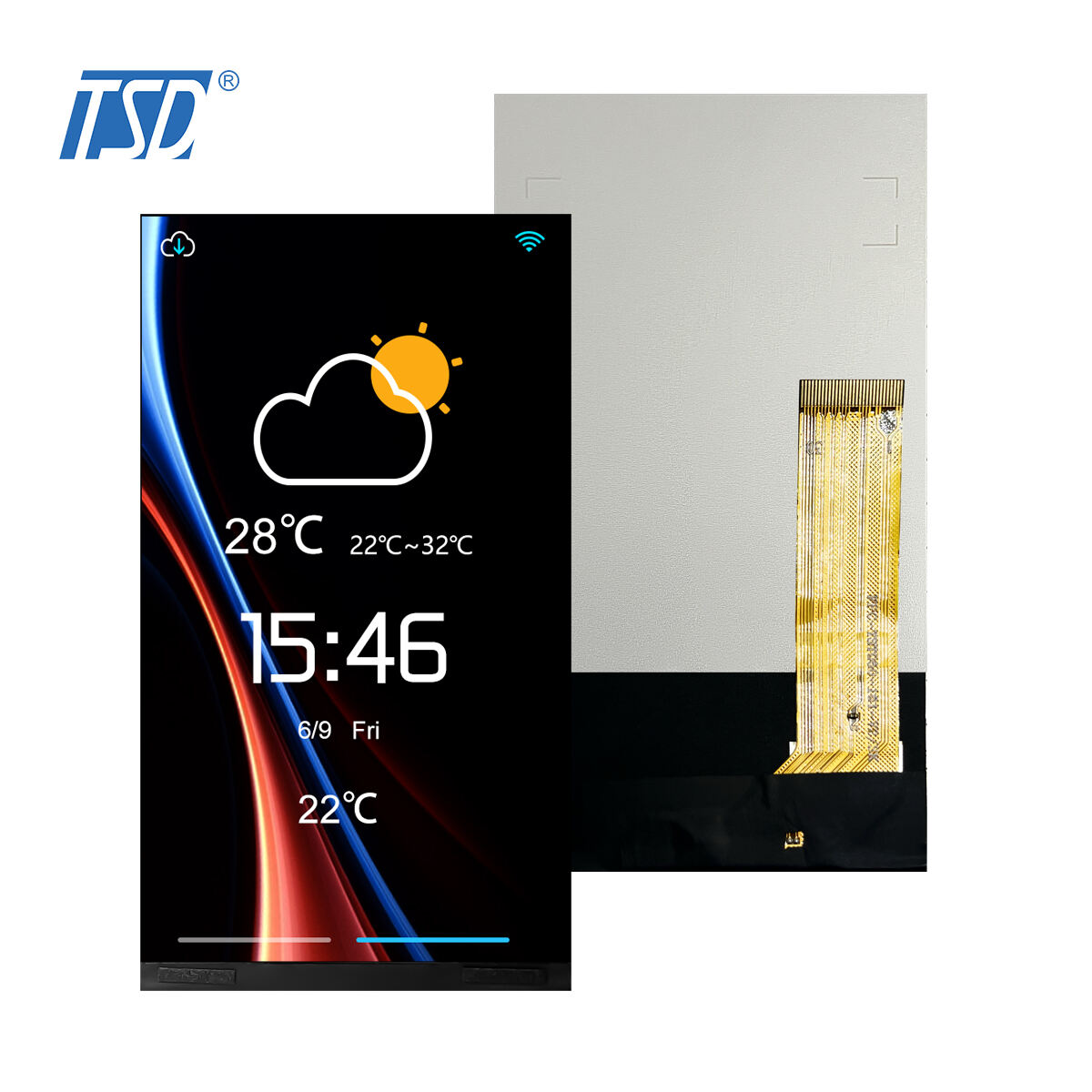

5 Inch 480*854 IPS Screen 1200 Nits MIPl Interface Two Wheel Vehicle Dashboard Motorcycle EV Scooter TFT LCD Display Modules

5 Inch 480*854 IPS Screen 1200 Nits MIPl Interface Two Wheel Vehicle Dashboard Motorcycle EV Scooter TFT LCD Display Modules

LCD Type	a-Si TFT,Transmissive,Normally black,IPS
LCD Size	5.0 inch
Resolution	(W x H) 480x (RGB) × 854 pixel
Outline size	64.92(H) x 117.70(V) x2.35(T) mm
Active Area	61.63 (H) x 109.65 (V) mm
Pixel Pitch	0.1284 (H) X 0.1284 (V) mm
Viewing Direction	ALL o’clock
Driver IC	ST7701SN
Color Depth	RGB-stripe
Surface Luminance	1100(MIN)~1200(TYP) cd/m²
Lens Surface Treatment	Clear
LCD Interface Type	2 lane-MIPI

Brand:

TSD

Spu:

TST050FWHS-161

Appurtenance:

5 inch 480854 ips screen 1200 nits mipl interface two wheel vehicle dashboard motorcycle ev scooter tft lcd display modules-1

Overview
Related Products


5 Inch 480*854 IPS Screen 1200 Nits MIPl Interface Two Wheel Vehicle Dashboard Motorcycle EV Scooter TFT LCD Display Modules

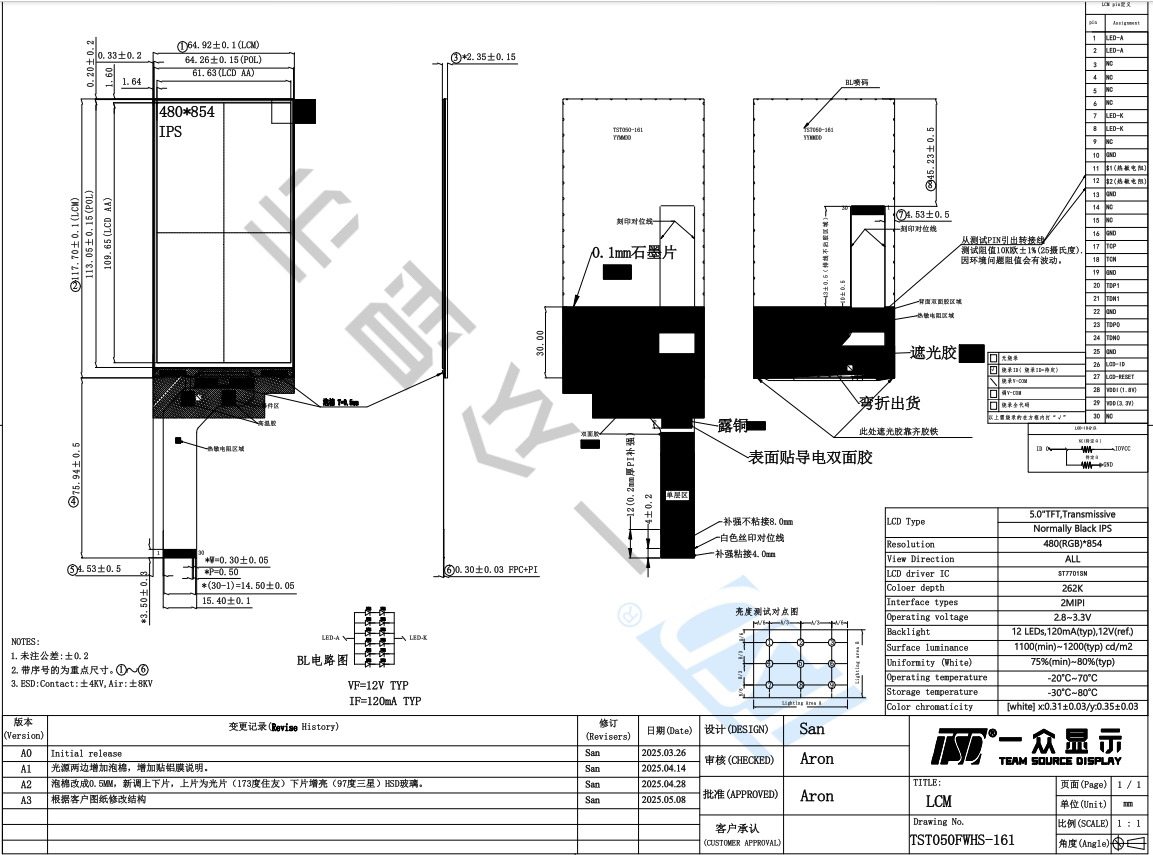

TST050FWHS-161 is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFT LCD panel, driver IC, FPC, backlight . The active display area is a 5.0-inch measurement on the diagonal,with a native resolution of 480 * RGB * 854. The characteristics of this product are shown in the following table below.

LCD Type	a-Si TFT,Transmissive,Normally black,IPS
LCD Size	5.0 inch
Resolution	(W x H) 480x (RGB) × 854 pixel
Outline size	64.92(H) x 117.70(V) x2.35(T) mm
Active Area	61.63 (H) x 109.65 (V) mm
Pixel Pitch	0.1284 (H) X 0.1284 (V) mm
Viewing Direction	ALL o’clock
Driver IC	ST7701SN
Color Depth	RGB-stripe
Surface Luminance	1100(MIN)~1200(TYP) cd/m²
Lens Surface Treatment	Clear
LCD Interface Type	2 lane-MIPI
