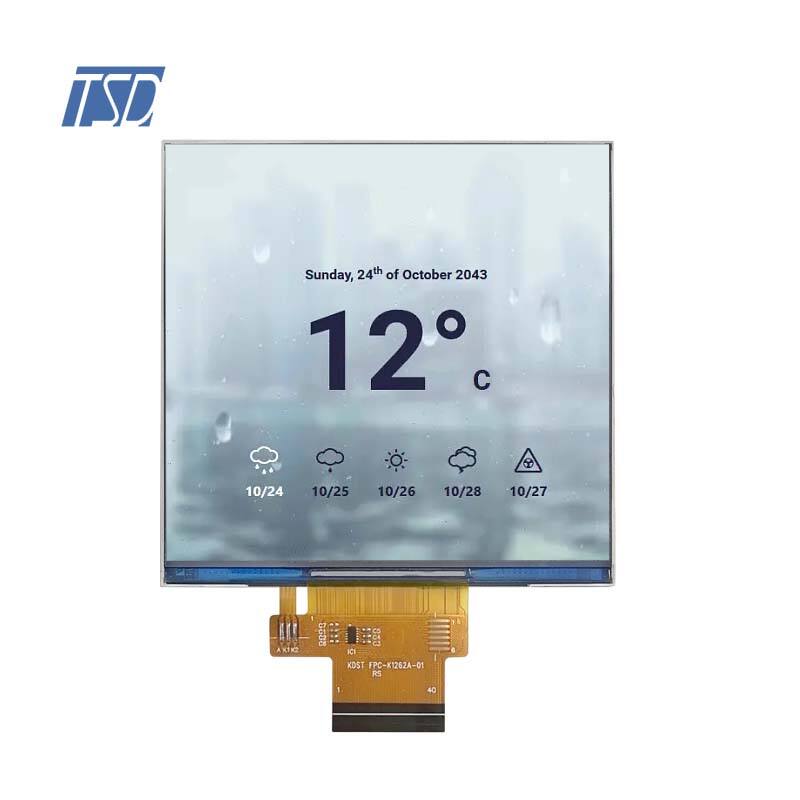

Custom 4.2'' 4.2 Inch 720*672 USB I2C Interface FT6336U Square CTP Capacitive Touch Screen TFT LCD Display Modules
A Custom four point two by four point two inch capacitive touch screen High resolution 720x720 for a crisp display. Data interaction and control between devices are easy to achieve through the USB and I2C interfaces. Features FT6336U chip, recognized accurately to touch operation, sensitive response. For touch LCD applications where the display needs to be integrated into a stylish format, such as 4inch touch screen for smart devices, industrial control and other fields, integrating the touch experience into an efficient compact package.
| Size(inch) | 4.2 |

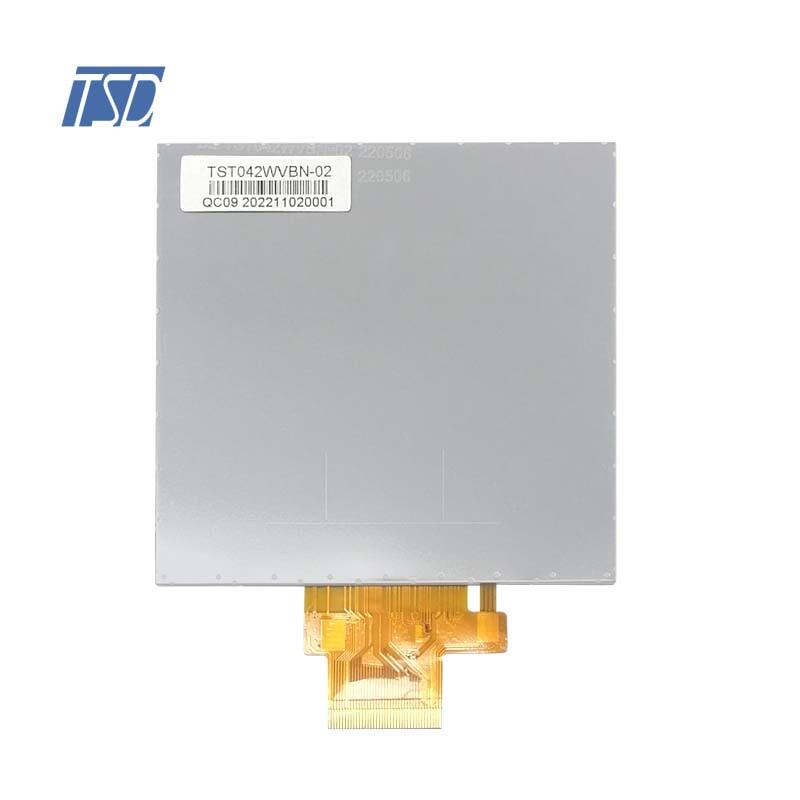

| Part number | TST042WVBN-02 |
| Resolution | 720xRGBx672 |
| Outline (mm) | 81.38x79.68x1.96 |
| Active Area(mm) | 77.976x72.7776 |
| Viewing Angle | IPS |
| Interface | SPI+RGB |
| Brightness(nit) | 300 |
| Driver IC | NV3052C |
| Touch Option | Yes |
Brand:
TSD
Spu:
TST042WVBN-02
Appurtenance:
- Overview
- Related Products
Custom 4.2'' 4.2 Inch 720x720 Resolution USB I2C Interface CTP Capacitive Touch Screen |
||
Commodity |
4.2 inch capacitive touch panel |
|
Resolution |
720xRGBx720 |
|
Voltage |
2.8V to 3.3V |
|
Interface |
I2C/USB |
|
Glass Brand |
AGC, Gorilla, BOE, CTC, Inolux, etc. |
|
IC Brand |
Sitronix, Ilitek, Solomon, Himax, Eeti, Fitipower, etc. |
|
Touch Structure |
G+G, G+F, P+G, G+F+F |
|
Surface Hardness |
≥6H |
|
Thickness of Cover Lens |
0.7, 1.1, 1.8, 2.8, 3.8 mm |
|
Bonding Methord |
air bonding (tape bonding), optical bonding (OCA bonding, OCR bonding). |
|
Special Surface Treatment |
AR, AG, AF |
|
Operating Temperature |
-20--+70/-30--+85(℃) |
|
Storage Temperature |
-30--+80/-40--+90(℃) |
|
Custom Service |
different colors, different shapes, logo printing, through holes, transparent windows, silk printing, anti-UV ink, colorful OCA, etc. |
|
Have any customize requirements, please feel free to contact us.
