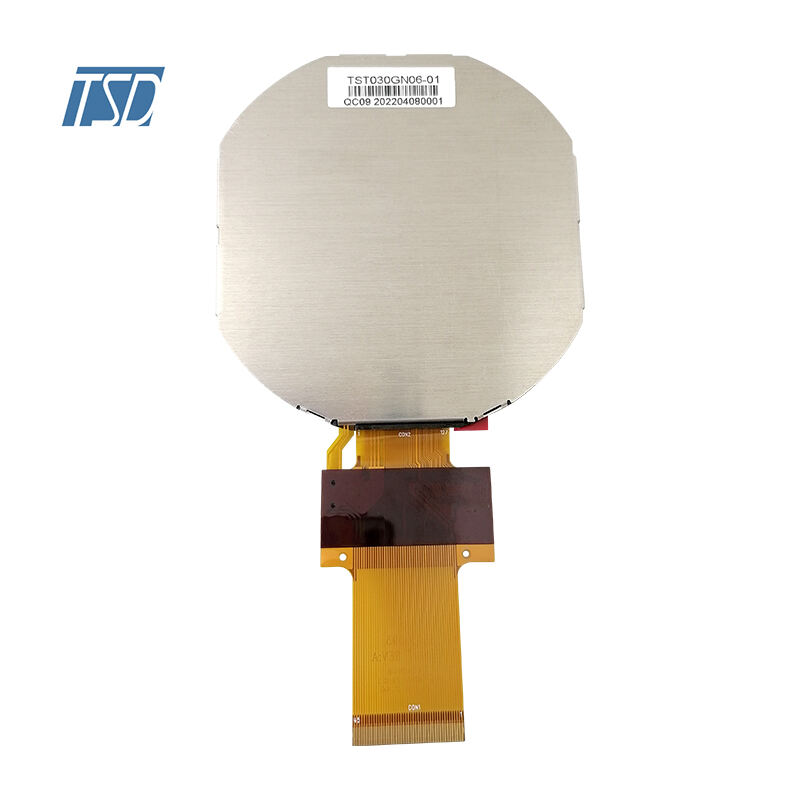

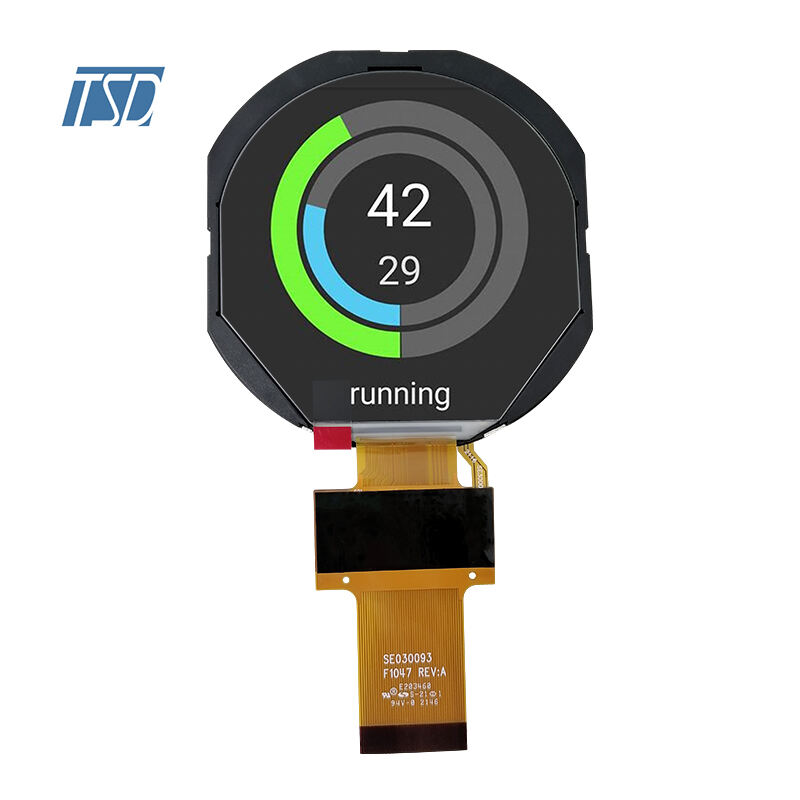

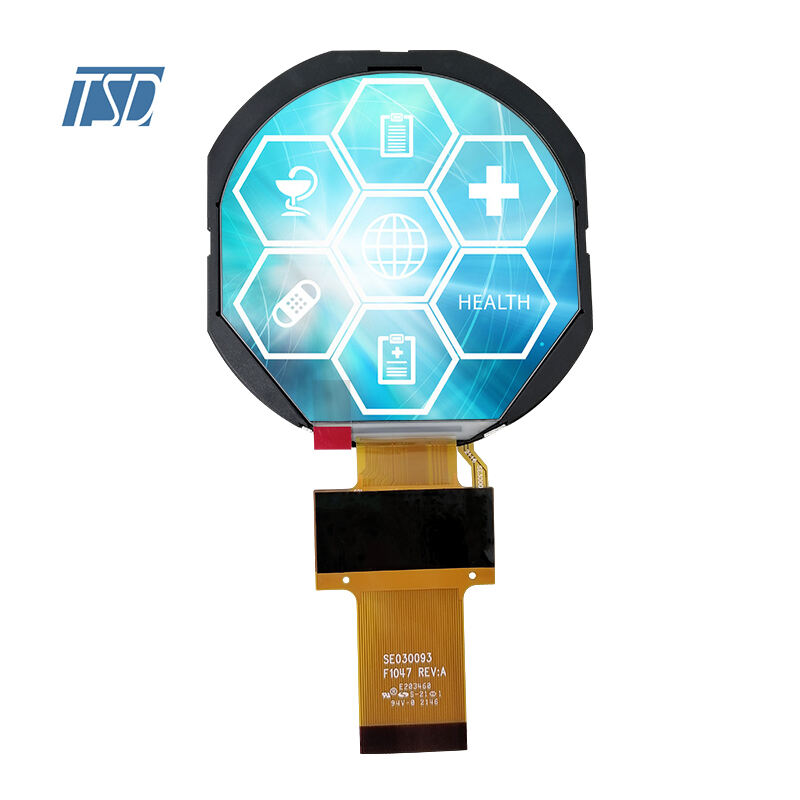

Round LCD 3'' 3 Inch 432x432 RGB Interface IPS Screen 1000nits HX8363-A TFT LCD Display Modules
The benefits of this 3-inch capacitive touch panel are substantial. The 432x432 resolution translates to a very good touch response and visual display. The dual interface of USB and I2C can not only meet the needs of fast data transmission, but also facilitate the integration with various devices. Capacitive touch technology sensitive and accurate, smooth operation. It is suitable for intelligent terminals and industrial control screens.
| Size(inch) | 3 |
| Part number | TST030GN06-01 |
| Resolution | 432xRGBx432 |
| Outline (mm) | 84.2x89.2x6.38 |
| Active Area(mm) | 74.3904x74.3904 |
| Viewing Angle | IPS |
| Interface | RGB |
| Brightness(nit) | 1000 |
| Driver IC | HX8363-A |
| Touch Option | No |
Brand:
TSD
Spu:
TST030GN06-01
Appurtenance:
- Overview
- Related Products
Round LCD 3'' 3 Inch 432x432 RGB Interface IPS Screen 1000nits HX8363-A TFT LCD Display Modules
| Size(inch) | 3 |
| Part number | TST030GN06-01 |
| Resolution | 432xRGBx432 |
| Outline (mm) | 84.2x89.2x6.38 |
| Active Area(mm) | 74.3904x74.3904 |
| Viewing Angle | IPS |
| Interface | RGB |
| Brightness(nit) | 1000 |
| Driver IC | HX8363-A |
| Touch Option | No |
Have any customize requirements, please feel free to contact us.
