3.7 inch 240x416 Electrophoretic Display AMEPD Electronic Shelf Label E ink Display

3.7 inch 240x416 Electrophoretic Display AMEPD Electronic Shelf Label E ink Display

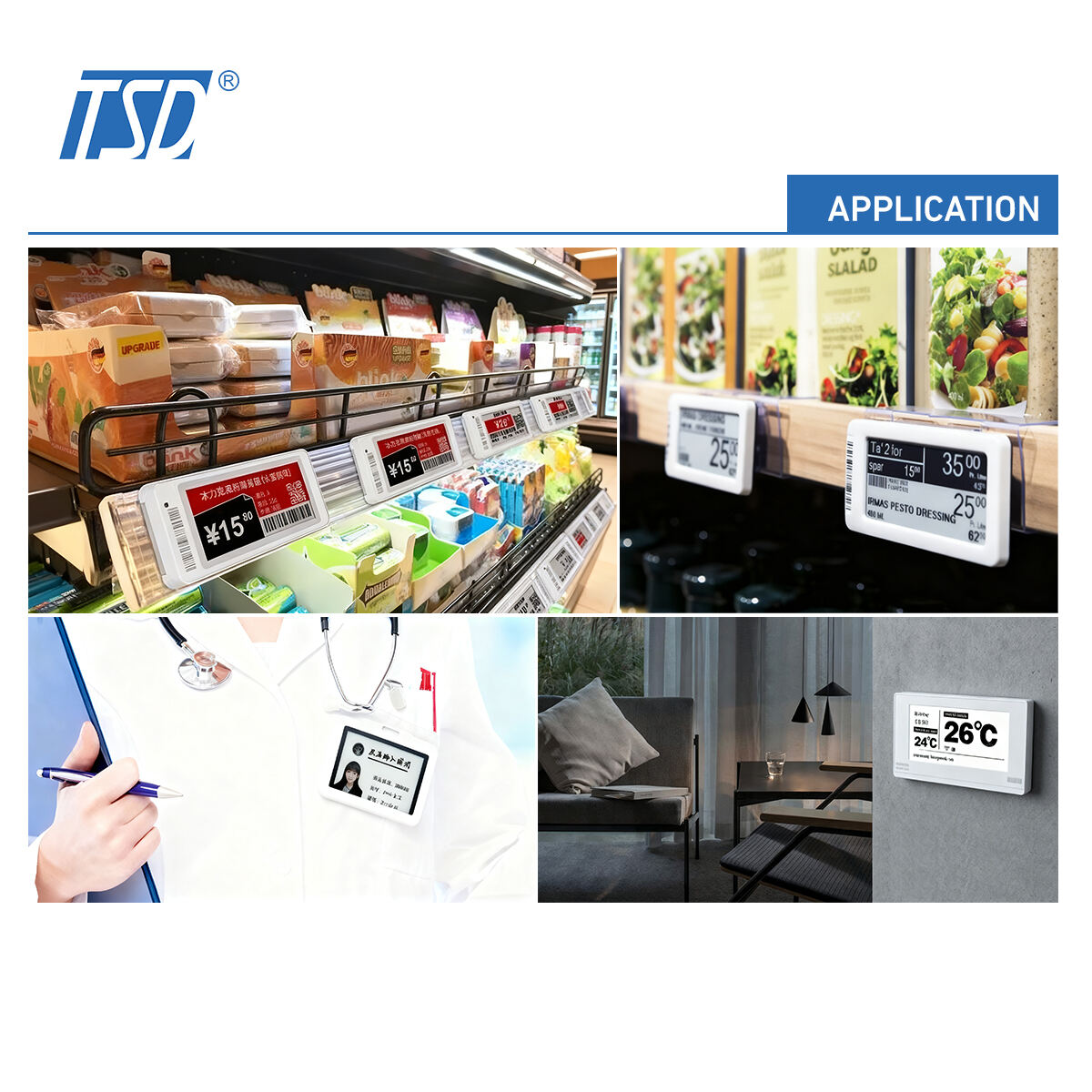

TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

Brand:

TSD

Spu:

TSE0370D02K-BW

Appurtenance:

37 inch 240x416 electrophoretic display amepd electronic shelf label e ink display-1

Overview
Related Products


3.7 inch 240x416 Electrophoretic Display AMEPD Electronic Shelf Label E ink Display

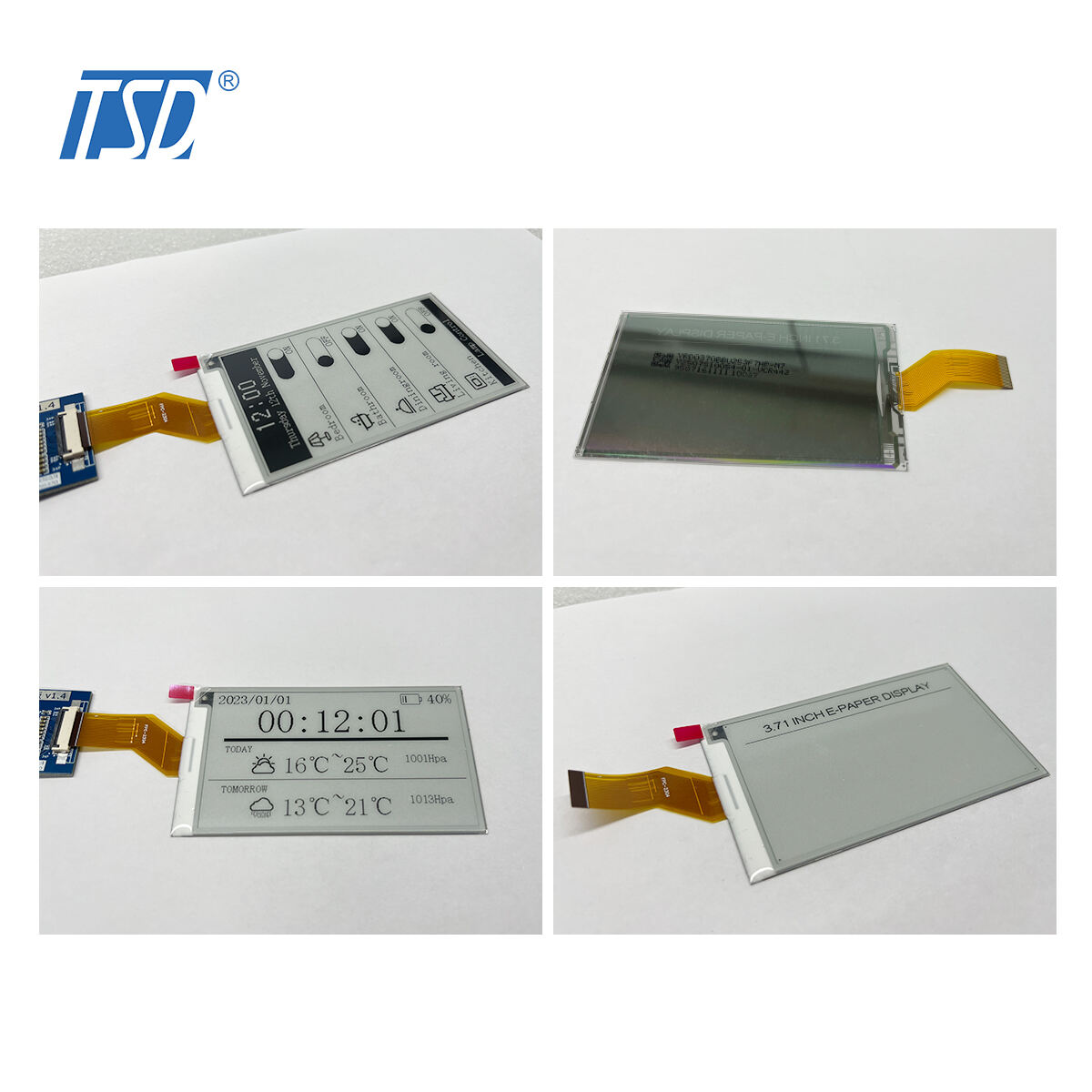

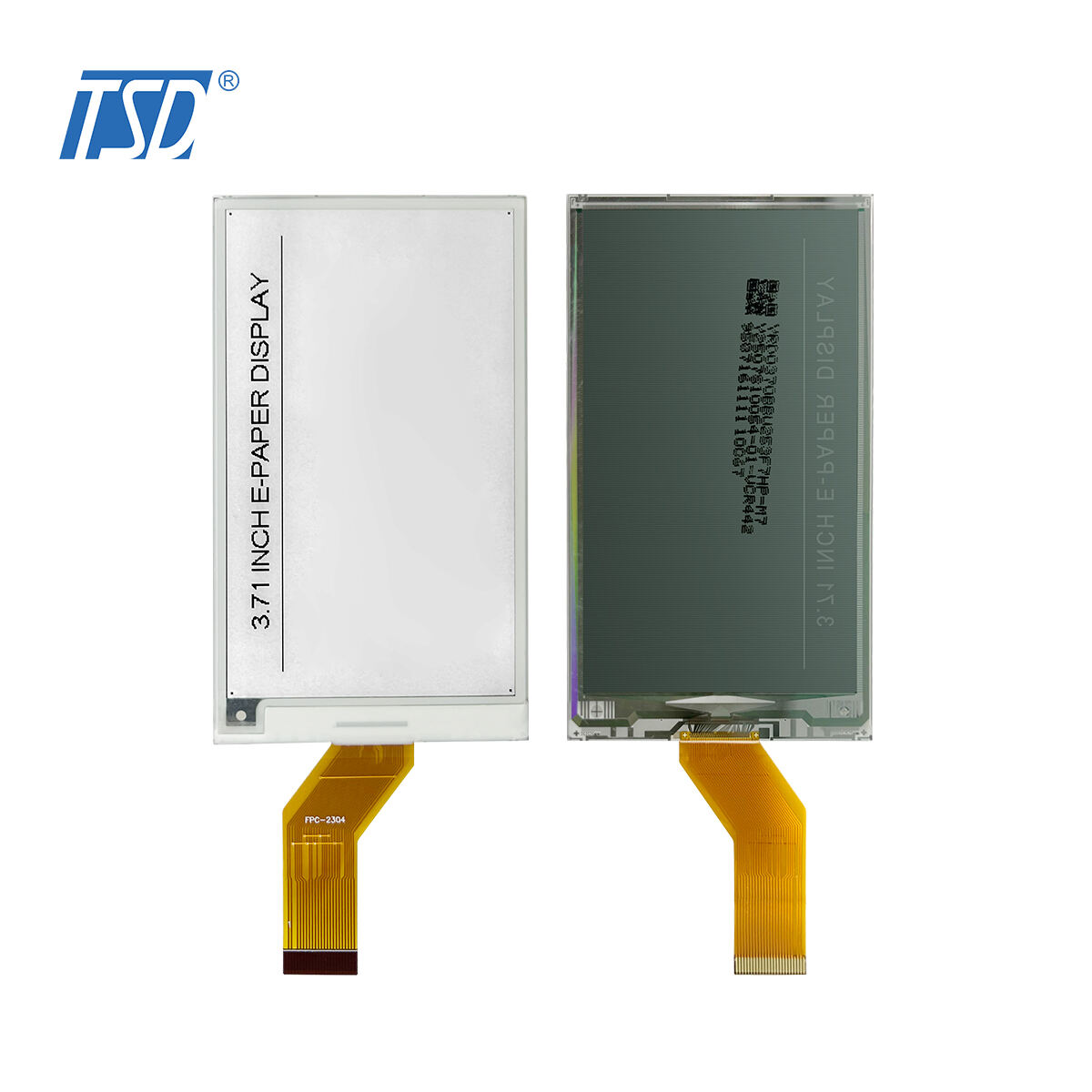

TSE0370D02K-BW is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display images at 1-bit white and black full display capabilities.The 3.7inch active area contains 240×416 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC,SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

Features

◆240×416 pixels display

◆High contrast High reflectance

◆Ultra wide viewing angle Ultra low power consumption

◆Pure reflective mode

◆Bi-stable display

◆Commercial temperature range

◆Landscape portrait modes

◆Hard-coat antiglare display surface

◆Ultra Low current deep sleep mode

◆On chip display RAM

◆Waveform can stored in On-chip OTP or written by MCU

◆Serial peripheral interface available

◆On-chip oscillator

◆On-chip booster and regulator control for generating VCOM, Gate and Source driving

voltage

◆I2C signal master interface to read external temperature sensor

◆Support partial update mode

◆Built-in temperature sensor

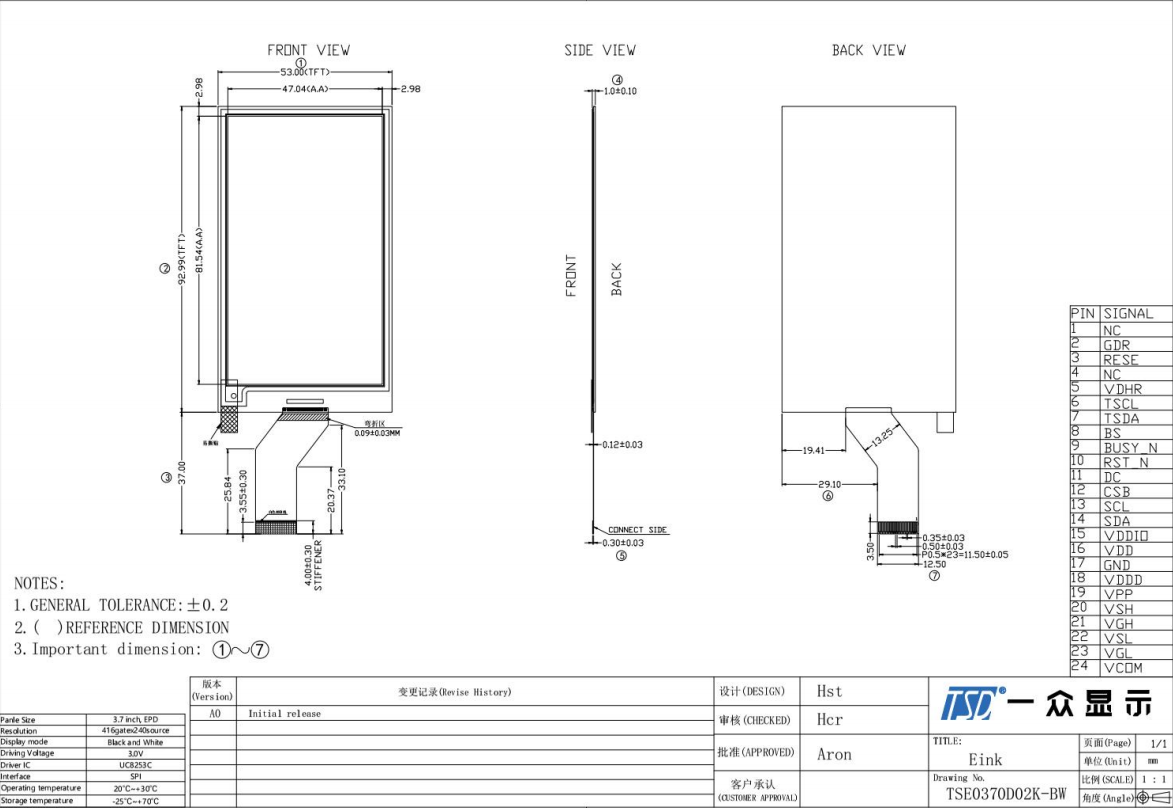

Parameter	Specifications	Unit	Remark
Screen Size	3.7	Inch
Display Resolution	240(H)×416(V)	Pixel	Dpi:130
Active Area	47.04(H)×81.54(V)	mm
Pixel Pitch	0.196×0.196	mm
Pixel Configuration	Square
Outline Dimension	53(H)×92.99 (V) ×1.0(D)	mm
Weight	8.88±0.5	g
