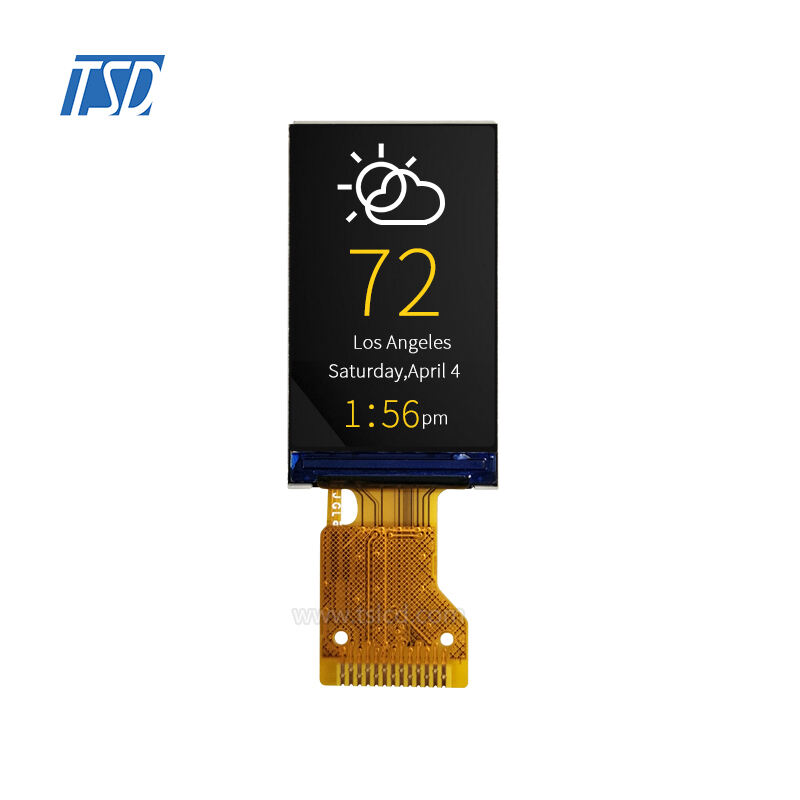

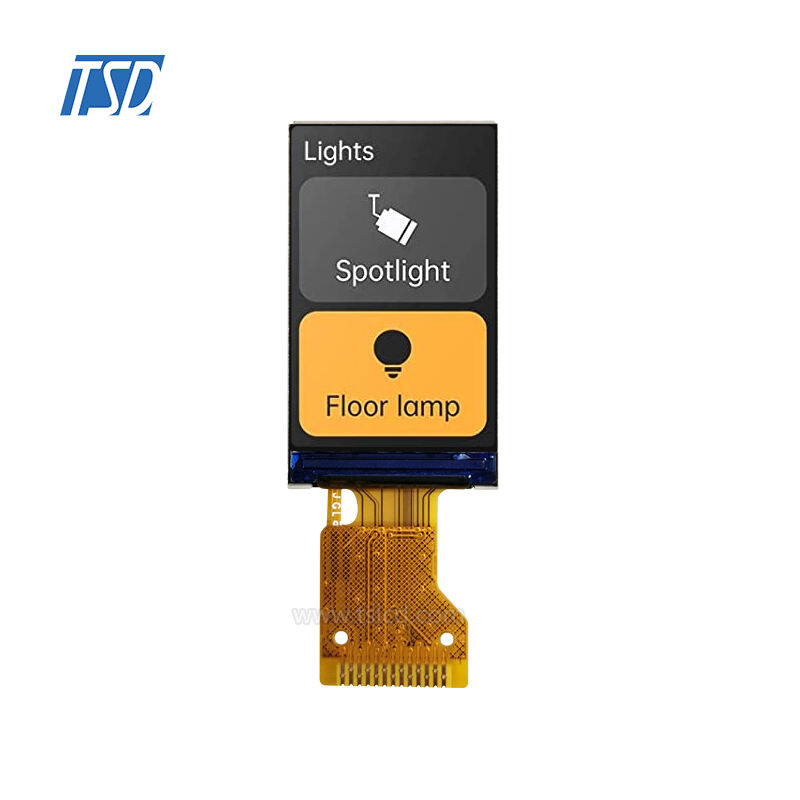

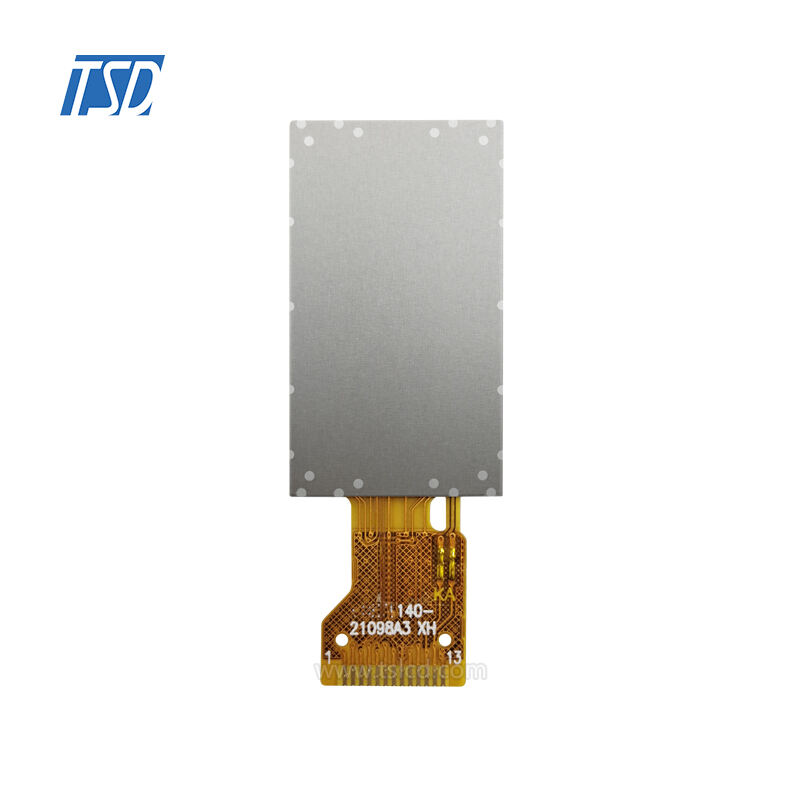

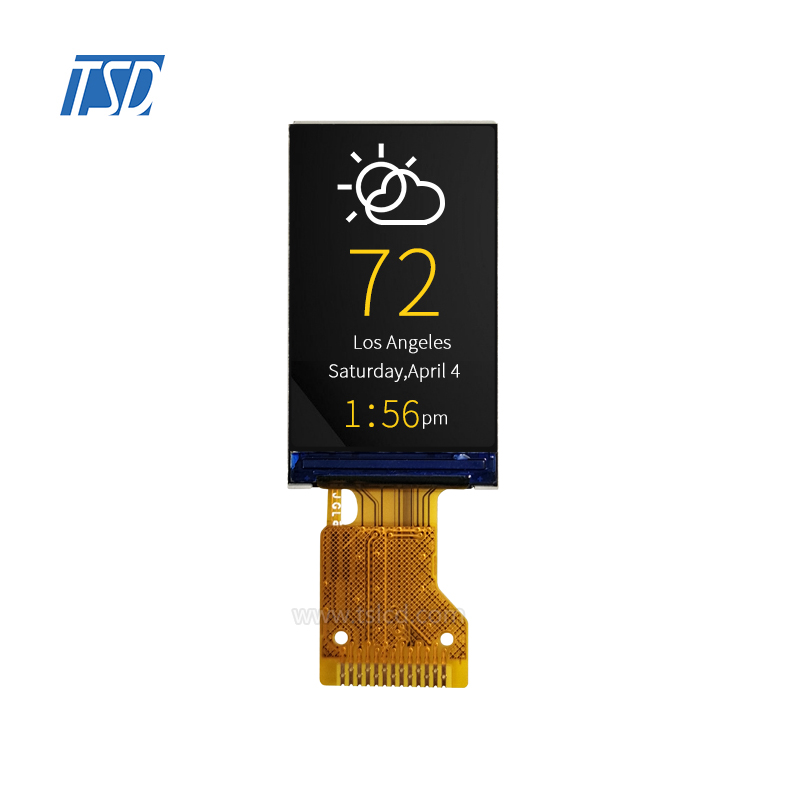

TSD 1.14'' 1.14 Inch 135x240 Resolution SPI Interface ST7789V2-G4-A IPS TFT LCD Display Module
Practical application use for 1.14inch TSD on-board display module 0.56inch TSD on-board display module behind the car for car in-car Spaces. The most critical driving info is clearly displayed with 135×240 resolution. Signal Interface is SPI, which is stable, ST7789V3-G6 driver chip and to ensure that display smooth. IPS TFT LCD technology is another powerful technology that enables high color reproduction and a wide viewing Angle for the screen. It may be small, but a clear and informative display is certainly enough for the driver.
| Size(inch) | 1.14 |
| Part number | TST011402A |
| Resolution | 135xRGBx240 |

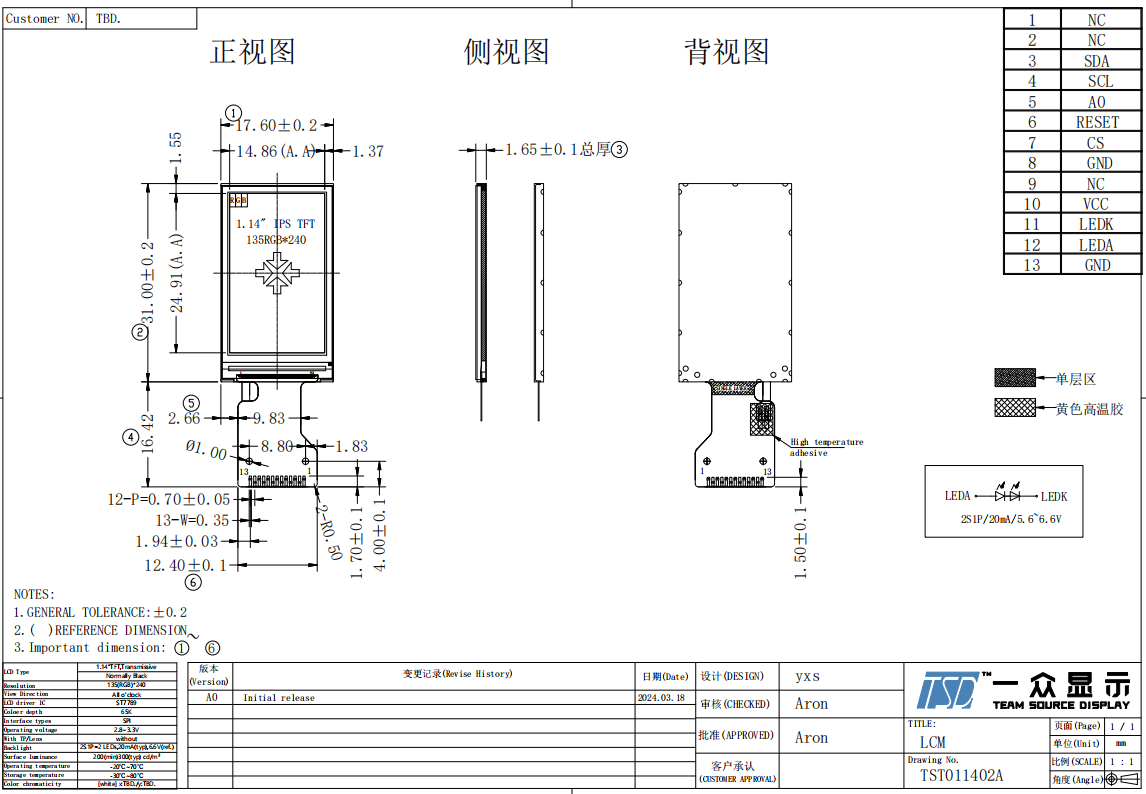

| Outline (mm) | 17.6x31x1.56 |
| Active Area(mm) | 14.86x24.91 |
| Viewing Angle | IPS |
| Interface | SPI |
| Brightness(nit) | 300 |
| Driver IC | ST7789V2-G4-A |
| Touch Option | No |
Brand:
TSD
Spu:
TST011402A
Appurtenance:
- Overview
- Related Products
TSD 1.14'' 1.14 Inch 135x240 Resolution SPI Interface ST7789V2-G4-A IPS TFT LCD Display Module |
||
Model Number |
TST011402A |
|
Display Type |
1.14 Inch TFT LCD Display Module |
|
Resolution |
135xRGBx240 |
|
Outline Size |
17.6x31x1.56 mm |
|
Active Size |
14.86x24.91 mm |
|
View Direction |
All |
|
Interface |
SPI |
|
Surface Lumiannce |
300(nits) |
|
Driver IC |
ST7789V2-G4-A |
|
Operating Temperature |
-20--+70/-30--+85(℃) |
|
Storage Temperature |
-30--+80/-40--+90(℃) |
|
Brand |
TSD |
|
Custom Service |
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
|
Have any customize requirements, please feel free to contact us.
