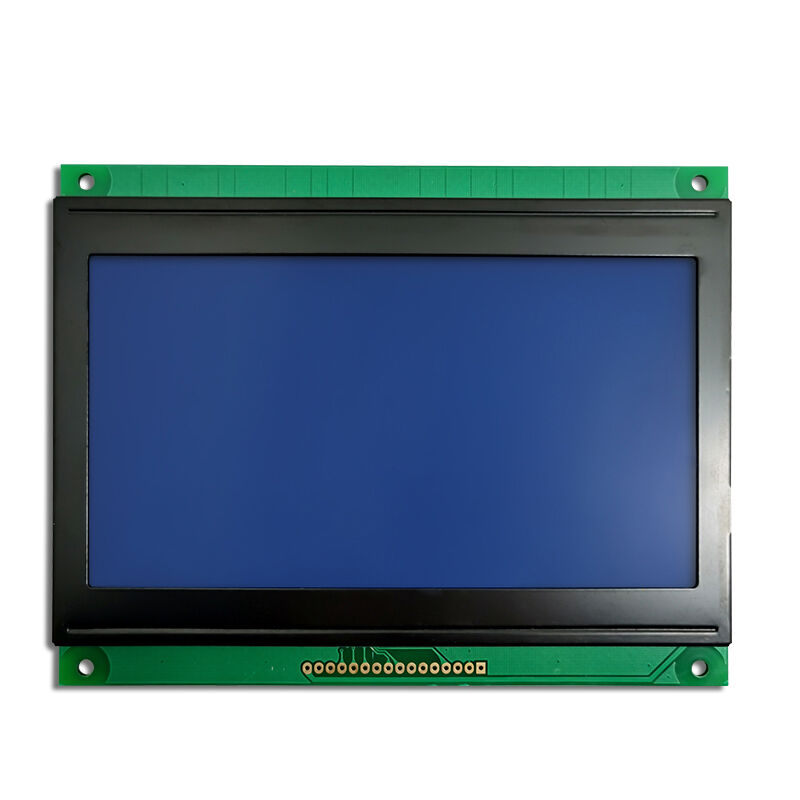

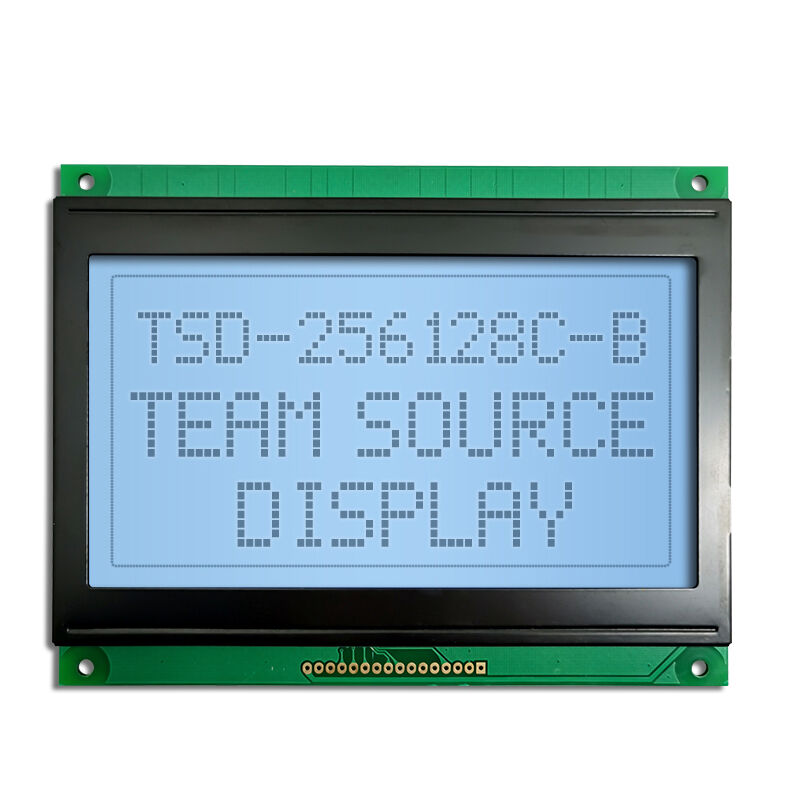

256x128 COB STN-Blue Graphic Display 5v 256*128 256128 Monochrome Display Modules
| Part number | TSM256128C-B |
| Dots Resolution | 256x128 |
| Outline (mm) | 147x116x14.6 |
| View area (mm) | 127x70 |
| Active area (mm) | 120x60.12 |
| Voltage | 5V |
| View Direction | 6:00 |
| IC | RB0086 |
| Display Mode | STN -Blue |
Brand:
TSD
Spu:
TSM256128C-B
Appurtenance:
- Overview
- Related Products
256x128 COB STN-Blue Graphic Display 5v 256*128 256128 Monochrome Display Modules
| Part number | TSM256128C-B |
| Dots Resolution | 256x128 |
| Outline (mm) | 147x116x14.6 |
| View area (mm) | 127x70 |
| Active area (mm) | 120x60.12 |
| Voltage | 5V |
| View Direction | 6:00 |
| IC | RB0086 |
| Display Mode | STN -Blue |
Have any customize requirements, please feel free to contact us.
TSD-Provide Best Products with Best Services.
