10.1'' 10.1 Inch 1280x800 IPS Screen TFT LCD Display Capacitive Touch Panel LVDS Interface LCD Modules
| LCD Type | a-Si TFT,Transmissive,Normally black |
| LCD Size | 10.1 |
| Resolution (W x H) | 1280x (RGB) × 800 |

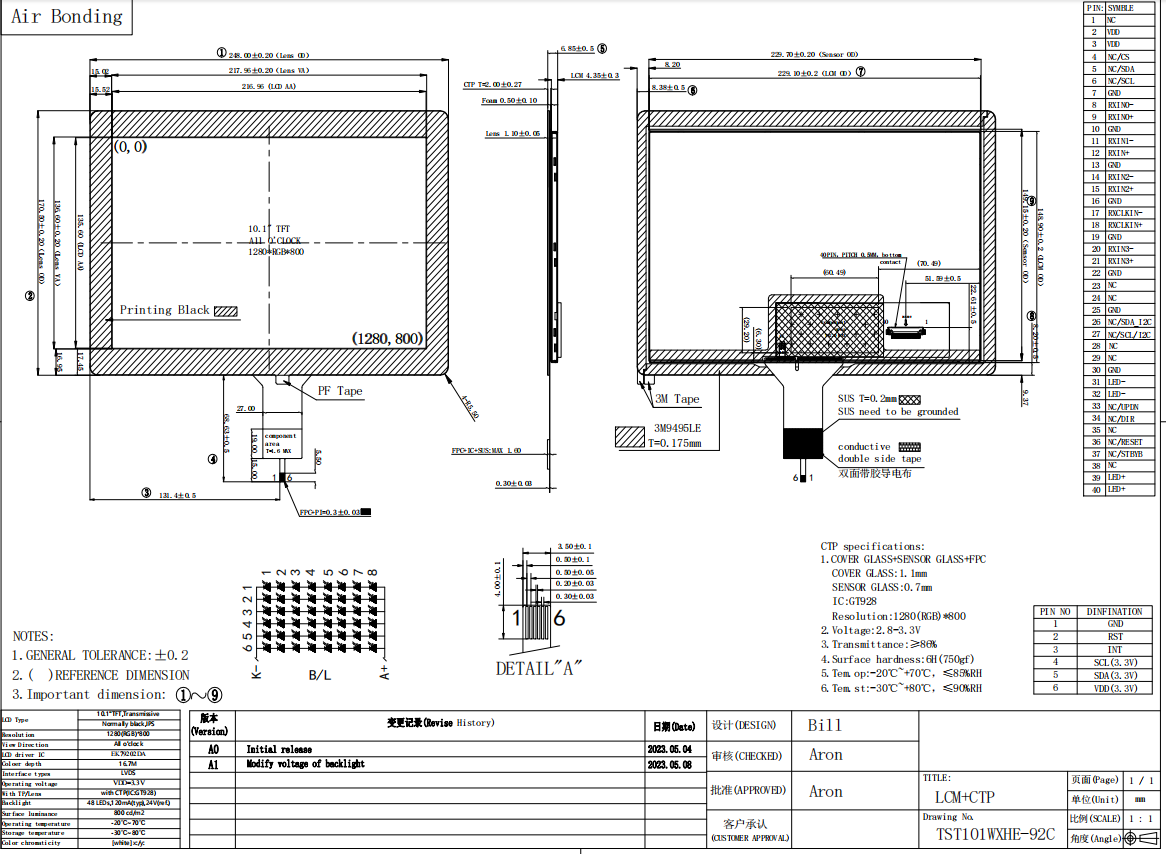

| Outline size | 248.0(H) x 170.5(V) x 6.85(T) |
| Active Area | 216.96 (H) x 135.6( V) |
| Pixel Pitch | 0.1695(H)x0.1695(V) |
| Viewing Direction | ALL o'clock |
| Color Depth | 16.7M |
| Pixel Arrangement | RGB-stripe |
| Backlight Type | LED |
| Surface Luminance | 800 |
| LCD Driver IC | EK79202B |
| Interface Type | LVDS |
| With/Without TP or Lens | With CTP(IC:GT928) |
Brand:
TSD
Spu:
TST101WXHE-92C
Appurtenance:
- Overview
- Related Products
10.1'' 10.1 Inch 1280x800 IPS Screen TFT LCD Display Capacitive Touch Panel LVDS Interface LCD Modules

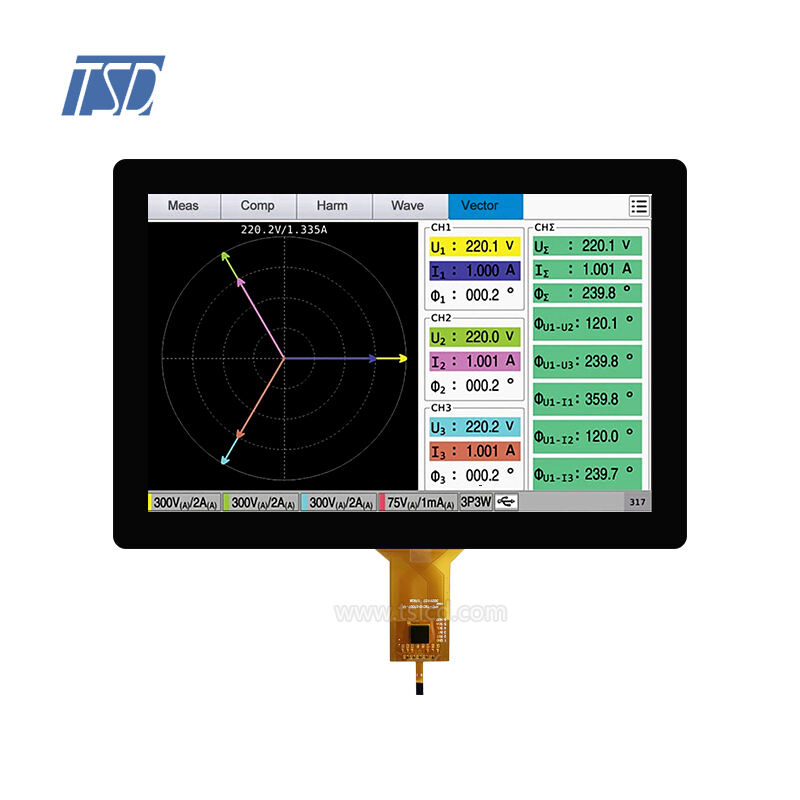

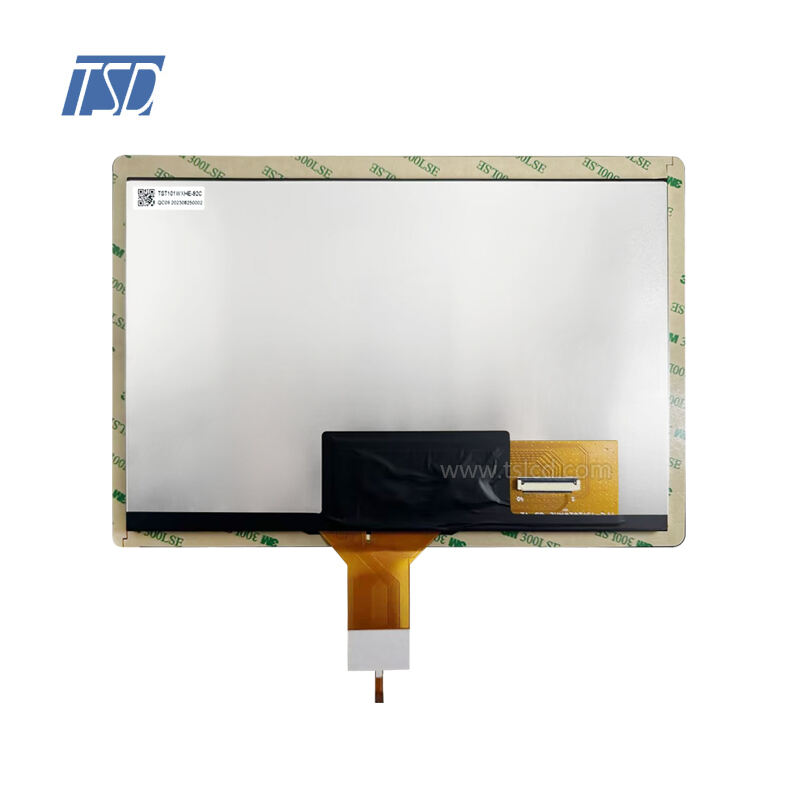

TST101WXHE-92C is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a Backlightt, and a Capacitive touch screen.This TFT LCD has a 10.1 (15:9) inch diagonally measured active display area with WXVGA (1280 horizontal by 800 vertical pixel) resolution.
| LCD Type | a-Si TFT,Transmissive,Normally black |
| LCD Size | 10.1 |
| Resolution (W x H) | 1280x (RGB) × 800 |
| Outline size | 248.0(H) x 170.5(V) x 6.85(T) |
| Active Area | 216.96 (H) x 135.6( V) |
| Pixel Pitch | 0.1695(H)x0.1695(V) |
| Viewing Direction | ALL o'clock |
| Color Depth | 16.7M |
| Pixel Arrangement | RGB-stripe |
| Backlight Type | LED |
| Surface Luminance | 800 |
| LCD Driver IC | EK79202B |
| Interface Type | LVDS |
| With/Without TP or Lens | With CTP(IC:GT928) |
Have any customize requirements, please feel free to contact us.
