1.54" 200×200 Dots EPD Display Panel SSD1681 Drive IC 0.135mm Pixel Size ROHS Compliant Electronic Ink Screen Replacement
This 1.54" E-Ink Display Module integrates the SSD1681 driver IC for seamless SPI interface communication. With a resolution of 200 (Source) × 200 (Gate) and a fine pixel pitch of 0.135mm × 0.135mm, it ensures crisp text and sharp graphics.
- Overview
- Related Products
1. More than 20 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people- oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
| About this product |

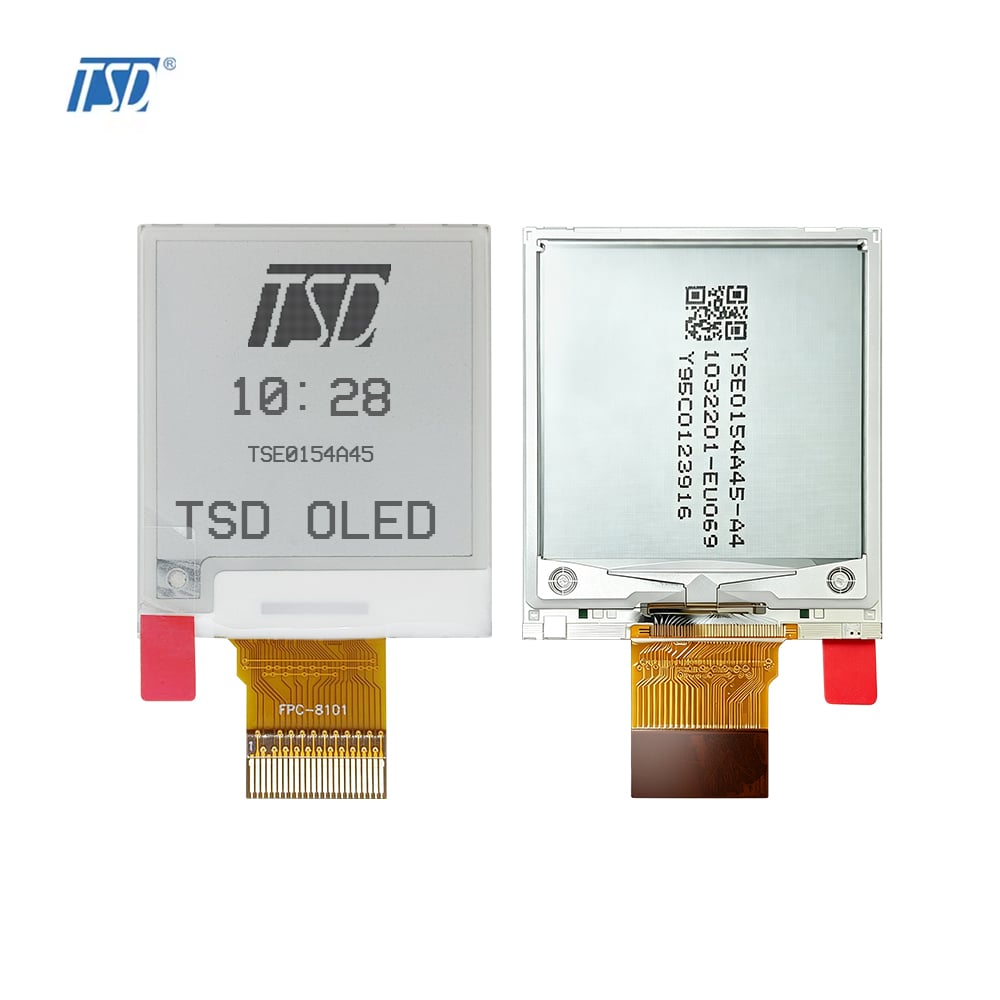

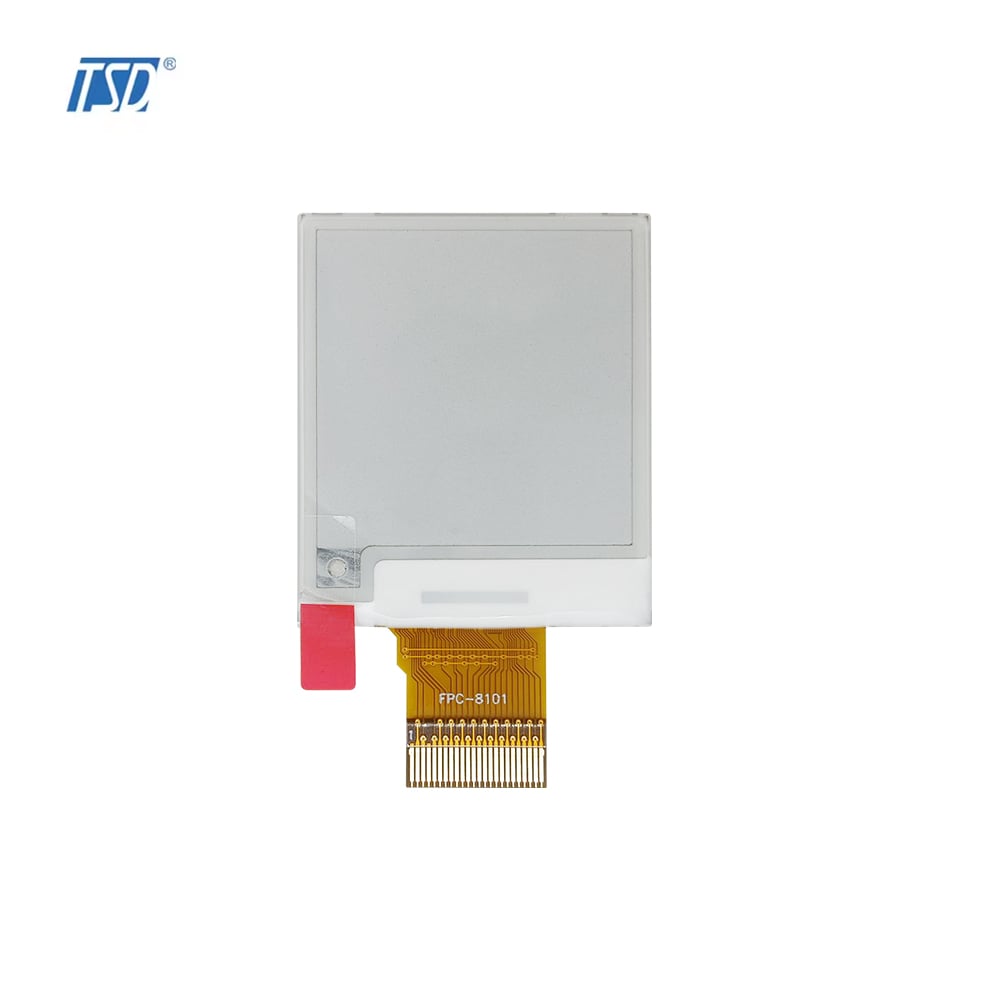

This 1.54-inch EPD (Electronic Paper Display) module utilizes E-Ink technology to deliver a paper-like reading experience with ultra-low power consumption. Featuring a 200×200 high-resolution screen and driven by the reliable SSD1681 controller, this display retains images even when power is off, making it ideal for battery-powered devices.
| Model Number | TSE0154A45 |
| LCD Type | 1.54 inch |
Display Resolution |
200(H)×200(V) Pixel |
Active Area |
27.00 (H)×27.00 (V) mm |
| Pixel Pitch | 0.135×0.135 mm |
Pixel Configuration |
Square |

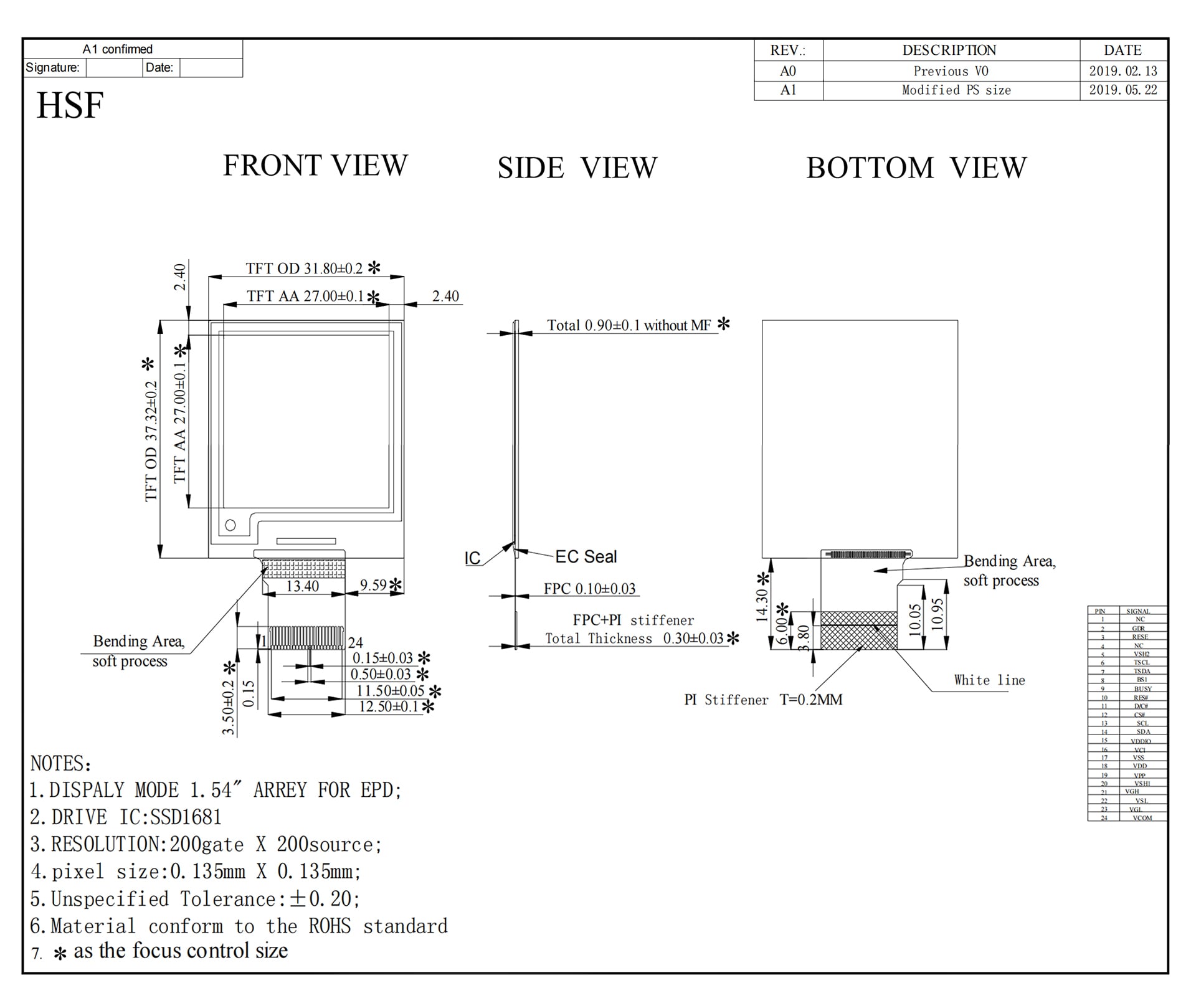

Outline Dimension |
37.32(H)×31.80(V) ×0.9(D) mm |
Weight |
2.1±0.2 g |
| About US |
 |
Who is TSD? TEAM SOURCE DISPLAY (TSD) was established in 2004.
Head office located in Shenzhen,
factory is in Dongguan.
TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development,
single-chip production and sales.
|
Our Factory
◆ Operates Class 1000 & 100 cleanrooms with auto humidity control and full ESD grounding. Fully imported automation ensures high-precision, end-to-end production for consistent, reliable products. our entire workshop floor is equipped with a dedicated anti-static (ESD) grounding system to ensure product safety.
◆ Backed by advanced equipment, stringent quality control systems, and continuous technological innovation, our products are widely adopted in consumer electronics, industrial control, smart home applications, and beyond, earning extensive recognition and trust from clients worldwide.
◆ Furthermore, our seasoned R&D team stands ready to provide rapid and efficient new product development support, offering comprehensive hardware and software design solutions tailored to customer needs.
Exhibition
 |
 |
 |
|||
|
|
|
 |
 |
 |
|||
|
|
|
 |
 |
 |
|||
|
|
|
Our Certificate
The company has maintained its ISO 9001 and ISO 14001 certifications since 2017–2018, and further expanded its credentials by securing IATF 16949 and ISO 13485 between 2019 and 2020.
| Product Applications |

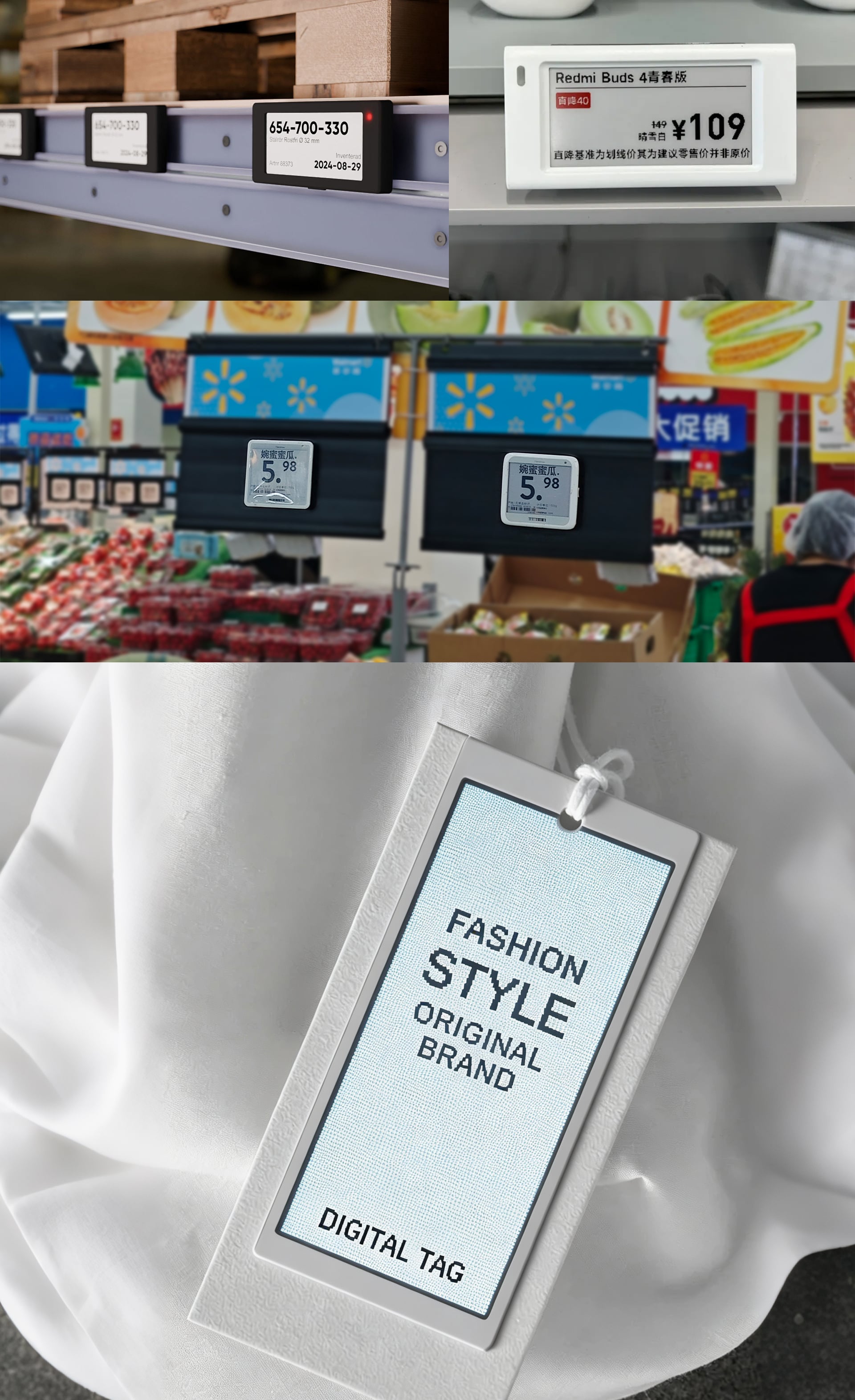

Target Applications:
Retail & POS: Create dynamic pricing tags that reduce paper waste and labor costs.
Healthcare: Develop patient wearables that are easy to read in any light.

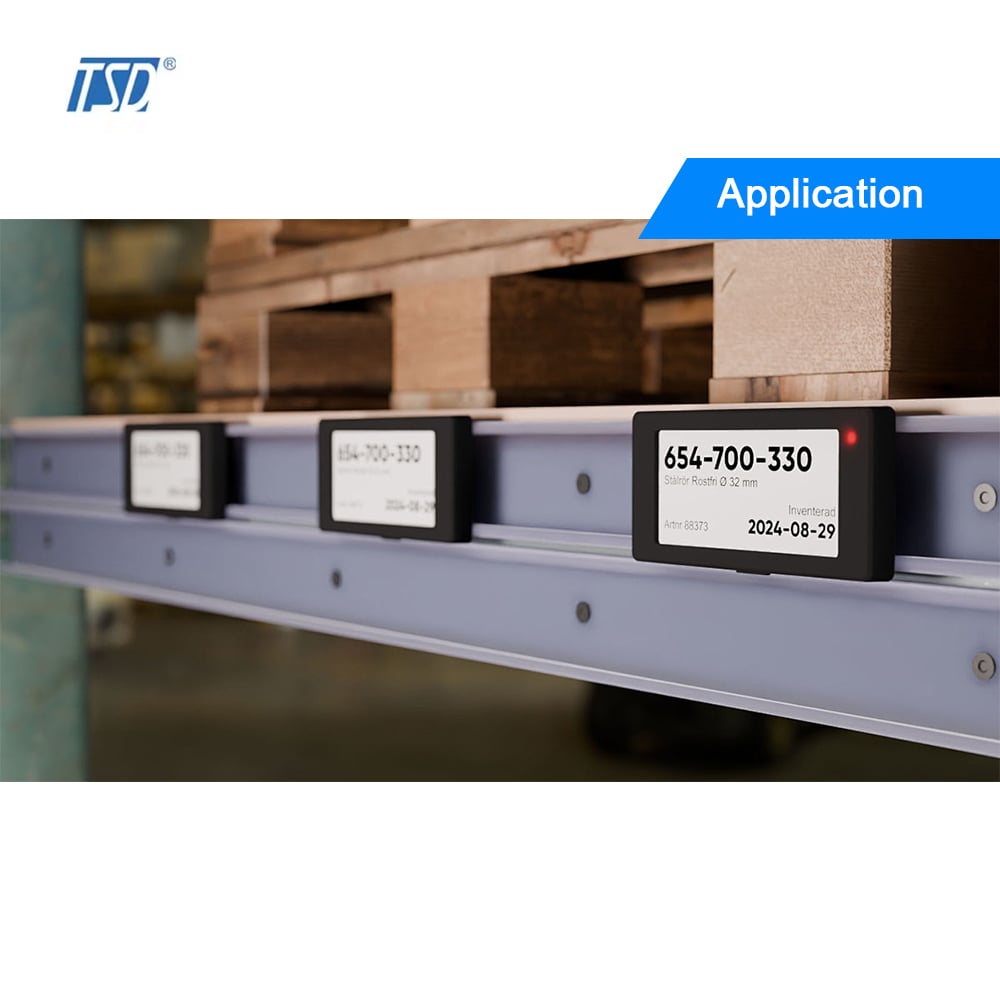

Logistics: Enhance tracking efficiency with labels that remain legible in harsh outdoor environments.
Consumer Electronics: Build next-gen e-readers or smart badges with a sleek, modern look.
| Packing & Delivery |
| FAQ |
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
Have any customize requirements, please feel free to contact us.
