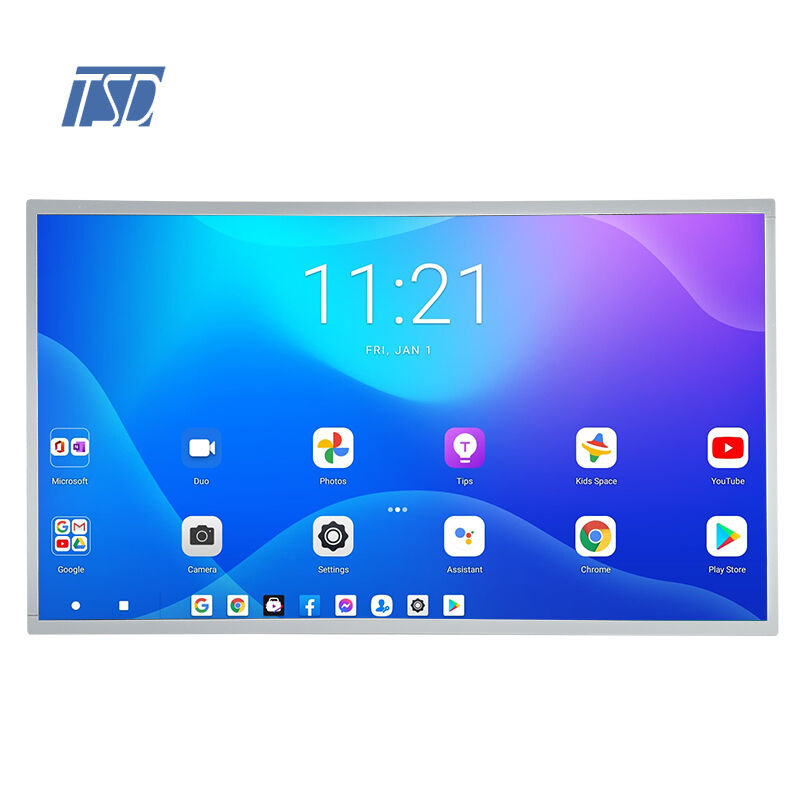

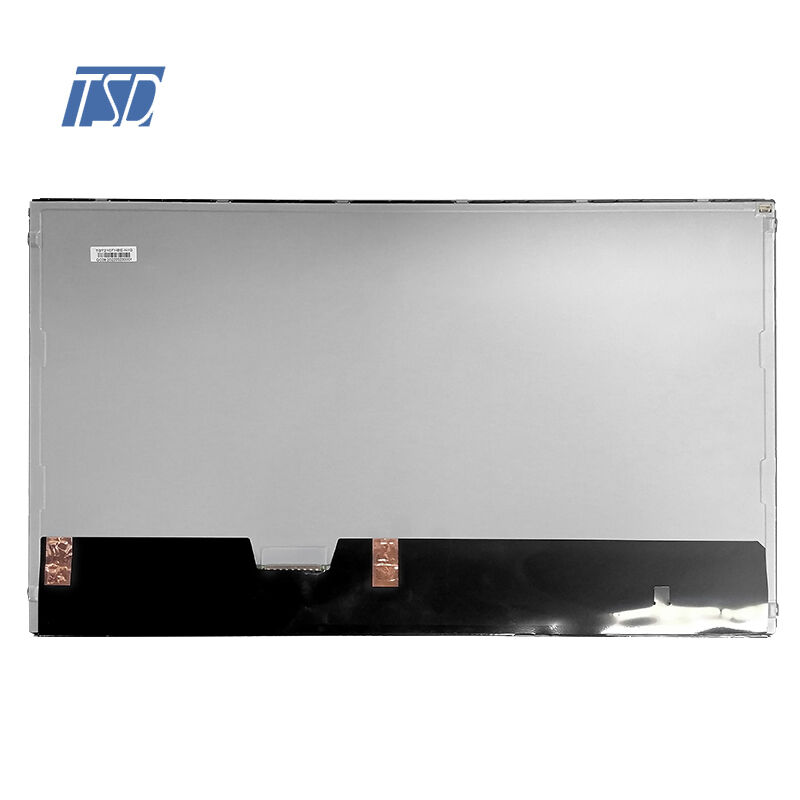

21.5 inch 1920*1080 FHD Anti-Glare LCD Screen LVDS Interface 21.5'' TFT LCD Display Modules
Reliable HKC-Based Open Cell Solution: 1920x1080 FHD Display with Integrated Driver Board & Backlight.
- Overview
- Related Products
1. More than 20 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people- oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
| About this product |

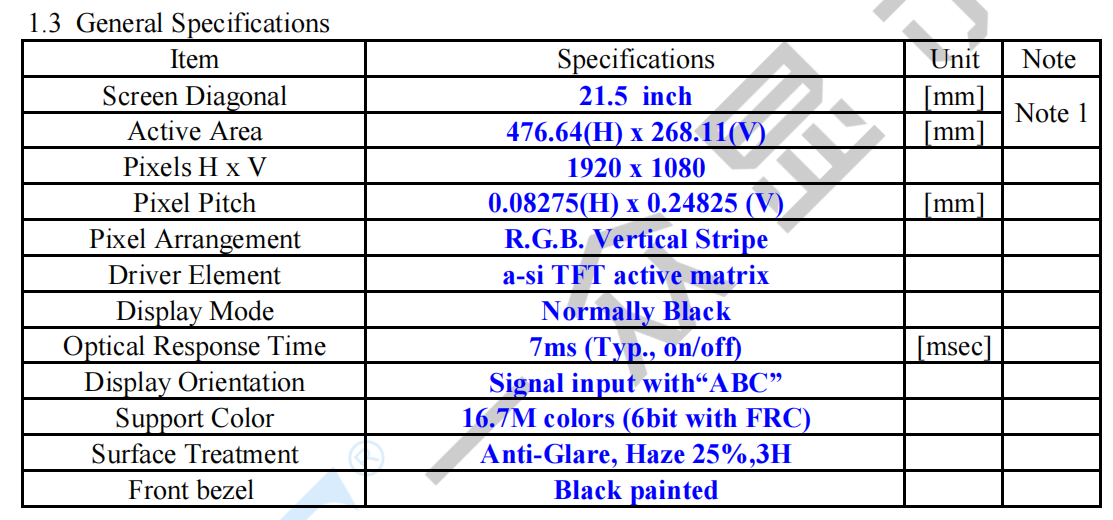

● Model: TST215FHHT-DC1
● Panel Type: TFT LCD Open Cell (HKC Brand)
● Resolution: 1920 x 1080 (FHD), 16.7M Colors (8-bit)

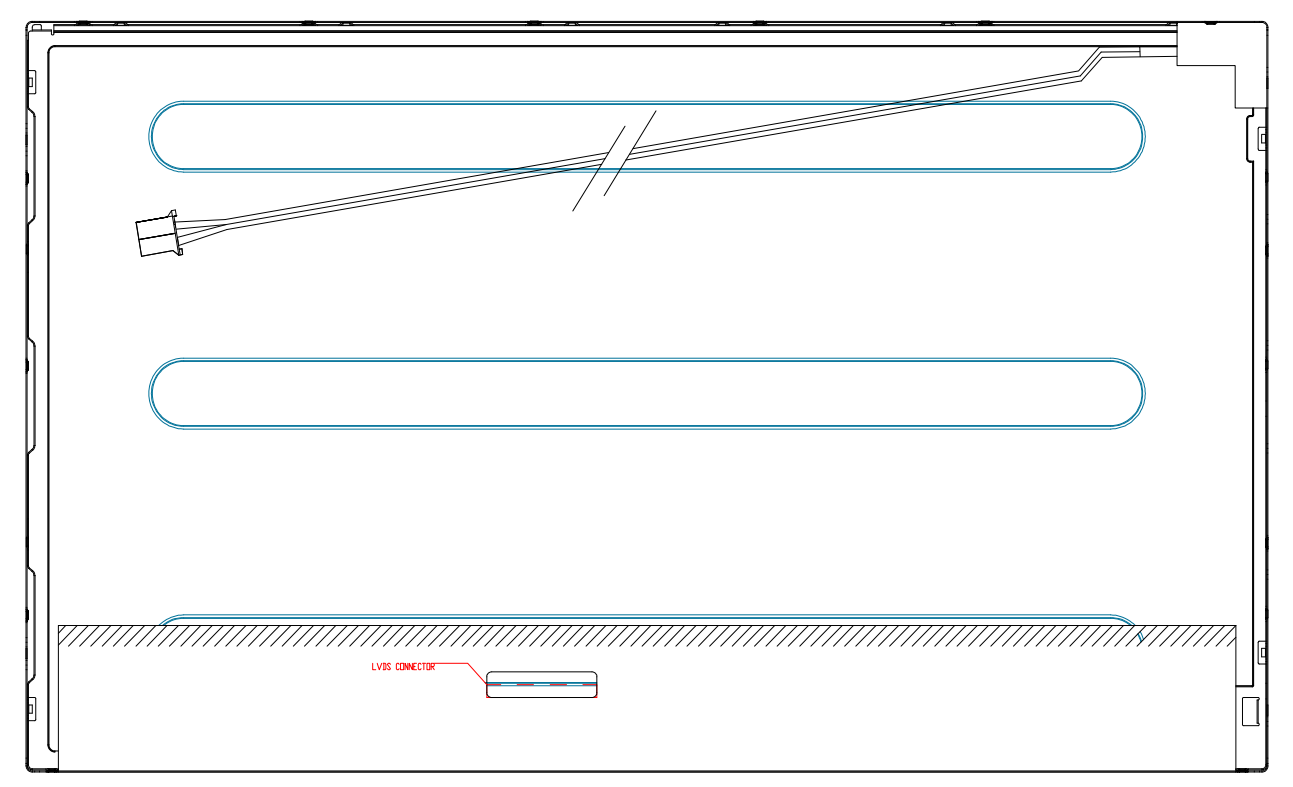

● Interface: 30-pin, 2-channel LVDS
● Features: Anti-Glare Surface, Built-in Driver IC & Backlight Unit
| Display Size | 21.5 inch |
| Supplier Type | Manufacturer |
| Brand Name | TSD |
| Backlight Type | Led |
| Resolution | 1920X1080 |
| Brightness | 350 nits |
| Operating Temperature | -20~70℃ |
| Display Type | TFT |

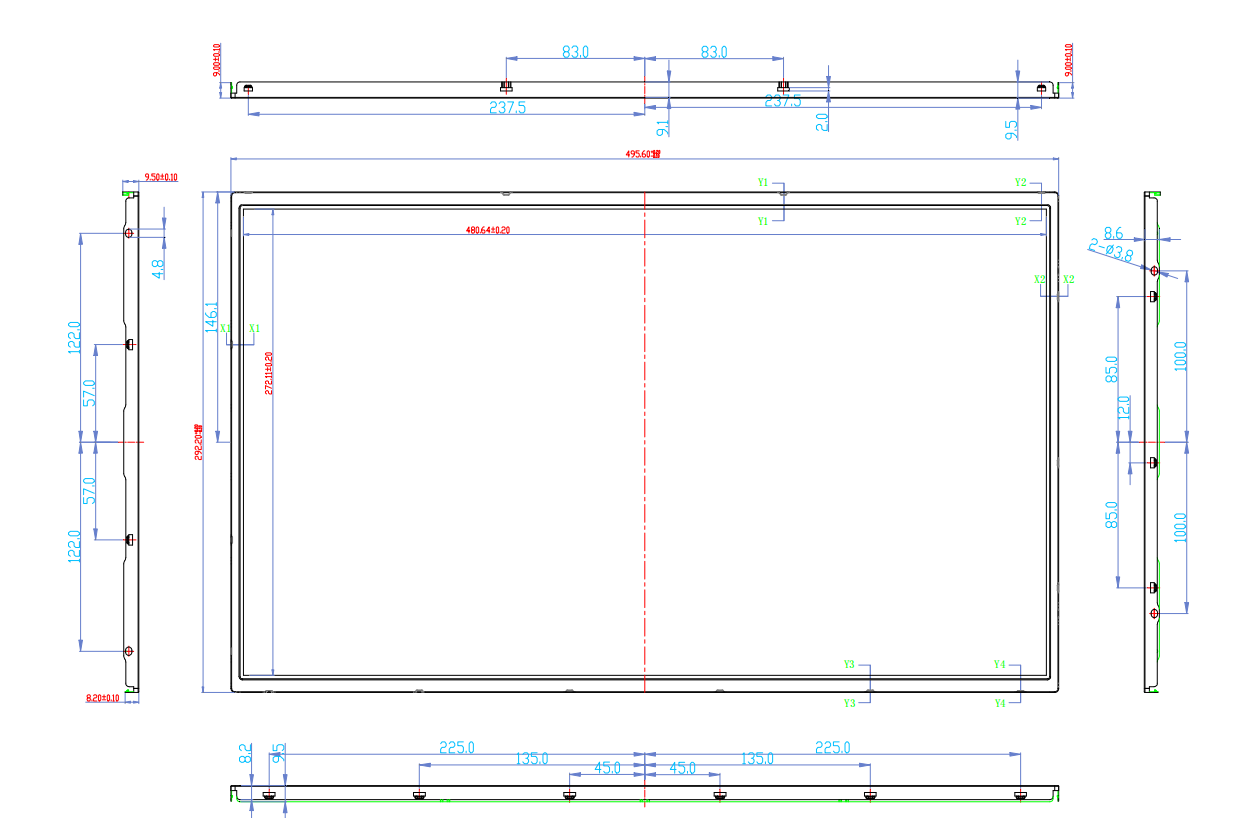

| Screen Size | 476.64(H) x 268.11(V) |
| Communication Interface | LVDS |
| About US |
 |
Who is TSD? TEAM SOURCE DISPLAY (TSD) was established in 2004.
Head office located in Shenzhen,
factory is in Dongguan.
TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development,
single-chip production and sales.
|
Our Factory
Exhibition
 |
 |
 |
 |
||||
|
|
|
|
 |
 |
 |
 |
||||
|
|
|
|
Our Certificate
Certified to ISO 9001 and ISO 14001 from 2017 to 2018, and subsequently achieved IATF 16949 and ISO 13485 certifications between 2019 and 2020.
| Product Applications |
Where can this 21.5" LCD be used?
Looking for a versatile display that performs well in both indoor and semi-outdoor settings? Our TST215FHHT-DC1 is the perfect fit for your next project:
◆ For Industrial HMI: The Anti-Glare treatment ensures operators can read data clearly without eye strain, even under harsh factory lighting.
◆ For Smart Appliances: Integrate into smart refrigerators, home control panels, or elevator displays for a sleek, modern user interface.
◆ For Commercial Displays: With its standard LVDS interface, it is easy to integrate into advertising players, interactive whiteboards, and information kiosks.
From factory floors to smart living rooms, this module offers the durability and clarity your application demands.
| Packing & Delivery |
| FAQ |
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
Have any customize requirements, please feel free to contact us.
