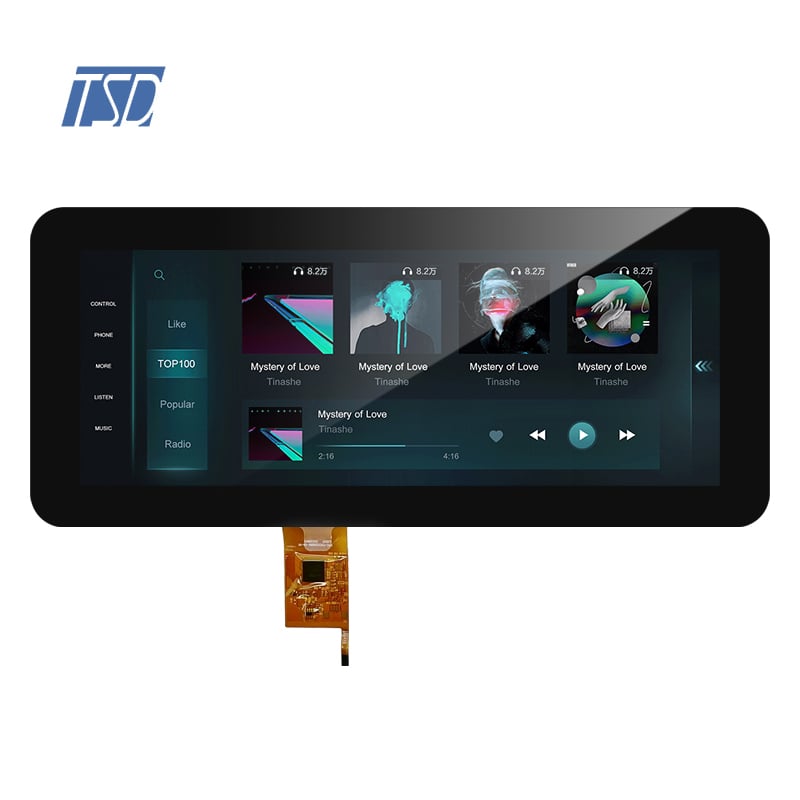

Car Dashboard HDMI Interface 12.3 inch 1920x720 IPS Screen PCAP Touch Panel TFT LCD Display Modules
| LCD Type | a-Si TFT,Transmissive,Normally black.IPS |
| LCD Size | 12.3 |
| Resolution (W x H) | 1920x(RGB)x 720 |
| Outline size | 302.59(H)x 123.57(V)x6.51(T) |
| Active Area | 292.03 (H)x109.51 (V) |
| Pixel Pitch | 0.1521 (H)x0.1521 (V) |
| Viewing Direction | ALL o'clock |
| Color Depth | 16.7M |
| Pixel Arrangement | RGB-stripe |
| Backlight Type | 36 leds,360mA， 27V |
| Luminance | 800~1000 |
| LCD Driver IC | |
| Interface Type | LVDS |
| With/Without TP or Lens | With CTP(C:ILI25 11) |
- Overview
- Related Products
Car Dashboard HDMI Interface 12.3 inch 1920x720 IPS Screen PCAP Touch Panel TFT LCD Display Modules
Product Description
There are numerous highlights in the dashboard display. A 12.3-inch glass TFT LCD panel adopts 1920×720 HD resolution with IPS plane conversion technology providing full clarity and wide-angle view experience. Adopt PCAP projection capacitive touch screen which is sensitive, convenient to operate At the same time, support HDMI interface input, advantageous to connect a kind of device, increase the richness of driving information interaction.

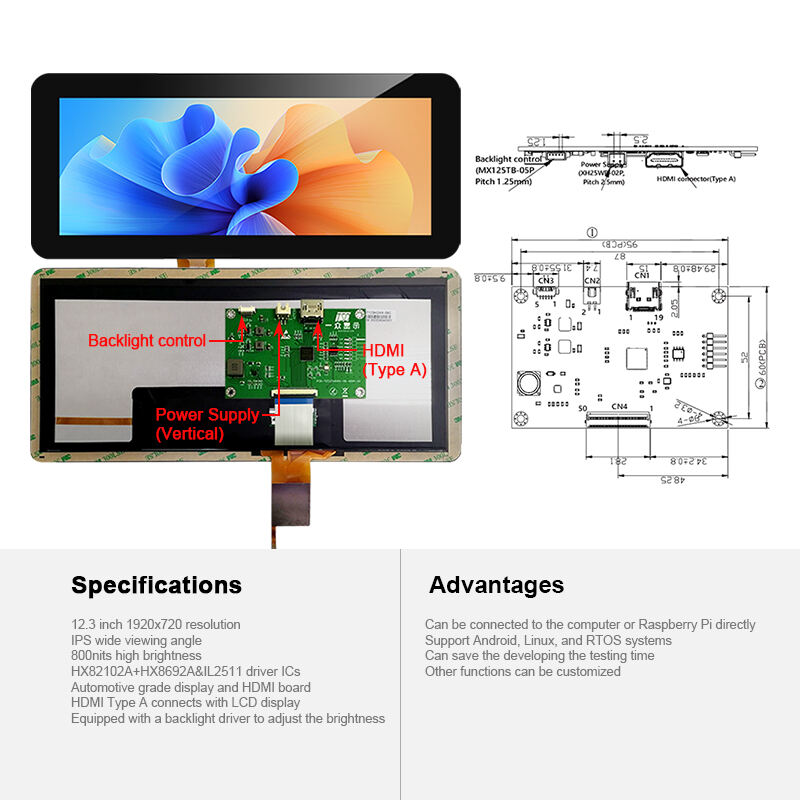

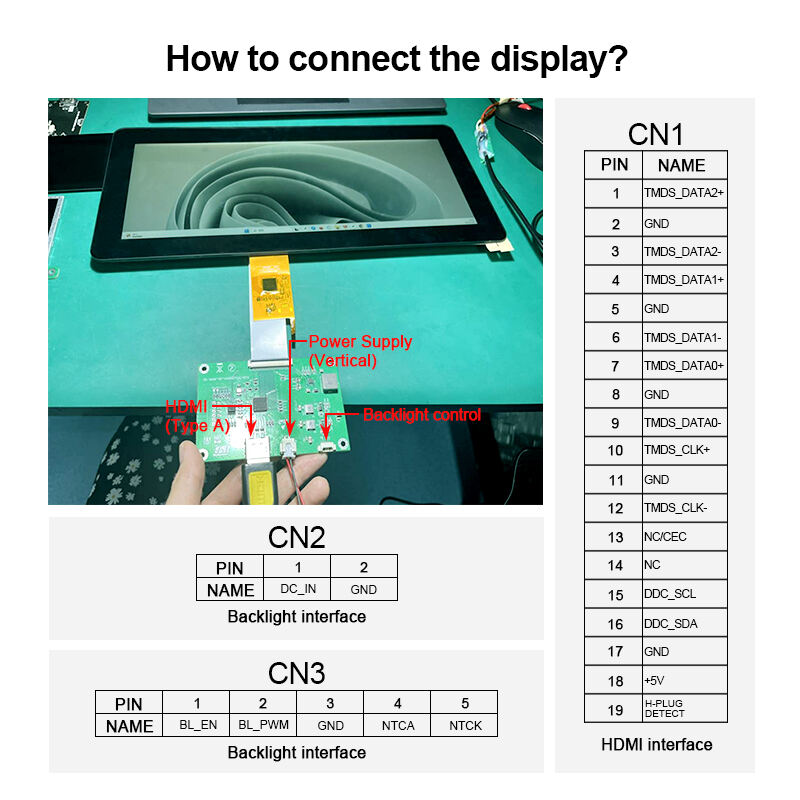

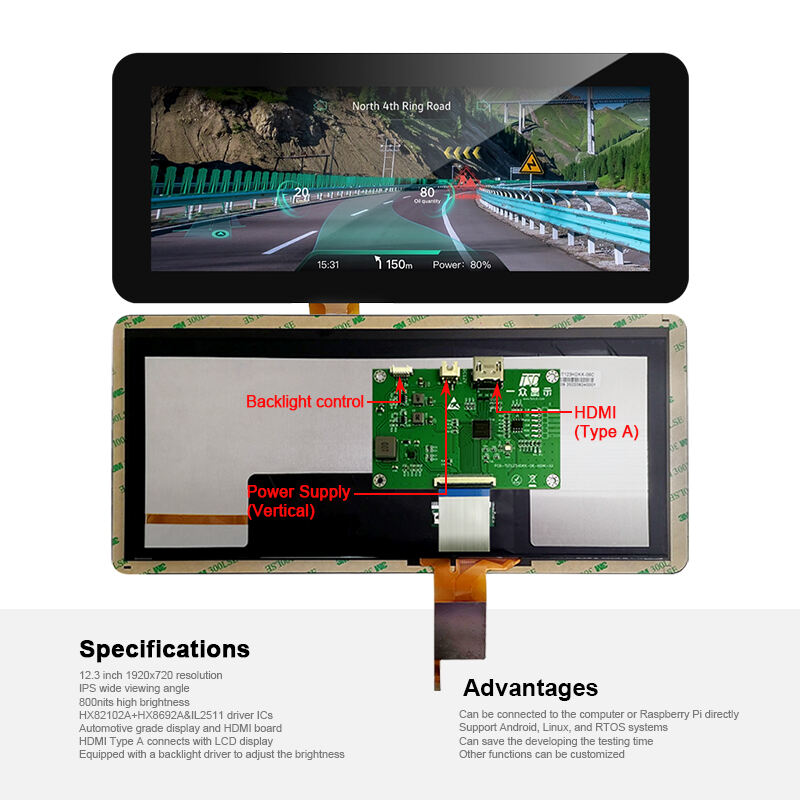

TST123HDKK-06C is a 12.3 inch LCD display consists of 12.3 inch LCD module and capacitive touch panel, which can support HD-MI board to connect to Raspberry Pi. The display type of this LCD display is a-Si TFT, transmissive, normally black. The operating temperature of the TST123HDKK-06C model is -30℃~85℃, and the storage temperature is -40℃~90℃, which is suitable for car dashboard, car navigator.
Product Paramenter
| Type | 12.3 Inch TFT LCD Display |
| Model Number | TST123HDKK-06C |
| Resolution | 1920xRGBx720 |
| Outline mm | 332x149.5x10.61mm |
| AA mm | 292.03x109.51mm |
| Interface | LVDS |
| Luminance | 1000nits |
| Driver IC | / |
| Viewing Direction | All O'clock |
| TP/Lens | With capacitive touch panel |
| LCD Type | Normally black, IPS |
| Operating Temperature | -30℃~85℃ |
| Storage Temperature | -40℃~90℃ |
| Original Place | Dongguan, CN |
| Brand Name | TSD |
| Warranty Period | 1 year |
Supply Ability |
1500000 per month |
Customized |
FPC, CTP/RTP, logo, color , size etc |
Payment |
T/T Paypal, WU, CC etc. |
| Color Depth | 16.7M |
| Size | 12.3 inch |
Product draw
Team Source Display (TSD) is a professional LCD display manufacturer from China with ISO13485, IATF16949, ISO9001 and other certificates. We have been specialized in LCD display industry for more than 18 years.TSD manufacturing and developig 0.96-32 inch color TFT LCD display, capacitive & resistive touch panel, monochrome LCD/LCM display, including TN, HTN, STN, FSTN, COB, COG and segment display etc. and also provide OEM & ODM service.
Product Applications
| Smart home & white goods | thermostat, touch panel, smart coffee machine |
| Wearable device | smart watch, VR glass, translation pen |
| Handheld device | POS, PDA, handheld game consoles, handheld computers |
| Industry product | measuring equipment, control device, programmable controller PLC, touch screen, industrial computer, contactor, thermal relay |
| Medical product | handheld medical device, detectable Devices |
| Automotive product | dashboard, smart GPS, car navigator |
Have any customize requirements, please feel free to contact us.
