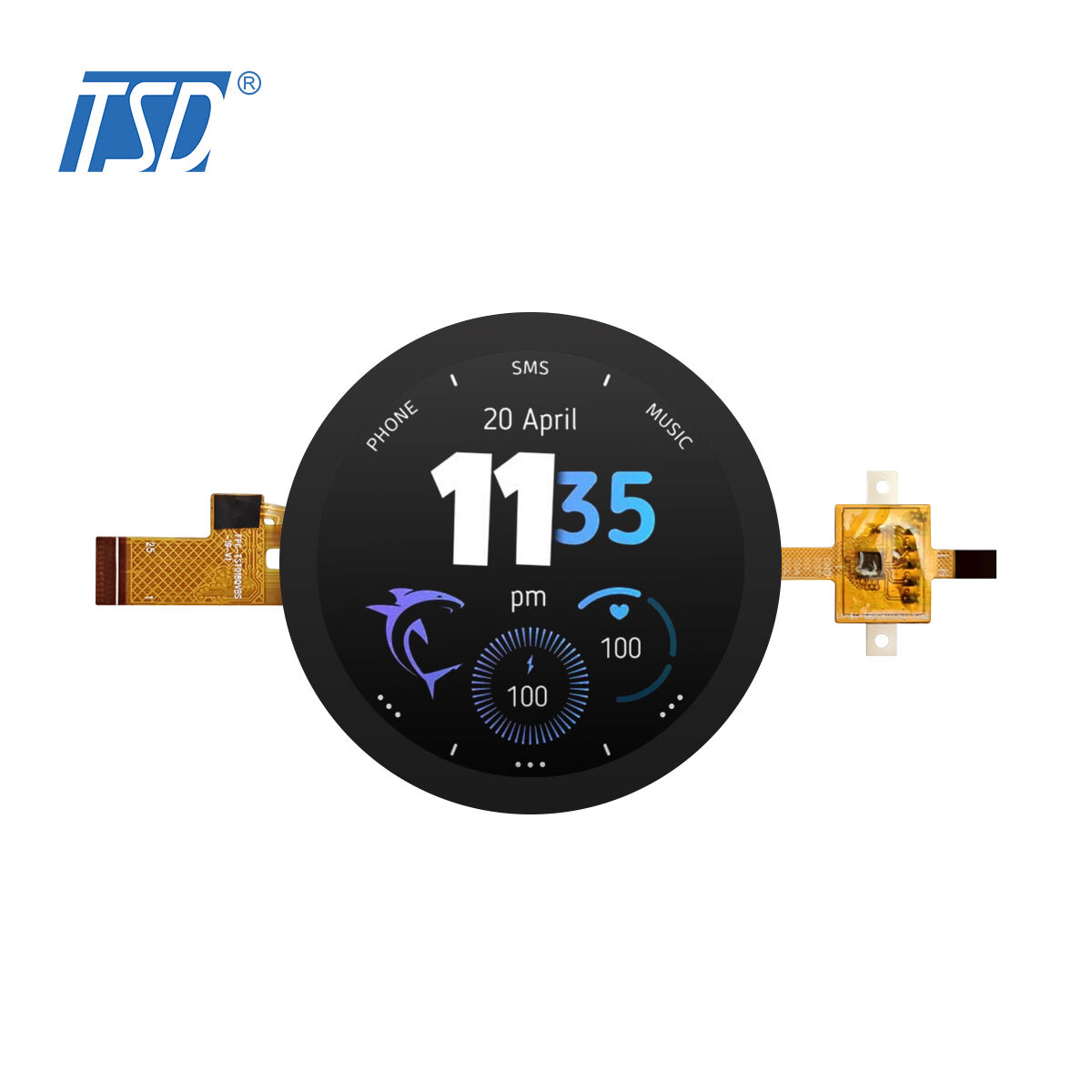

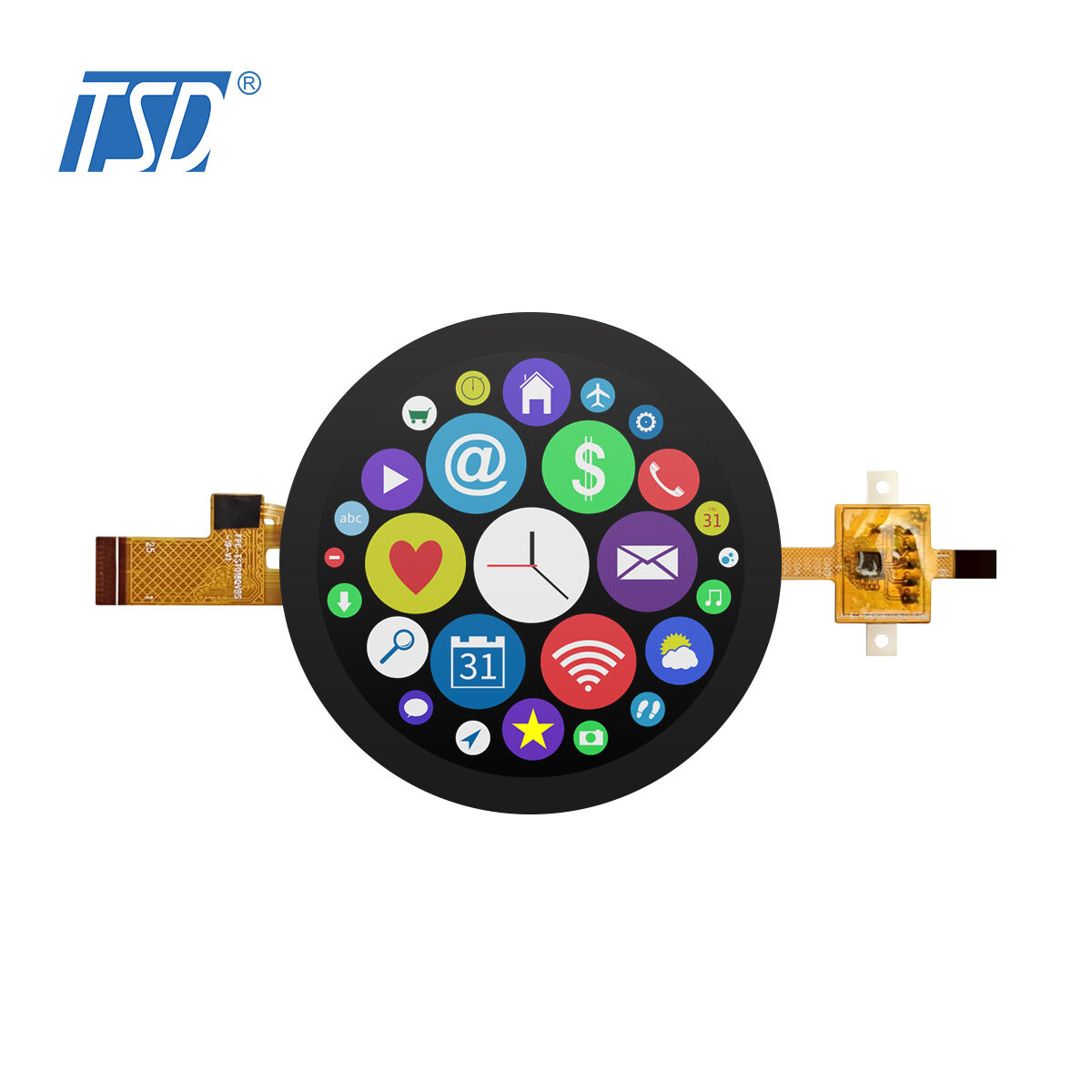

TSD 1.8 inch 360*360 inch Round LCD IPS Screen MCU/QSPI Interface TFT LCD Display Modules With CTP
|
Part No. |
TST018QVBS-19C |
|
Outline Dimension(mm) |
56.37x56.37x3.13 |
|
Active Area(mm) |
45.68x45.68 |
|
Resolution(dots) |
360x (RGB) × 360 |
|
Touch panel |
with CTP |
|
Driver IC |
ST77916 |
|
Pixel arrangement |
RGB-stripe |
|
Display mode |
Normal black, IPS, 1.8 inch TFT |
|
Surface treatment |
Antiglare |
|
View direction |
All o'clock |
|
Interface |
MCU/QSPI |
- Overview
- Related Products

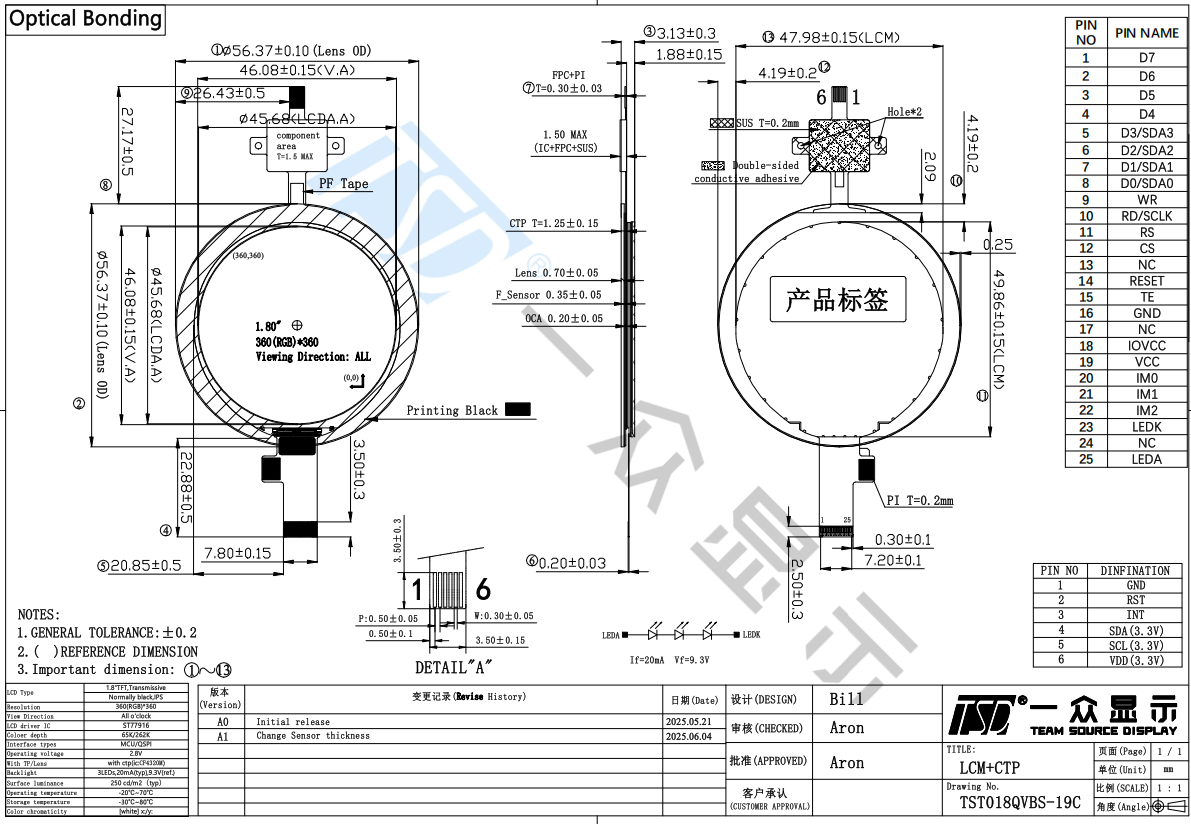

| Part No. | TST018QVBS-19C | |
| Outline Dimension(mm) | 56.37x56.37x3.13 |
|
| Active Area(mm) | 45.68x45.68 | |
| Resolution(dots) | 360x (RGB) × 360 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 360RGB(H)xRGBx360(V) | |
| Touch panel | with CTP | |
| Driver IC | ST77916 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black, IPS, 1.8 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All o'clock | |
| Interface | MCU/QSPI | |
| Module lifetime(Hours) | 30,000-50,000 | |
The circular LCD screen is a major innovation in liquid crystal display technology. Its display principle is similar to that of the square LCD screen. However, through adjustments to the LCD glass production technology and screen parameters, the circular screen can display normally even in a circular state. .
Compared with traditional rectangular LCD screens, circular LCD screens have a more beautiful appearance and are more in line with people's aesthetic concepts. In recent years, circular LCD screens have become more and more popular in the market and are widely used in various fields. The application prospects of circular LCD screens are very broad.
With the continuous advancement of technology and the growing market demand, it will have wider application scenarios and richer functions.

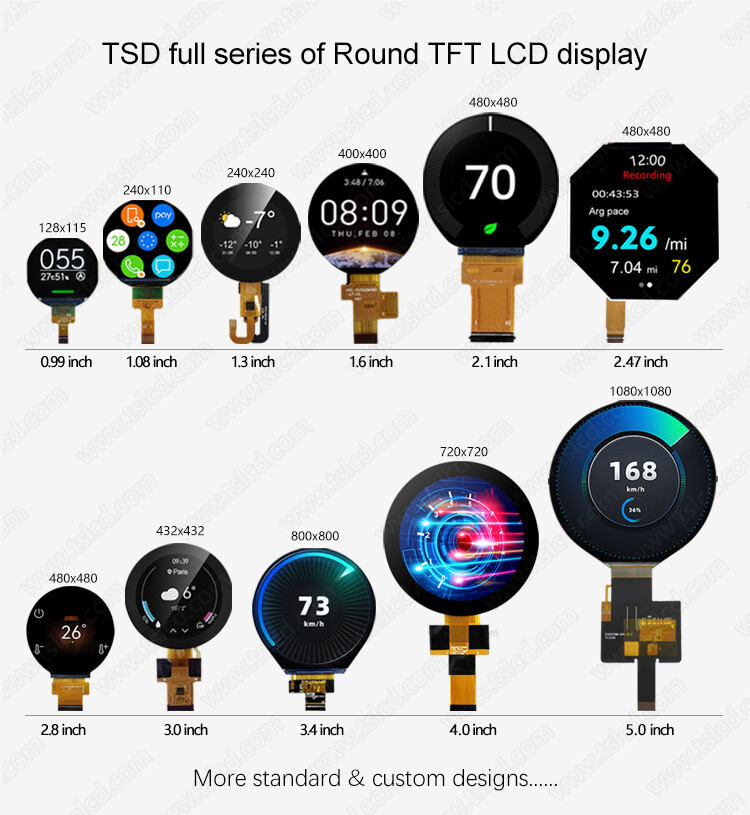

As for TSD round tft display, we have full series of round display module,contact us today for more information.
Have any customize requirements, please feel free to contact us.
