TSD 3.5 Inch 340x800 RGB 16 bits ST7701S IPS Screen TFT LCD Display Modules
This custom 3.5-inch capacitive touch screen features a 340×RGB×800 resolution with full viewing angle and 16-bit RGB interface, driven by the ST7701S controller IC for smooth, vivid visuals. Its ultra-slim outline of 37.27×89×1.6 mm with a 33.966×81 mm active area fits compact designs, while 330 nits brightness ensures clear readability. Supporting USB and I2C interfaces, this TP touch panel is ideal for DIY projects, embedded systems and small-scale industrial applications.
- Overview
- Related Products
1. More than 20 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people- oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.

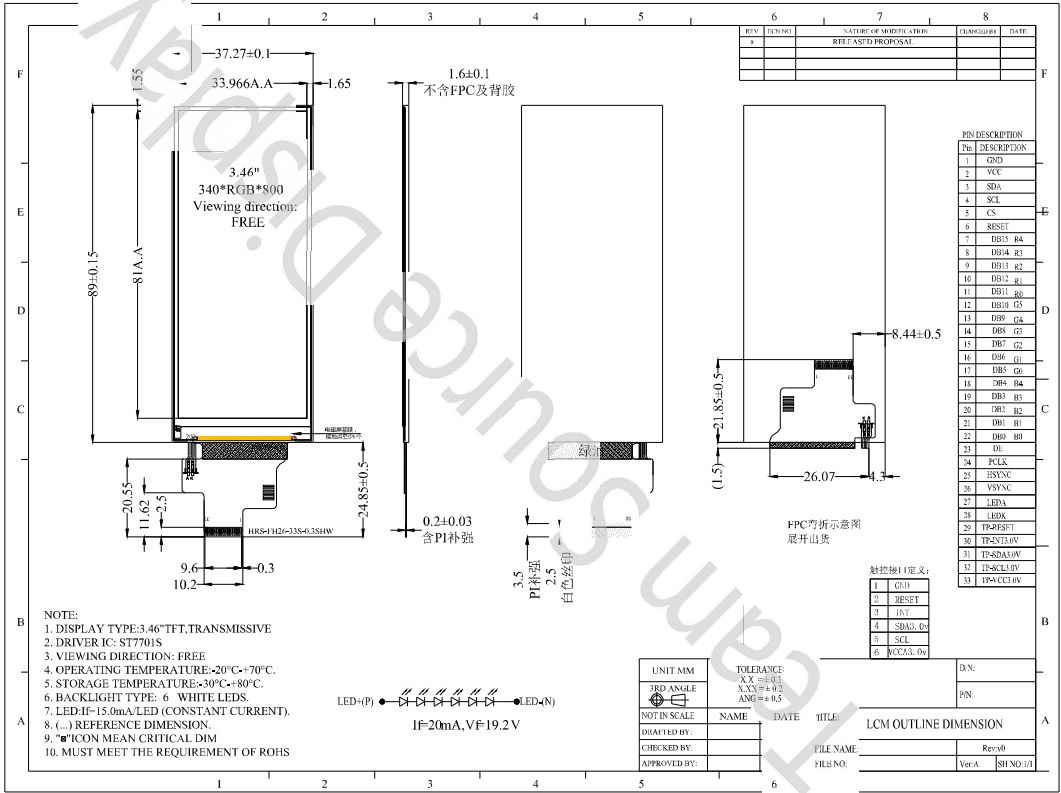

| About this product |
| Res. | 340xRGBx800 |
| Outline mm | 37.27x89x1.6 |
| AA mm | 33.966x81 |
| Viewing | ALL |
| interface | 16 bits RGB |
| lumin. | 330 |
| Driver IC | ST7701S |
| About US |
 |
Who is TSD? TEAM SOURCE DISPLAY (TSD) was established in 2004.
Head office located in Shenzhen,
factory is in Dongguan.
TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development,
single-chip production and sales.
|
Our Factory
◆ Operates Class 1000 & 100 cleanrooms with auto humidity control and full ESD grounding. Fully imported automation ensures high-precision, end-to-end production for consistent, reliable products. our entire workshop floor is equipped with a dedicated anti-static (ESD) grounding system to ensure product safety.
◆ Backed by advanced equipment, stringent quality control systems, and continuous technological innovation, our products are widely adopted in consumer electronics, industrial control, smart home applications, and beyond, earning extensive recognition and trust from clients worldwide.
◆ Furthermore, our seasoned R&D team stands ready to provide rapid and efficient new product development support, offering comprehensive hardware and software design solutions tailored to customer needs.
Exhibition
 |
 |
 |
|||
|
|
|
 |
 |
 |
|||
|
|
|
 |
 |
 |
|||
|
|
|
Our Certificate
The company has maintained its ISO 9001 and ISO 14001 certifications since 2017–2018, and further expanded its credentials by securing IATF 16949 and ISO 13485 between 2019 and 2020.
| Product Applications |
Target Applications:
DIY & Maker Projects — USB and I2C interfaces enable easy plug-and-play with Raspberry Pi, Arduino and other dev boards.
Embedded Systems & HMI — 16-bit RGB interface with ST7701S driver, ideal for compact control panels.
Smart Home Devices — Slim bar-type design fits wall switches, thermostats and remote controllers.
Portable Handhelds — Ultra-thin 1.6 mm profile with 330 nits brightness for compact, lightweight devices.
Small-Scale Industrial Equipment — Full viewing angle and capacitive touch suit meters, detectors and inspection tools.
Wearable & Custom Devices — 340×800 bar display perfect for wristbands, smart pens and custom TP projects.
| Packing & Delivery |
| FAQ |
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
Have any customize requirements, please feel free to contact us.
