TSD 5.0'' TFT IPS Transmissive 800x800 Resolution with RGB Interface LCD Module with TP

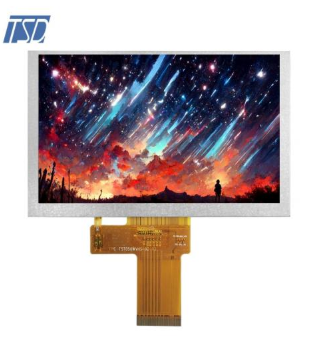

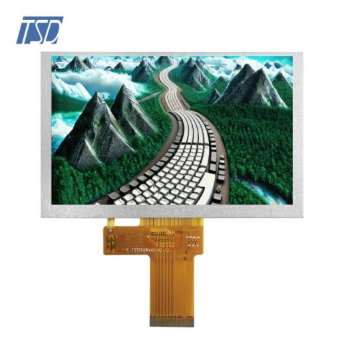

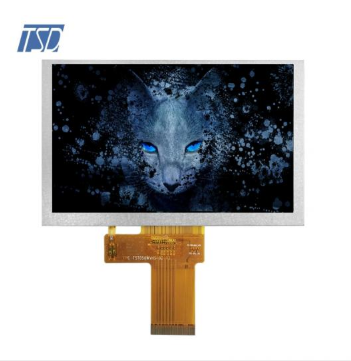

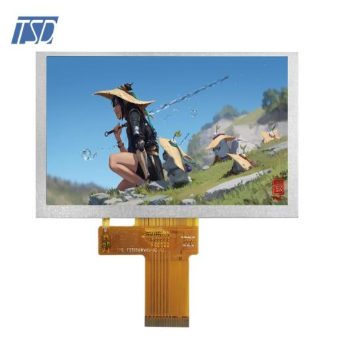

The TST050WVHS-36C-2 is a 5.0-inch diagonal active-matrix TFT LCD module utilizing a-Si TFT (amorphous silicon) technology, with a resolution of 800(RGB)×480 pixels. The module integrates a GH7006-i2 driver IC and supports a 24-bit RGB interface, enabling high-quality color display with 16.7M colors. It comes with a built-in capacitive touch panel (CTP, FT5446U) with I²C interface, providing a complete touch display solution. A typical luminance of 450 cd/m² and an operating temperature range of -20°C to +70°C make the device suitable for industrial control panels, portable instruments, and handheld terminals
Part Number:
Datasheet:
- Overview
- Related Products
ITEM |
Specification |
Unit |
LCD Type |
a-Si TFT,Transmissive,Normally Black |
- |
LCD Size |
5.0 | inch |
Resolution (W x H) |
800x (RGB) ×480 |
pixel |

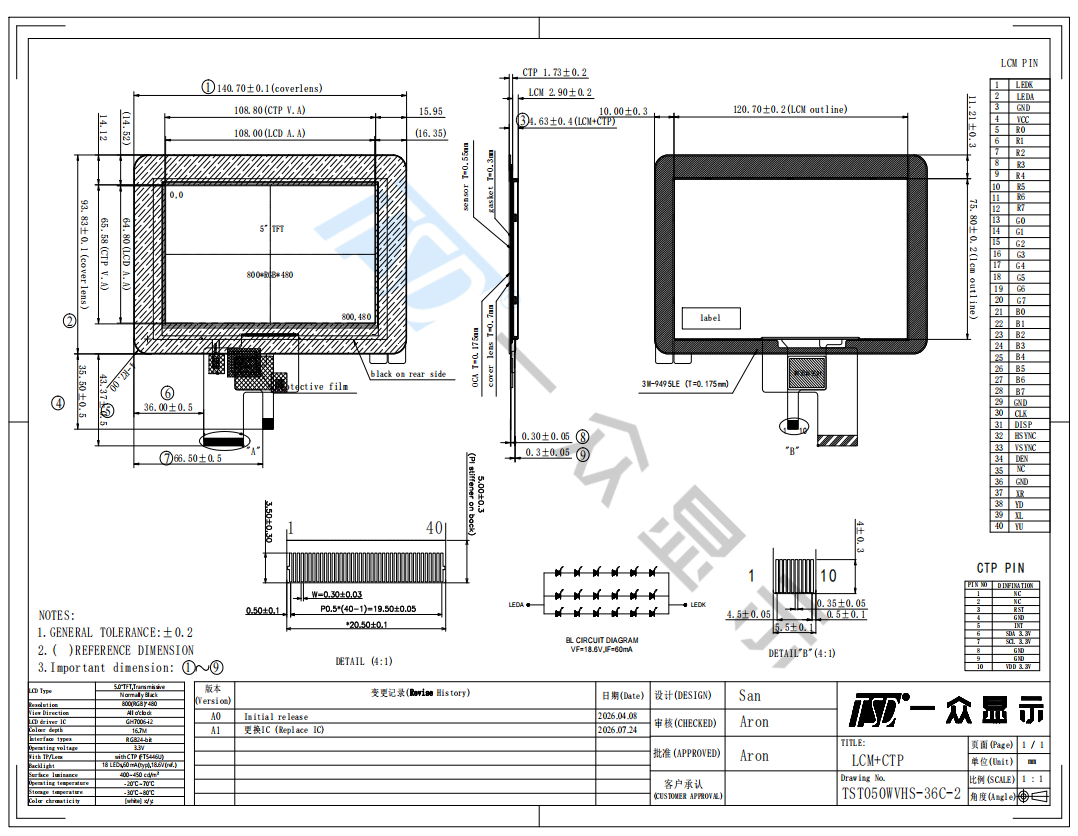

LCM outline |
140.70(H) x 93.83(V) x 4.63(D) |
mm |
Active Area |
108.00 (H) x 64.80 (V) |
mm |
Pixel Pitch |
0.135(H)x 0.135(V) |
mm |
Viewing Direction |
0.135(H)x 0.135(V) |
- |
Driver IC |
GH7006-i2 |
- |
Color Depth |
16.7M |
- |
Pixel Arrangement |
RGB-stripe |
- |
Backlight Type |
18 LEDs,60mA(typ),18.6V(ref.) |
- |
Surface Luminance |
400(Min)450(TYP) |
cd/m² |
Surface Treatment |
Clear |
- |
Interface Type |
RGB-24bit |
- |
With/Without TP |
With CTP(FT5446U) |
- |
