7 inch 800*480 IPS Screen LVDS 8 bits Car LCD Display TFT LCD Modules
| Inch | 7.0 |
| Part number | TSM070WVHN-117 |
| Res. | 800xRGBx480 |
| Outline mm | 171.0x110.0x9.65 |
| AA mm | 152.4x91.44 |
| Viewing | ALL |
| Contr. | 1000 |
| interface | LVDS 8 bits |
| lumin. | 500 |
Brand:
TSD
Spu:
TSM070WVHN-117
Appurtenance:
- Overview
- Related Products

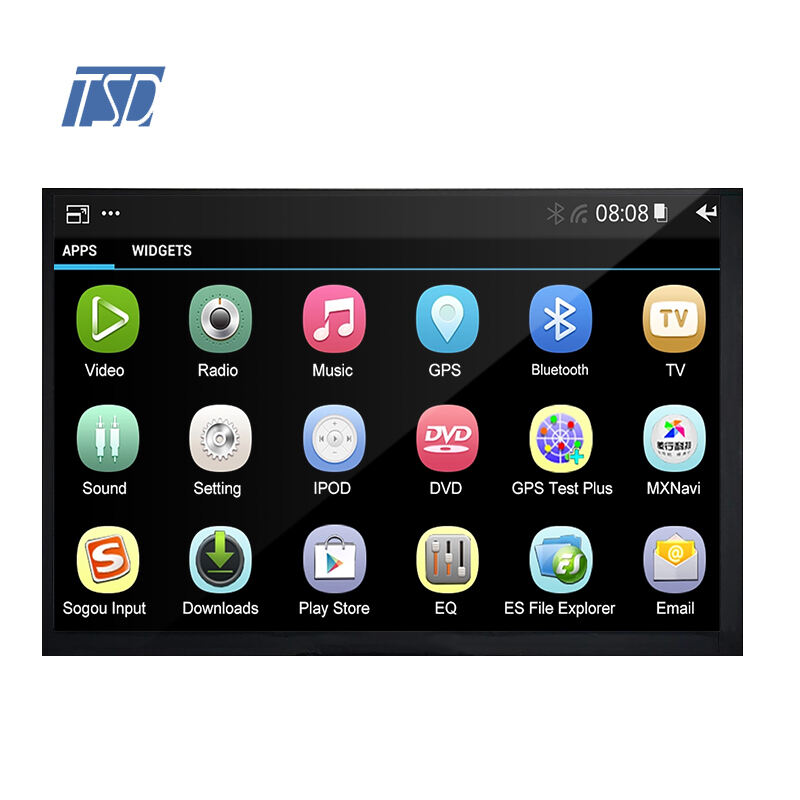

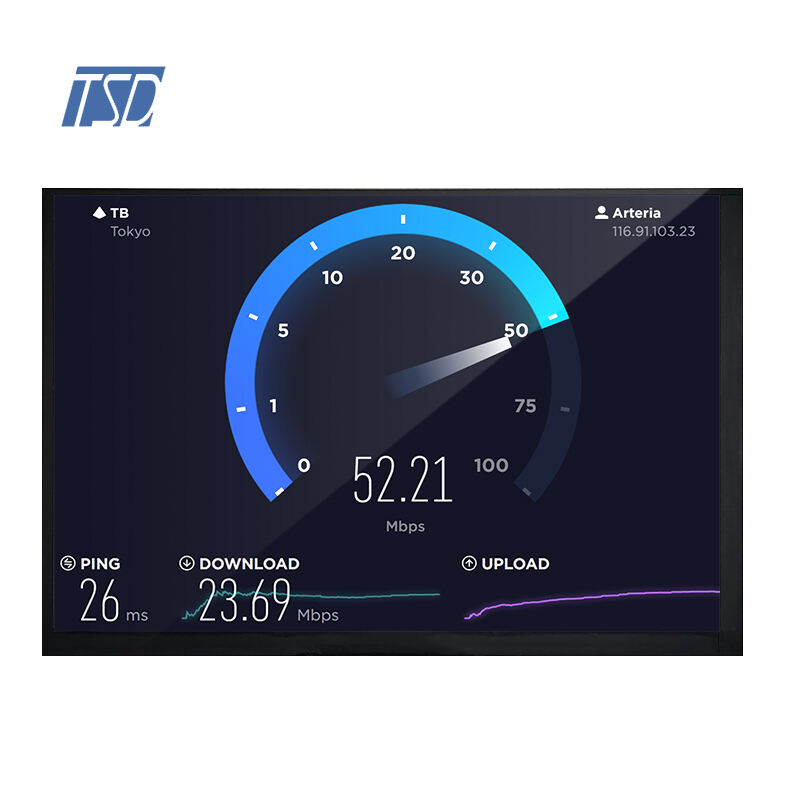

7 inch 800*480 IPS Screen LVDS 8 bits Car LCD Display TFT LCD Modules
Introduction
TSD Display model TSM070WVHN-117 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
This model is composed of a TFT LCD panel, a Backlight and a driving circuit.
This TFT LCD has a 7.0 (15:9) inch diagonally measured active display area with WVGA (800 horizontal by 480 vertical pixel) resolution.
| Inch | 7.0 |
| Part number | TSM070WVHN-117 |
| Res. | 800xRGBx480 |
| Outline mm | 171.0x110.0x9.65 |
| AA mm | 152.4x91.44 |
| Viewing | ALL |
| Contr. | 1000 |
| interface | LVDS 8 bits |
| lumin. | 500 |
Have any customize requirements, please feel free to contact us.
TSD-Provide Best Products with Best Services.
