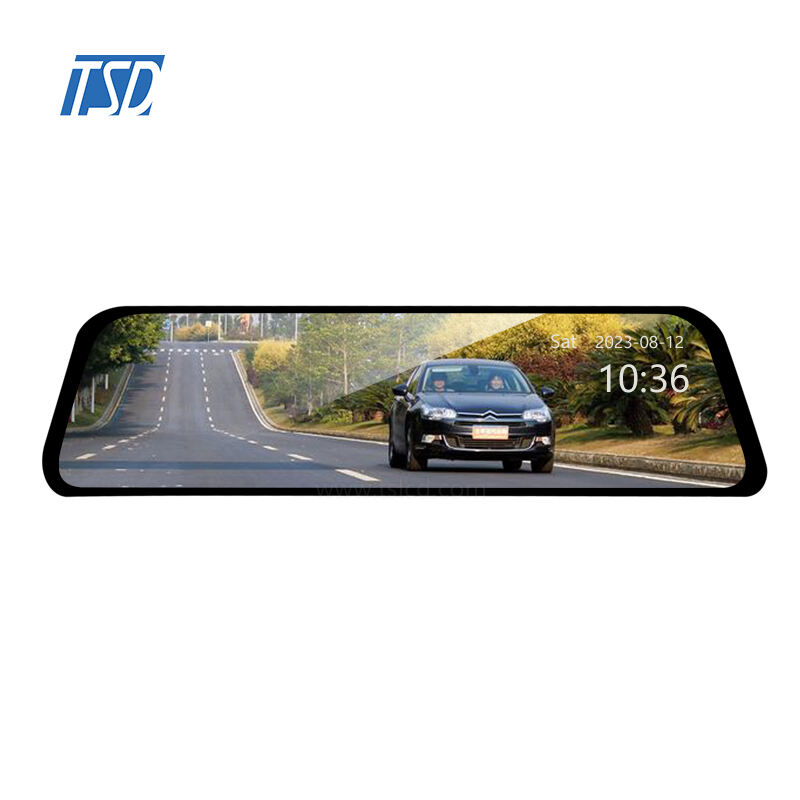

9.4 inch 480*1920 ips screen car rearview mirror lcd MIPI Interface tft lcd display modules
| LCD Type | a-Si TFT,Transmissive,Normally black |
| LCD Size | 9.35 |
| Resolution (W x H) | 480x (RGB) × 1920 |
| Outline size | 75.26(H) x 261.44(V) x8.58(T) |
| Active Area | 8.03 (H) x 232.13 V) |
| Pixel Pitch | 0.0403(H) × 0.1209(V) |
| Viewing Direction | ALL o'clock |
| Color Depth | 16.7M |
| Pixel Arrangement | RGB-stripe |
| Backlight Type | White LED*21Chip |
| Surface Luminance | 1050(TYP) |
| LCD Driver IC | |
| Interface Type | MIPI |
| Input Voltage | |
| With/Without TP or Lens | With CTP(GT911) |
Brand:
TSD
Spu:
TST094FHBS-02BC
Appurtenance:
- Overview
- Related Products
9.4 inch 480*1920 ips screen car rearview mirror lcd MIPI Interface tft lcd display modules

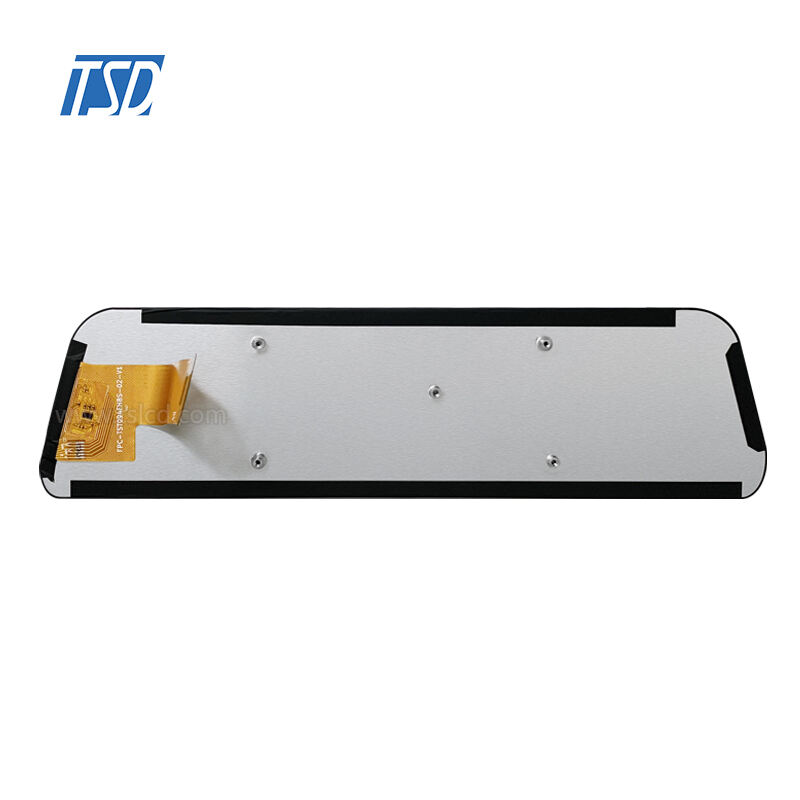

TST094FHBS-02BC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a Backlight, a Capacitive touch screen.This TFT LCD has a 9.35 inch diagonally measured active display area with (480 horizontal by 1920 vertical pixel) resolution.
| Inch | 9.4 |
| Part number | TST094FHBS-02BC |
| Res. | 480xRGBx1920 |
| Outline mm | 75.26x 261.44x8.58 |
| AA mm | 58.03x 232.13 |
| Viewing | ALL |
| Contr. | |
| interface | MIPI |
| lumin. | 1050 |
| Driver IC | FL5893DA*2 |
Have any customize requirements, please feel free to contact us.
