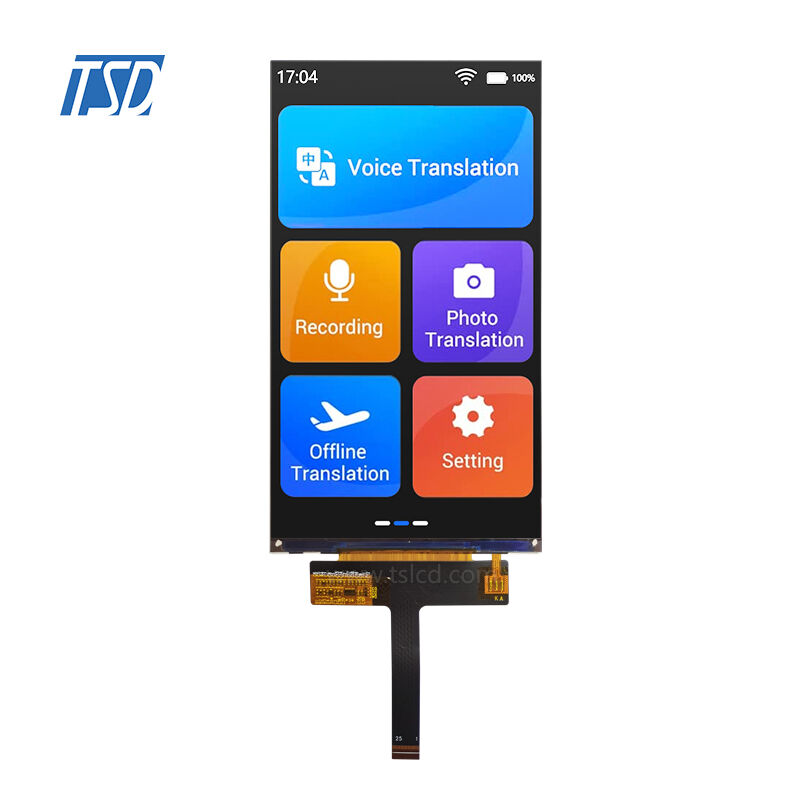

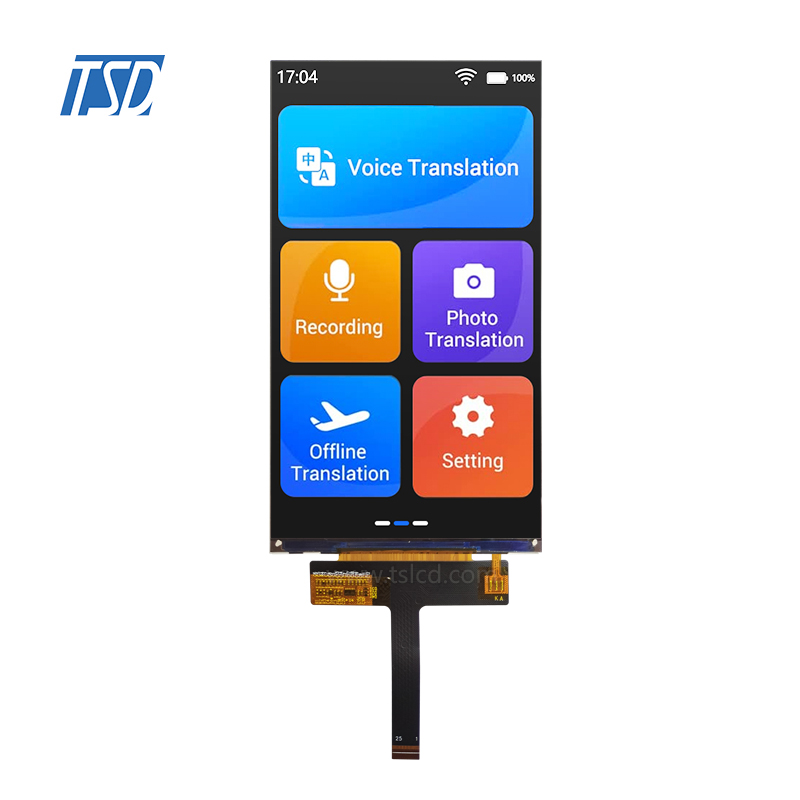

Automotive Grade 2.9 inch 376x960 IPS Screen 450 nits ST7701S IC MIPI Interface TFT LCD Display Modules
The 2.9-inch 376x960 TFT Display Module is more than just a screen; it's a versatile visual solution designed for a new generation of smart devices. Engineered with 450 nits of brightness and IPS technology, it delivers exceptional clarity and wide viewing angles, making it the ideal interface for products where space is limited but performance is critical.
- Overview
- Related Products
1. More than 20 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people- oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
| About this product |
2.9" Automotive TFT Display | 376×960 IPS | 450 Nits
Featuring a sharp 376×960 resolution and IPS technology, it provides a clear, vibrant image with wide viewing angles.
With 450 nits of brightness, the display ensures excellent daylight readability. It utilizes the reliable ST7701S IC and a high-speed MIPI interface for seamless integration with automotive SoCs. Built to last, this module complies with strict automotive standards and supports customization options such as touch panels and optical bonding to fit your specific project needs.

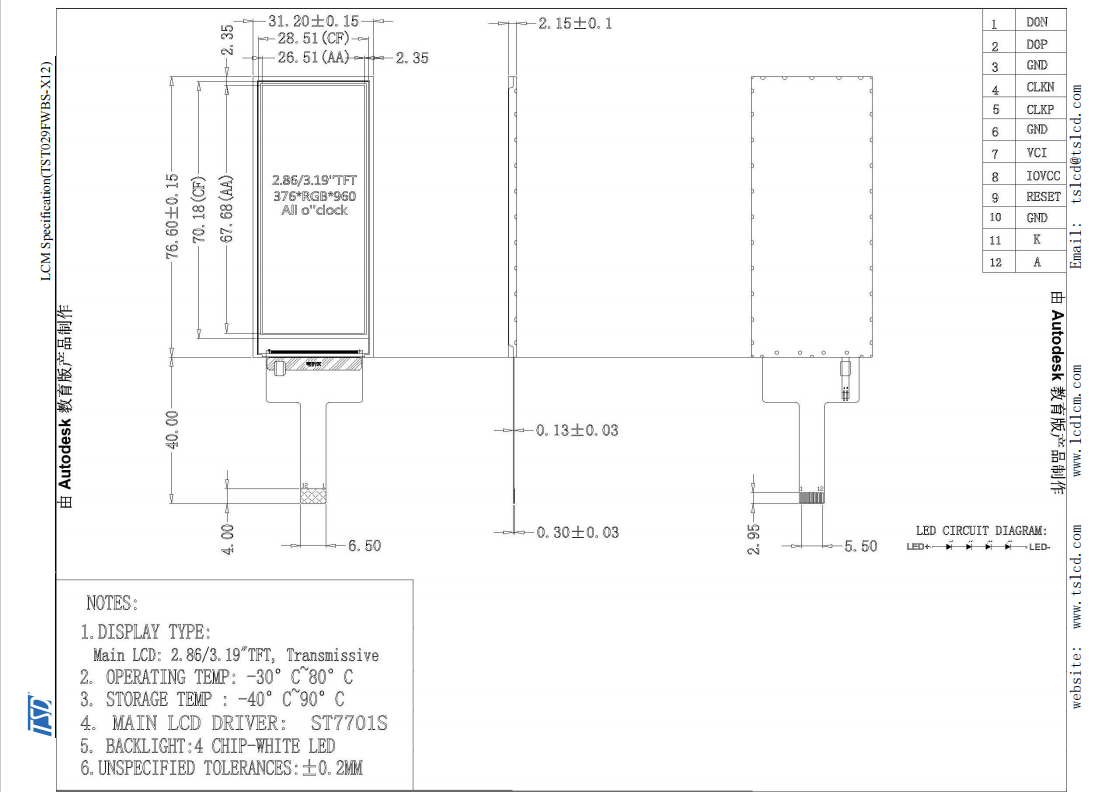

Technical Specifications
ITEM |
Standard value |
UNIT |
LCD Type |
TFT Transmissive |
0.8D |
Number of Dots |
376*(RGB)*960 |
Dots |
Pixel Arrangement |
RGB Stripe |
|
Active Area |
26.51 (W) x 67.88(H) |
mm |
Viewing Area |
28.51 (W) x 70.18 (H) |
mm |
Glass Area |
/ |
mm |
Viewing Direction |
IPS all O’ CLOCK |
|
Control IC |
IC ST7701S |
|
Module Size |
31.20*76.60*2.15 ±0.1 |
mm |
Back Light |
4 White LED |
| About US |
 |
Who is TSD? TEAM SOURCE DISPLAY (TSD) was established in 2004.
Head office located in Shenzhen,
factory is in Dongguan.
TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development,
single-chip production and sales.
|
Our Factory
◆ Operating within ISO 7 (Class 10,000) certified cleanroom facilities, we utilize a complete suite of imported automated production and testing equipment. This setup enables high-precision, stable automation across the entire workflow—from panel lamination and module assembly to final performance testing—laying a solid foundation for product consistency and reliability.
◆ Backed by advanced equipment, stringent quality control systems, and continuous technological innovation, our products are widely adopted in consumer electronics, industrial control, smart home applications, and beyond, earning extensive recognition and trust from clients worldwide.
◆ Furthermore, our seasoned R&D team stands ready to provide rapid and efficient new product development support, offering comprehensive hardware and software design solutions tailored to customer needs.
Exhibition
 |
 |
 |
 |
||||
|
|
|
|
 |
 |
 |
 |
||||
|
|
|
|
Our Certificate
The company has maintained its ISO 9001 and ISO 14001 certifications since 2017–2018, and further expanded its credentials by securing IATF 16949 and ISO 13485 between 2019 and 2020.
| Product Applications |

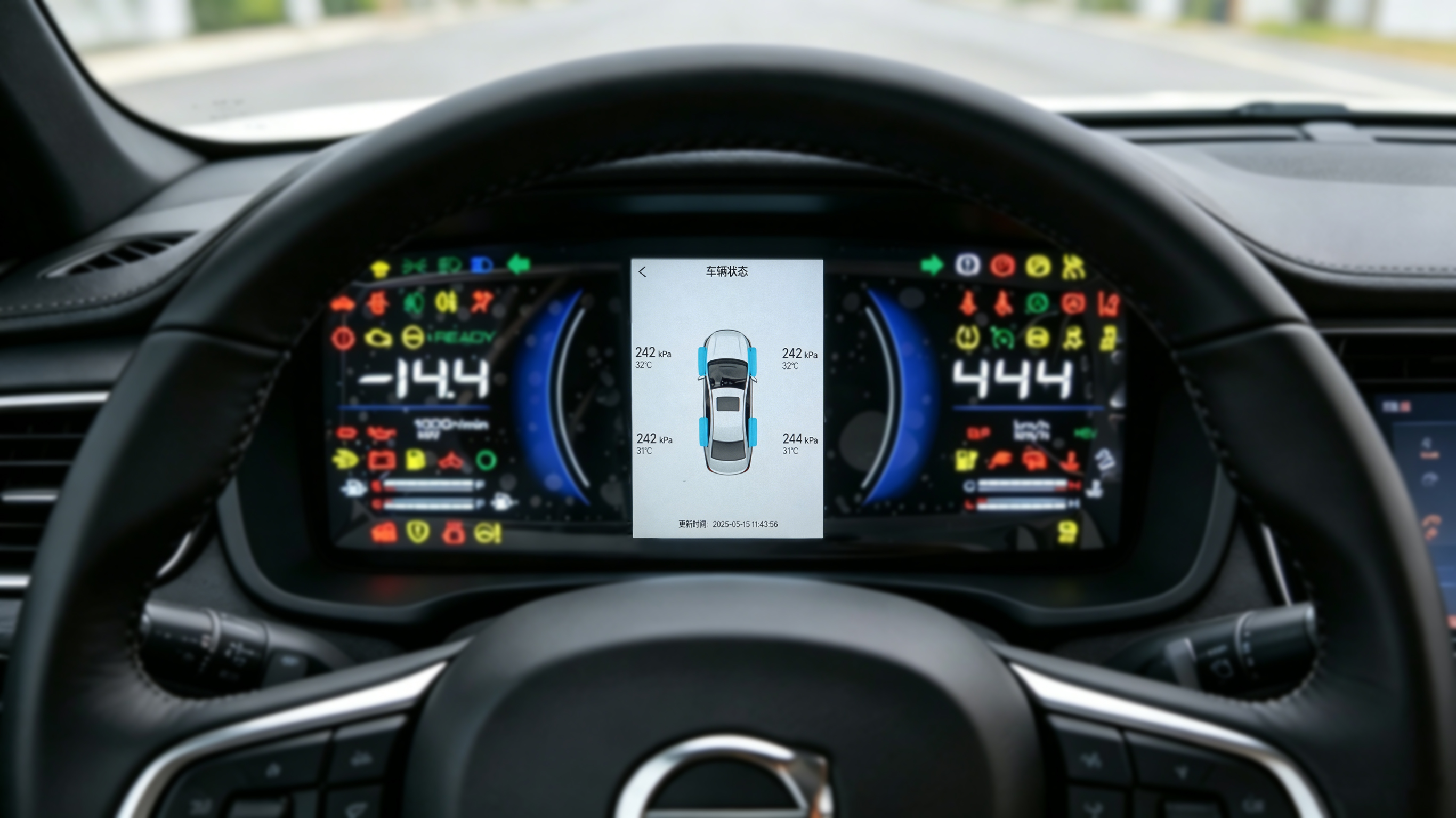

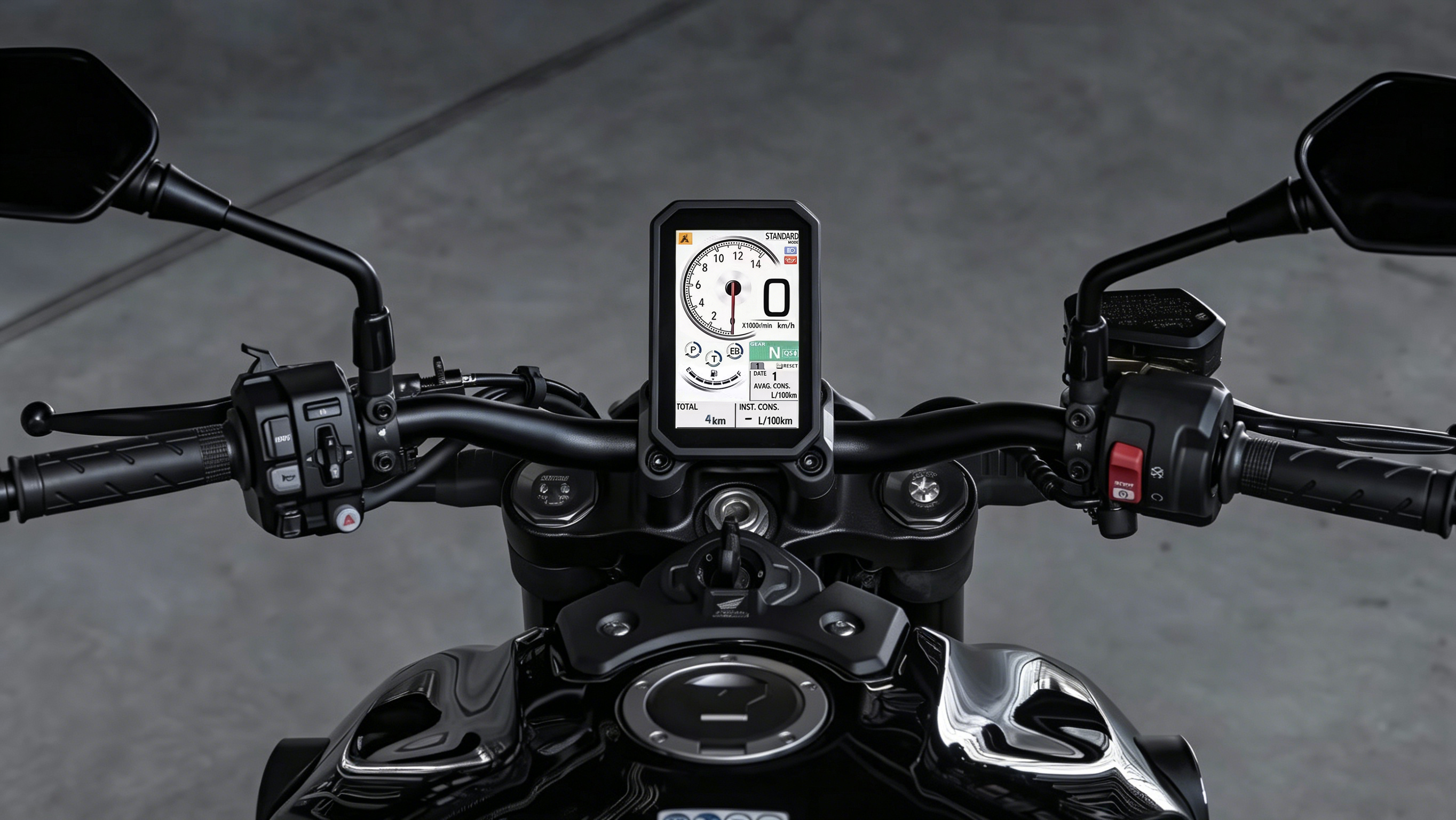

Where This Display Excels:
● Industrial Control Systems: Provides clear, real-time data visualization for PLCs, HMIs, and factory automation equipment, ensuring operational accuracy even in brightly lit industrial environments.
● Medical & Health Devices: Offers high-contrast, accurate visuals for portable diagnostic tools, patient monitoring systems, and health analyzers, where precision is paramount.
●Smart Home & IoT Appliances: Serves as the interactive brain for smart thermostats, security panels, high-end kitchen appliances, and home control hubs.
●Portable Consumer Electronics: Enhances user experience in handheld GPS devices, gaming consoles, action cameras, and other mobile terminals with its vibrant color reproduction.

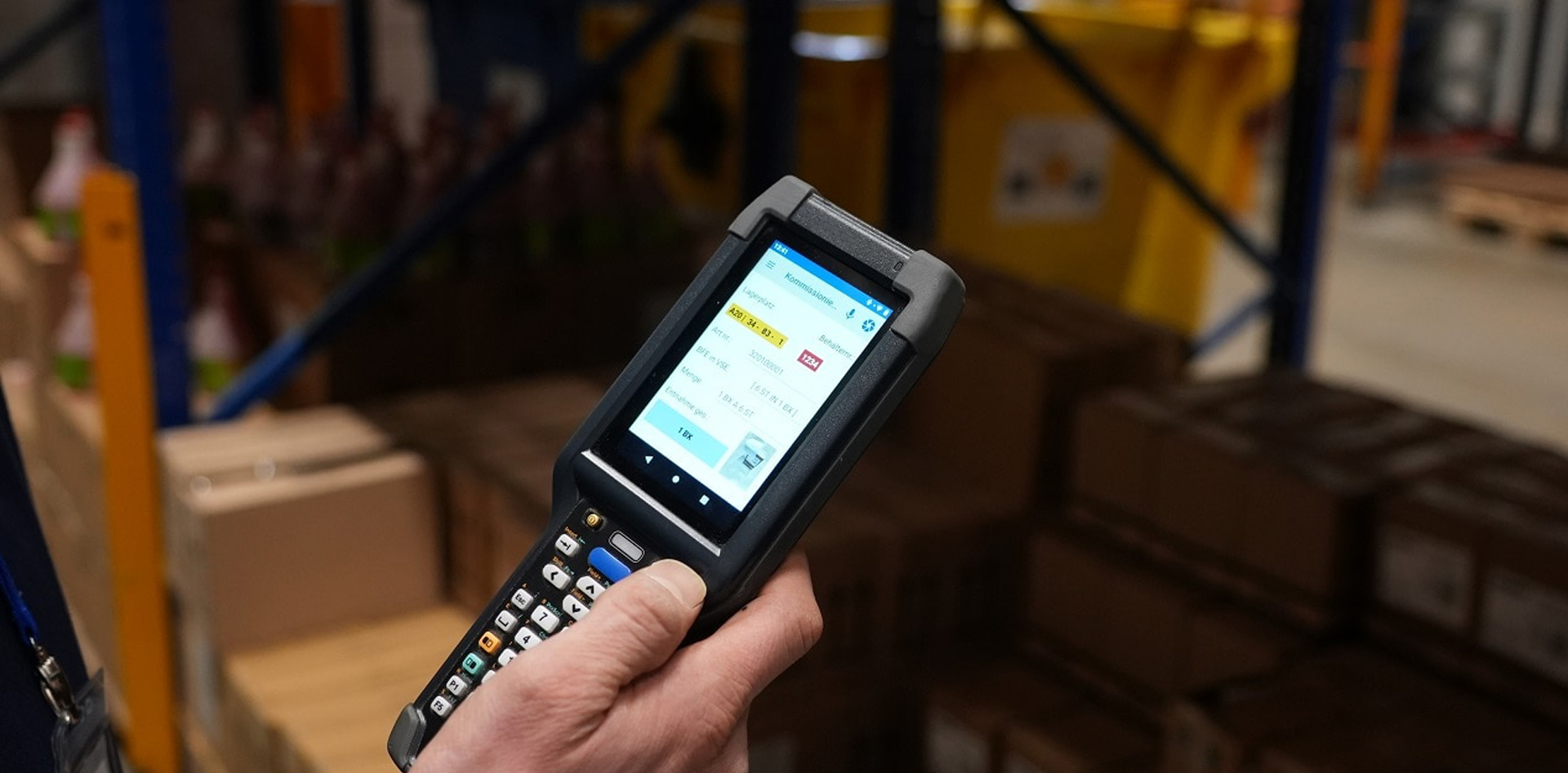

●Professional Equipment: Perfect for POS terminals, handheld scanners, test instruments, and communication radios requiring a durable and responsive display.
| Packing & Delivery |
| FAQ |
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
Have any customize requirements, please feel free to contact us.
