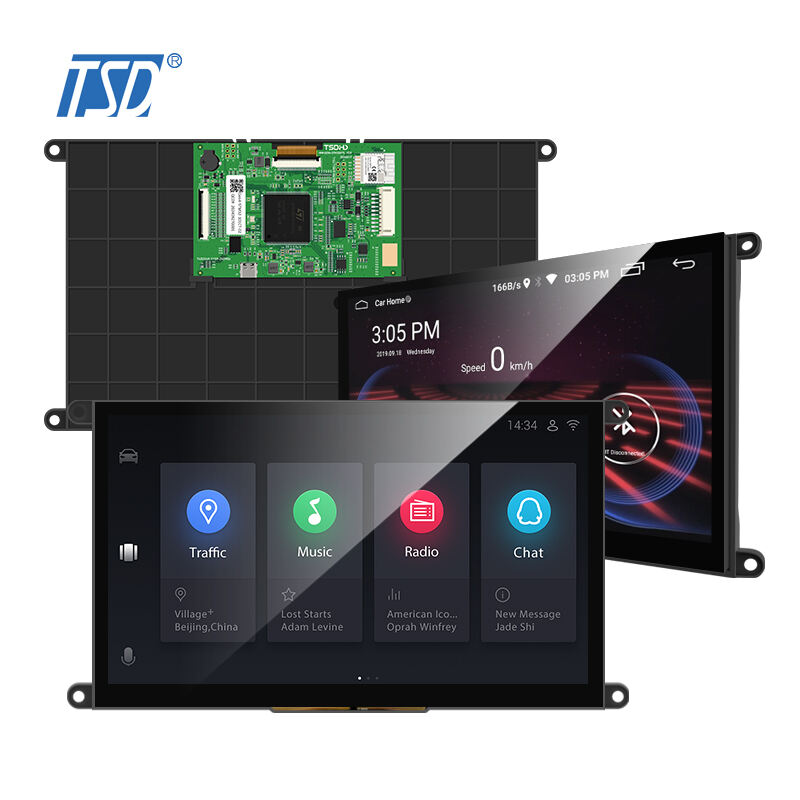

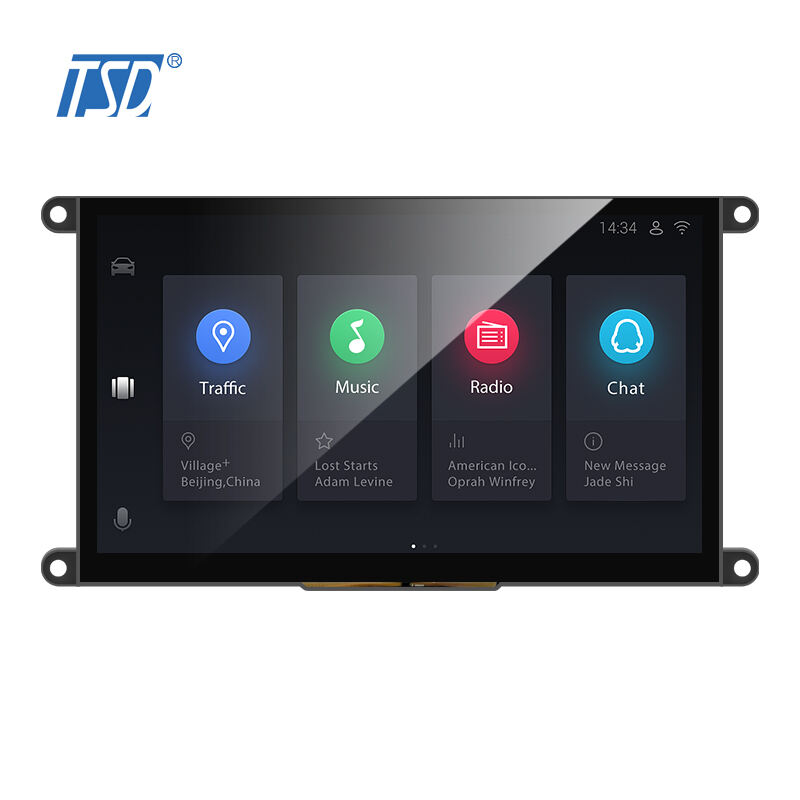

Gen4-STM32-101CT-0110.1 inch 1024*600 HD Smart TFT Display IPS Screen UART/RS232/RS485, 40pin GPIO Interface STM32H7R TFT LCD Display Modules
10.1-inch IPS wide-view display with 1024×RGB×600 resolution and 500nit brightness. Supports UART/RS232/RS485 and 40-pin GPIO interfaces, driven by STM32H7R IC, with optional touch functionality. Outline: 256.86×146.06×12.77mm; Active Area: 222.72×125.28mm. Ideal for industrial control, embedded systems, and HMI applications.
- Overview
- Related Products
- Implementing multimodal human-computer interaction based on TouchGFX
- Powerful 2.5D NeoChrom GPU - smart DMA architecture memory/GPU, High refresh rate and smooth full screen animation effects
- Integrated with TUYA WiFi module, using SPI communication, achieving high-speed remote OTA function
- Rich peripheral interfaces: UART, RS485, RS232, and Type-C, and with a 40pin GPIO expansion interface
- Integrated buzzer,support chord sounds
- High reliability and performance, widely applicable to industries such as home appliances, industry, and new energy
1. More than 20 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people- oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
| About this product |
10.1 inch 1024*600 HD Smart TFT Display IPS Screen UART/RS232/RS485, 40pin GPIO Interface STM32H7R TFT LCD Display Modules
| Size(inch) | 10.1 |
| Part number | Gen4-STM32-101CT-01 |
| Resolution | 1024xRGBx600 |

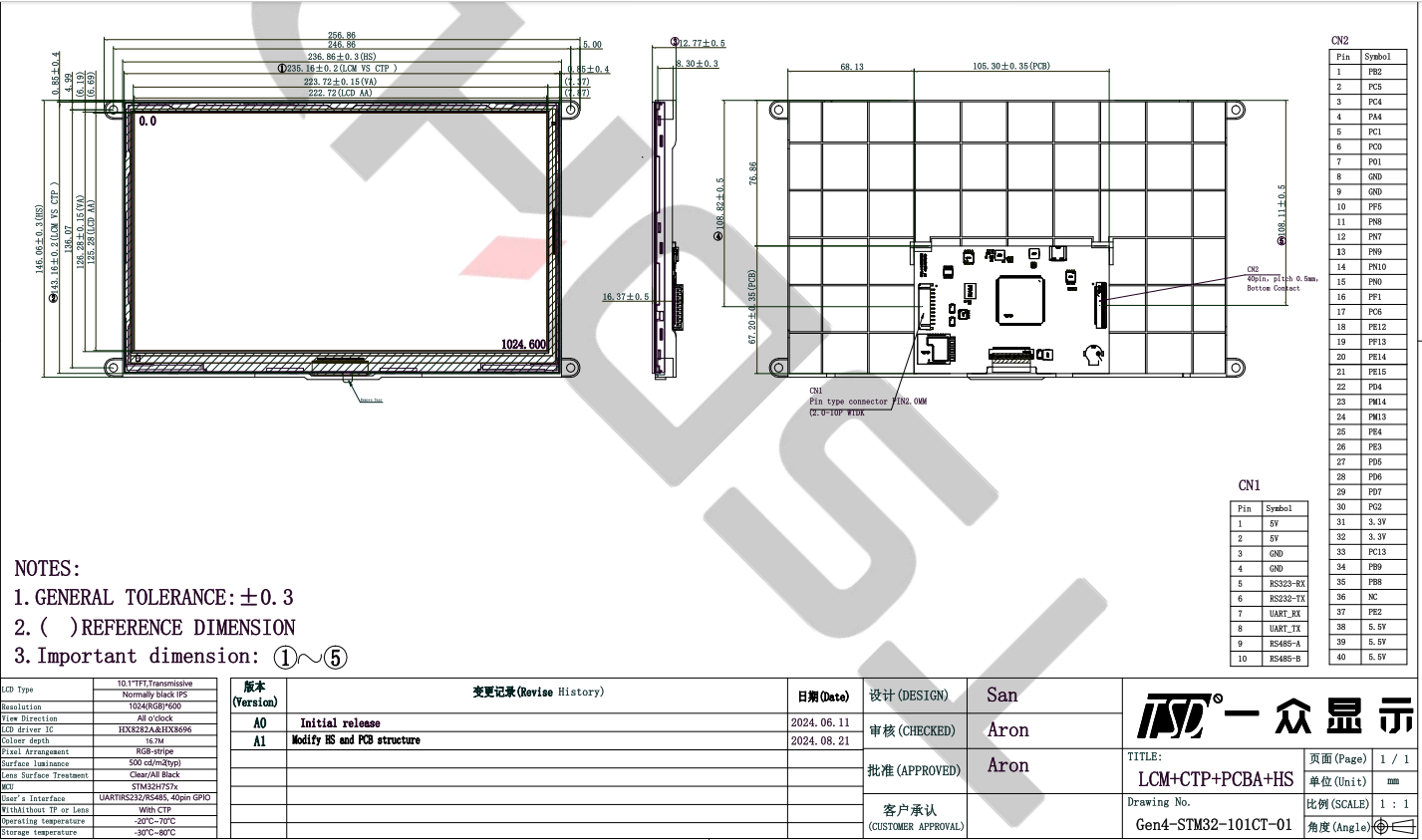

| Outline (mm) | 256.86x146.06x12.77 |
| Active Area(mm) | 222.72x125.28 |
| Viewing Angle | IPS |
| Interface | UART/RS232/RS485, 40pin GPIO |
| Brightness(nit) | 500 |
| Driver IC | STM32H7R |
| Touch Option | Yes |
| About US |
 |
Who is TSD? TEAM SOURCE DISPLAY (TSD) was established in 2004.
Head office located in Shenzhen,
factory is in Dongguan.
TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development,
single-chip production and sales.
|
Our Factory
◆ Operating within ISO 7 (Class 10,000) certified cleanroom facilities, we utilize a complete suite of imported automated production and testing equipment. This setup enables high-precision, stable automation across the entire workflow—from panel lamination and module assembly to final performance testing—laying a solid foundation for product consistency and reliability.
◆ Backed by advanced equipment, stringent quality control systems, and continuous technological innovation, our products are widely adopted in consumer electronics, industrial control, smart home applications, and beyond, earning extensive recognition and trust from clients worldwide.
◆ Furthermore, our seasoned R&D team stands ready to provide rapid and efficient new product development support, offering comprehensive hardware and software design solutions tailored to customer needs.
Exhibition
 |
 |
 |
|||
|
|
|
 |
 |
 |
|||
|
|
|
 |
 |
 |
|||
|
|
|
Our Certificate
The company has maintained its ISO 9001 and ISO 14001 certifications since 2017–2018, and further expanded its credentials by securing IATF 16949 and ISO 13485 between 2019 and 2020.
| Product Applications |
Designed for robust Human-Machine Interface (HMI) solutions, the Gen4-STM32-101CT-01 serves as the visual cornerstone for industrial automation systems. Its high brightness and IPS clarity make it ideal for outdoor kiosks, smart home control panels, and medical monitoring devices where readability is critical. By leveraging the integrated STM32H7R driver and versatile serial interfaces, developers can rapidly deploy this module in embedded data loggers, PLC interfaces, and IoT gateways, significantly reducing development time while ensuring reliable performance in demanding environments.
| Packing & Delivery |
| FAQ |
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
Have any customize requirements, please feel free to contact us.
