TSD 3.97'' 3.97 Inch 480x800 Resolution MIPI Interface IPS TFT LCD Display Module
This which is a 3.97 inch IPS TFT LCD module displays bright and sharp images in full colors with a resolution of 480×800. MIPI interface has great advantages, high data transmission speed and low power consumption guarantee fast image transmission and stability. IPS tech provides it a wide Angle of view, image is still awesome at different angles of viewing. Special compact design, easy for integration, Widely used in mobile devices, handheld terminals, Etc. High-quality vision and convenient installation experience.
Brand:
TSD
Spu:
TST040WVHS-16
Appurtenance:
- Overview
- Related Products

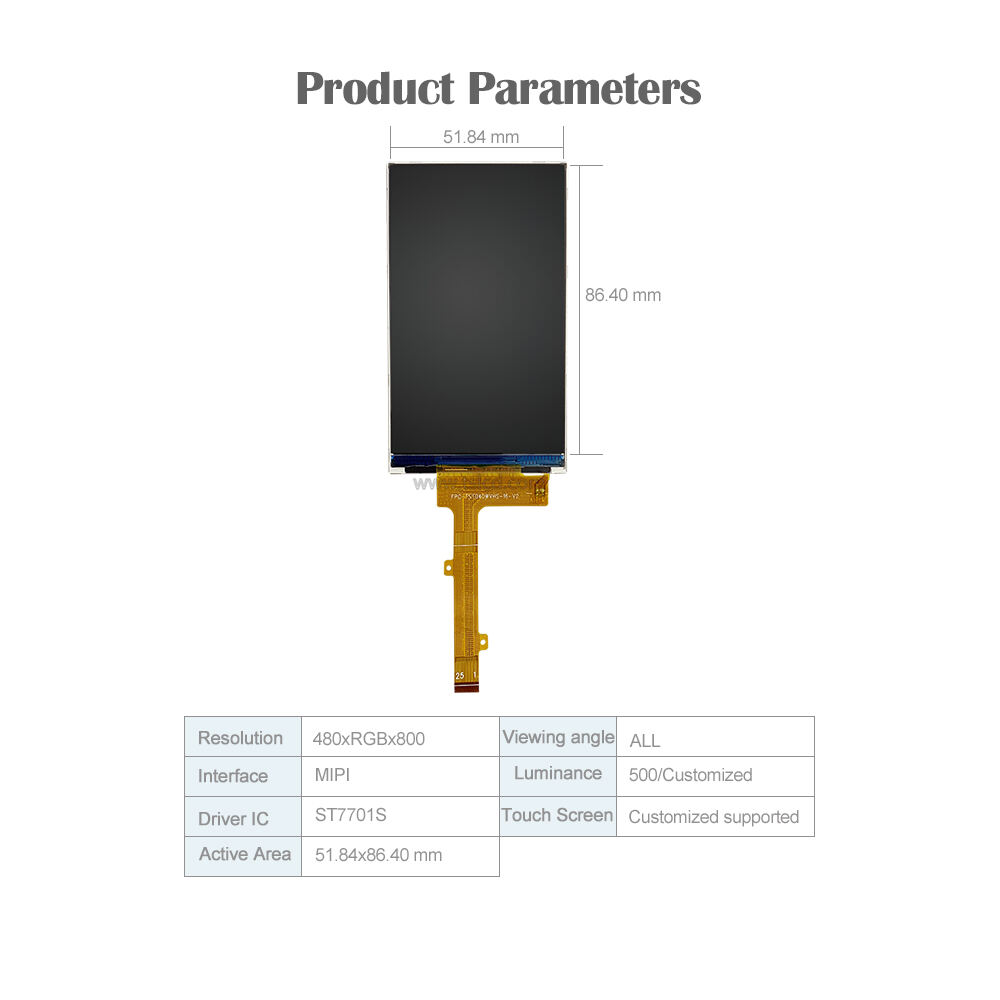

3.97'' 3.97 Inch 480xRGBx800 Resolution MIPI Interface IPS TFT LCD Display Module |
||
Model Number |
TST040WVHS-16 |
|
Display Type |
3.97 Inch TFT LCD Display Module |
|
Resolution |
480xRGBx800 |
|
Outline Size |
57.14x96.85x2.1 mm |
|
Active Size |
51.84x86.4 mm |
|
View Direction |
All |
|
Interface |
MIPI |
|
Surface Lumiannce |
500(nits) |
|
Driver IC |
ST7701S |
|
Operating Temperature |
-20--+70/-30--+85(℃) |
|
Storage Temperature |
-30--+80/-40--+90(℃) |
|
Brand |
TSD |
|
Custom Service |
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
|
Have any customize requirements, please feel free to contact us.
