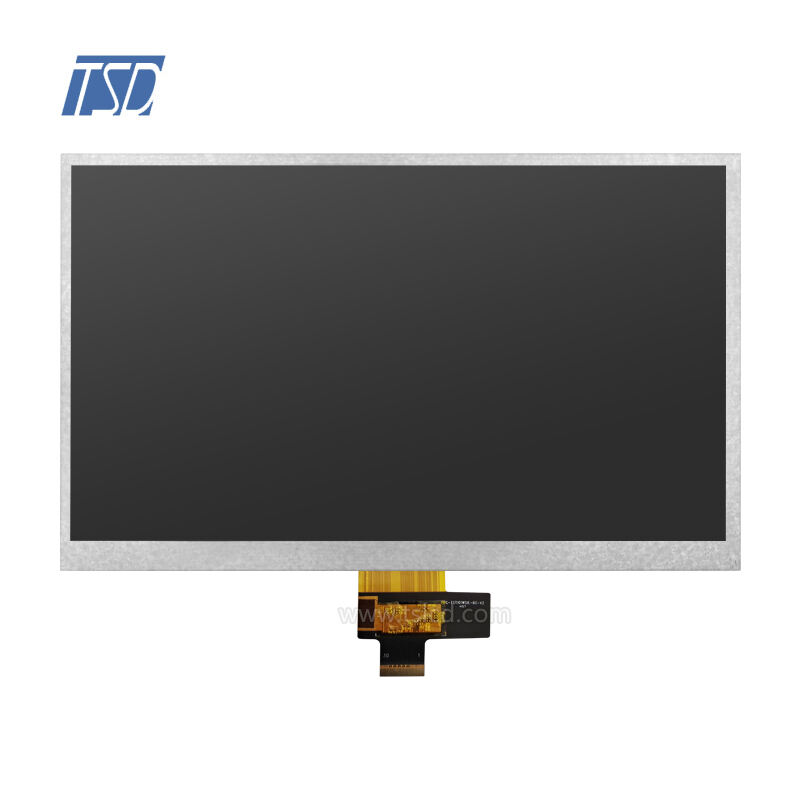

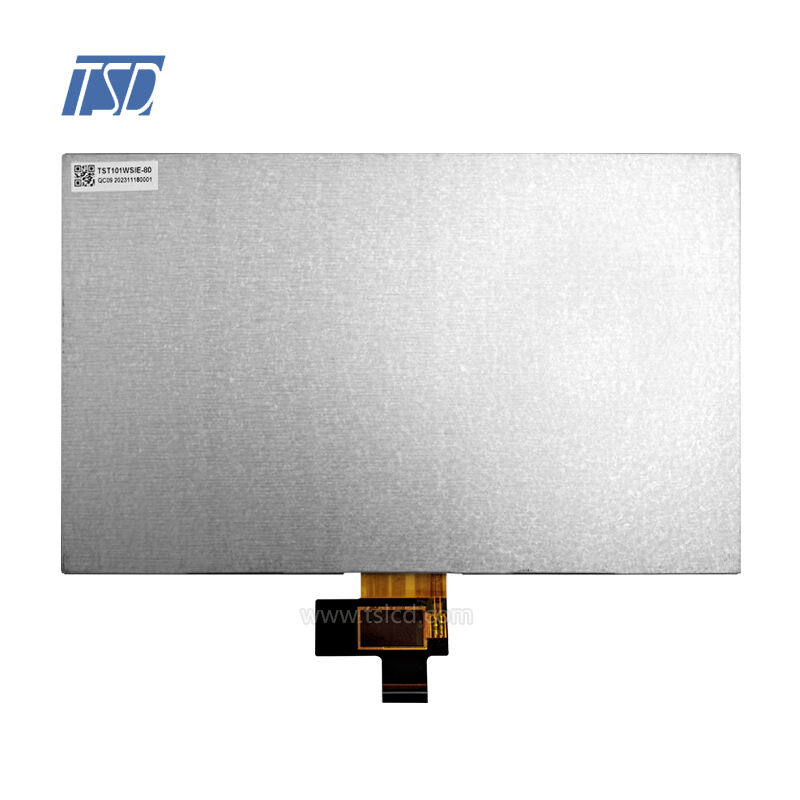

TSD 10.1'' 10.1 Inch MIPI Interface 1000nits High Brightness 1024x600 Resolution IPS TFT LCD Display
The TSD in-car display is a sensational 10.1-inches. MIPI interface, fast and stable data transmission, smooth information interaction. The panel has high brightness of 1000 nits, so it is clearly visible in strong light environments. 1024×600, full of rich details shown. The IPS wide viewing Angle color TFT LCD display greatly improves the all-round visual experience of driving, and provides the driver with high-quality driving information display.
Brand:
TSD
Spu:
TST101WSIE-80
- Overview
- Related Products
TSD 10.1'' 10.1 Inch 1024xRGBx600 Resolution MIPI Interface 1000nits High Brightness Sunlight Readable IPS TFT LCD Display |
||
LCD type |
10.1 inch IPS LCD display |
|
Part No. |
TST101WSIE-80 |
|
Resolution |
1024xRGBx600 |
|
Viewing angle |
All |
|
Outline Size |
235.00x143.00x5.05mm |
|
Active Area |
222.78x125.28mm |
|
Drive IC |
EK79007AD&EK73217BCCA |
|
Interface |
MIPI |
|
Brightness |
1000cd/m2 |
|
Operation temperature |
-20℃ to +70℃ |
|
Storage temperature |
-30℃ to +80℃ |
|
Brand |
TSD |
|
Custom Service |
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
|
Have any customize requirements, please feel free to contact us.
