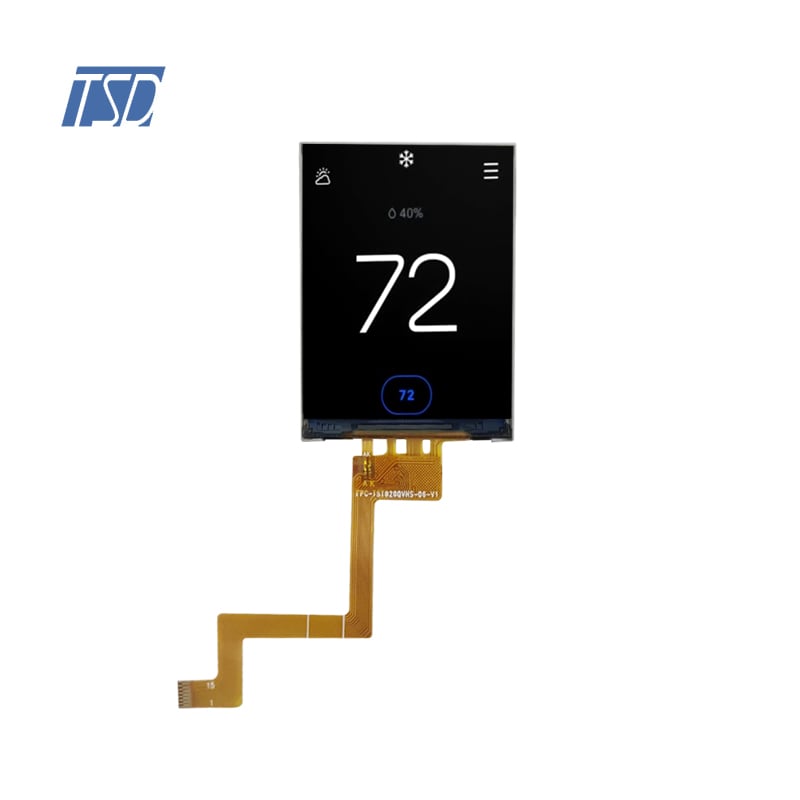

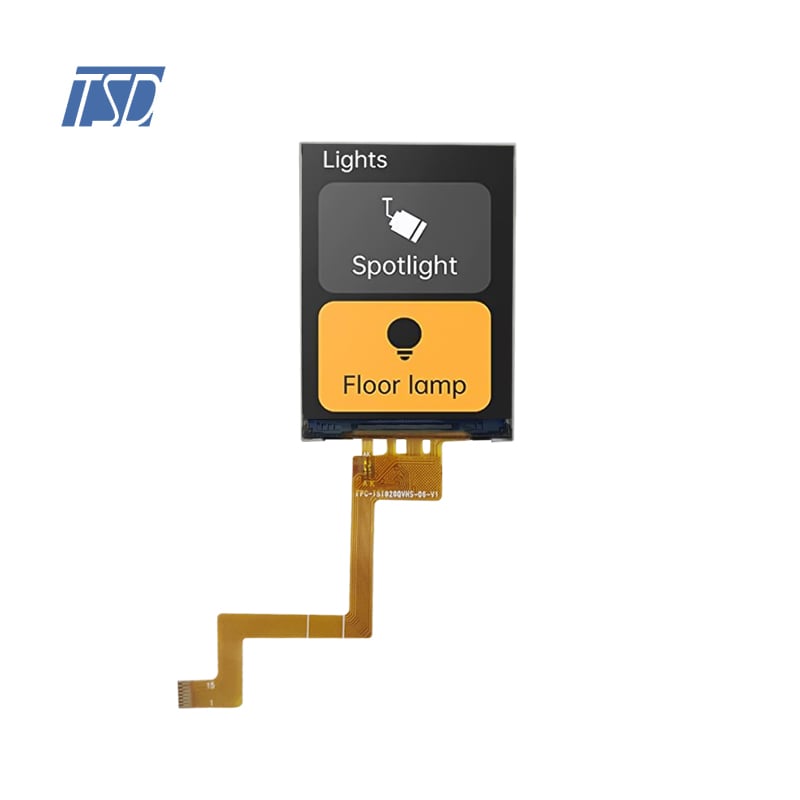

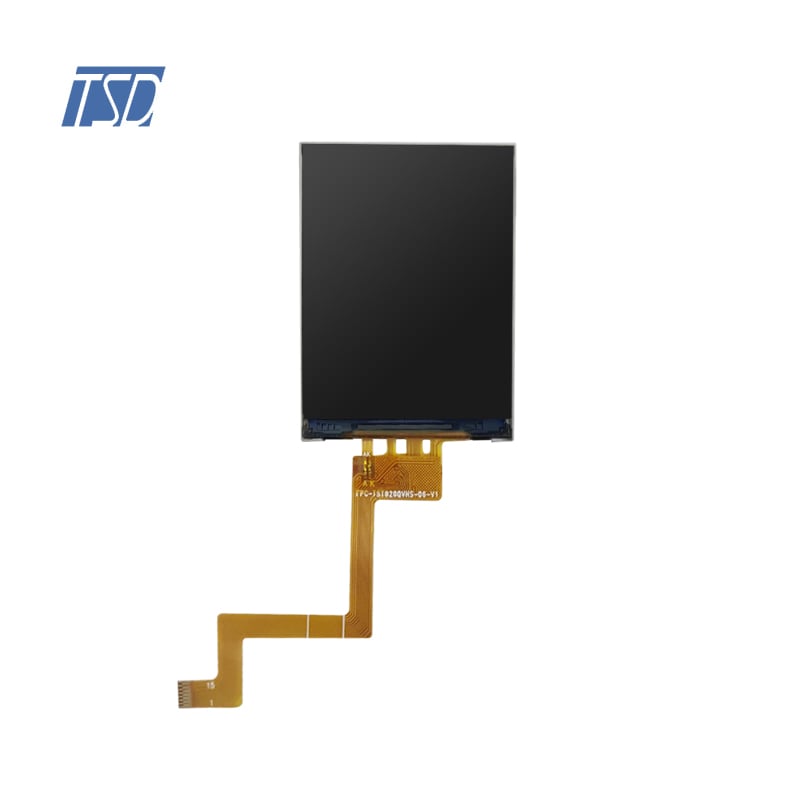

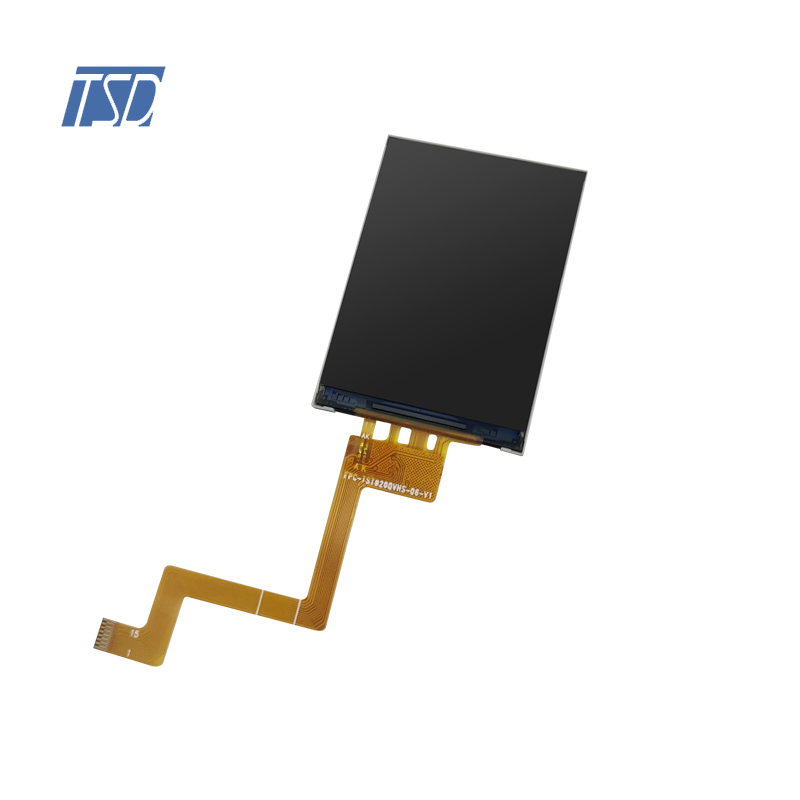

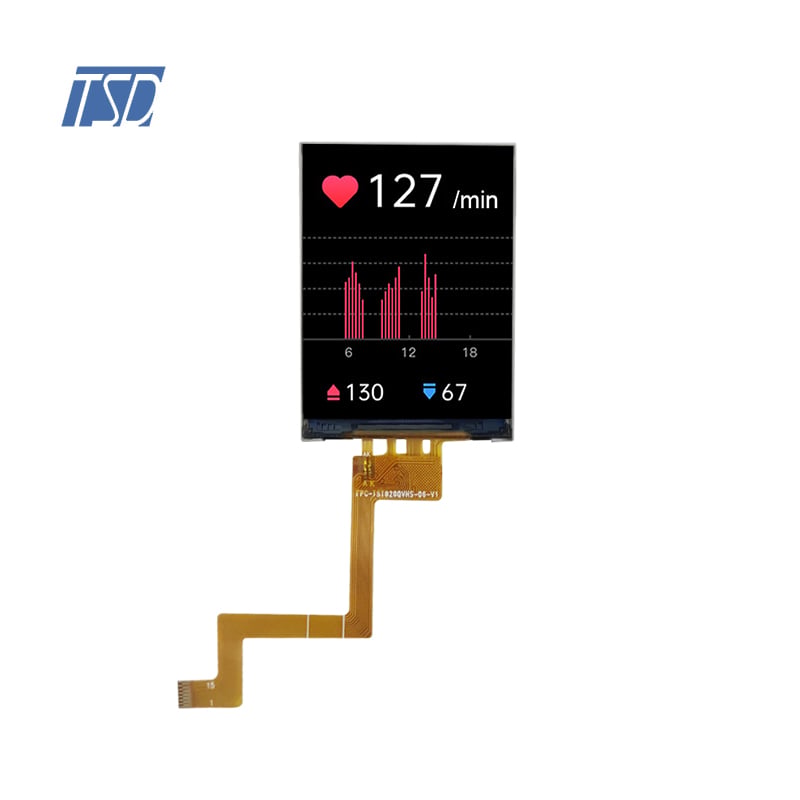

TSD 2'' 2 Inch 240x320 Resolution ST7789V SPI Interface IPS TFT LCD Screen lcd display modules
- Overview
- Related Products
1. More than 20 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people- oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
| About this product |
2'' 2 Inch SPI Interface 240x320 Resolution IPS TFT LCD Screen |
||
LCD type |
2 inch 240*320 spi tft lcd display modules |
|
Part No. |
TST020QVHS-06B |
|
Resolution |
240xRGBx320 |
|
Viewing angle |
IPS |
|
Drive IC |
ST7789V |
|
Interface |
SPI |
|
Brightness |
350 cd/m2 |
|
Operation temperature |
-20℃ to +70℃ |
|
Storage temperature |
-30℃ to +80℃ |
|
Brand |
TSD |
|
Custom Service |
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
|
| About US |
 |
Who is TSD? TEAM SOURCE DISPLAY (TSD) was established in 2004.
Head office located in Shenzhen,
factory is in Dongguan.
TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development,
single-chip production and sales.
|
Our Factory
◆ Operates Class 1000 & 100 cleanrooms with auto humidity control and full ESD grounding. Fully imported automation ensures high-precision, end-to-end production for consistent, reliable products. our entire workshop floor is equipped with a dedicated anti-static (ESD) grounding system to ensure product safety.
◆ Backed by advanced equipment, stringent quality control systems, and continuous technological innovation, our products are widely adopted in consumer electronics, industrial control, smart home applications, and beyond, earning extensive recognition and trust from clients worldwide.
◆ Furthermore, our seasoned R&D team stands ready to provide rapid and efficient new product development support, offering comprehensive hardware and software design solutions tailored to customer needs.
Exhibition
 |
 |
 |
|||
|
|
|
 |
 |
 |
|||
|
|
|
 |
 |
 |
|||
|
|
|
Our Certificate
The company has maintained its ISO 9001 and ISO 14001 certifications since 2017–2018, and further expanded its credentials by securing IATF 16949 and ISO 13485 between 2019 and 2020.
| Product Applications |
Thanks to its compact 2.0-inch form factor, low pin-count SPI interface, and ST7789V driver with broad MCU/SoC library support, the TST020QVHS-06B is well suited for space-constrained embedded designs where a full-color graphical HMI is required without the routing complexity of a parallel RGB bus.
Typical applications include:
Portable and handheld instruments — multimeters, gas detectors, thermal imagers, and handheld test equipment operating in the -20℃ to +70℃ range
Industrial control panels — compact HMI terminals, PLC operator interfaces, sensor readout units, and status display modules
Smart home and IoT devices — thermostat panels, smart locks, air-quality monitors, and appliance control displays
Wearable and battery-powered devices — fitness trackers, medical patches, and portable monitors, where low interface overhead reduces MCU resource usage
Consumer electronics — MP3 players, handheld game consoles, smart remote controls, and audio equipment displays
Embedded development and prototyping — evaluation boards and maker projects using ESP32, STM32, Arduino, and Raspberry Pi platforms
| Packing & Delivery |
| FAQ |
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
Have any customize requirements, please feel free to contact us.
