12.3 inch IPS TFT (1920x720)

Home >  Products >  IPS LCD Display Modules >  12.3 inch IPS TFT (1920x720)

ALL PRODUCTS

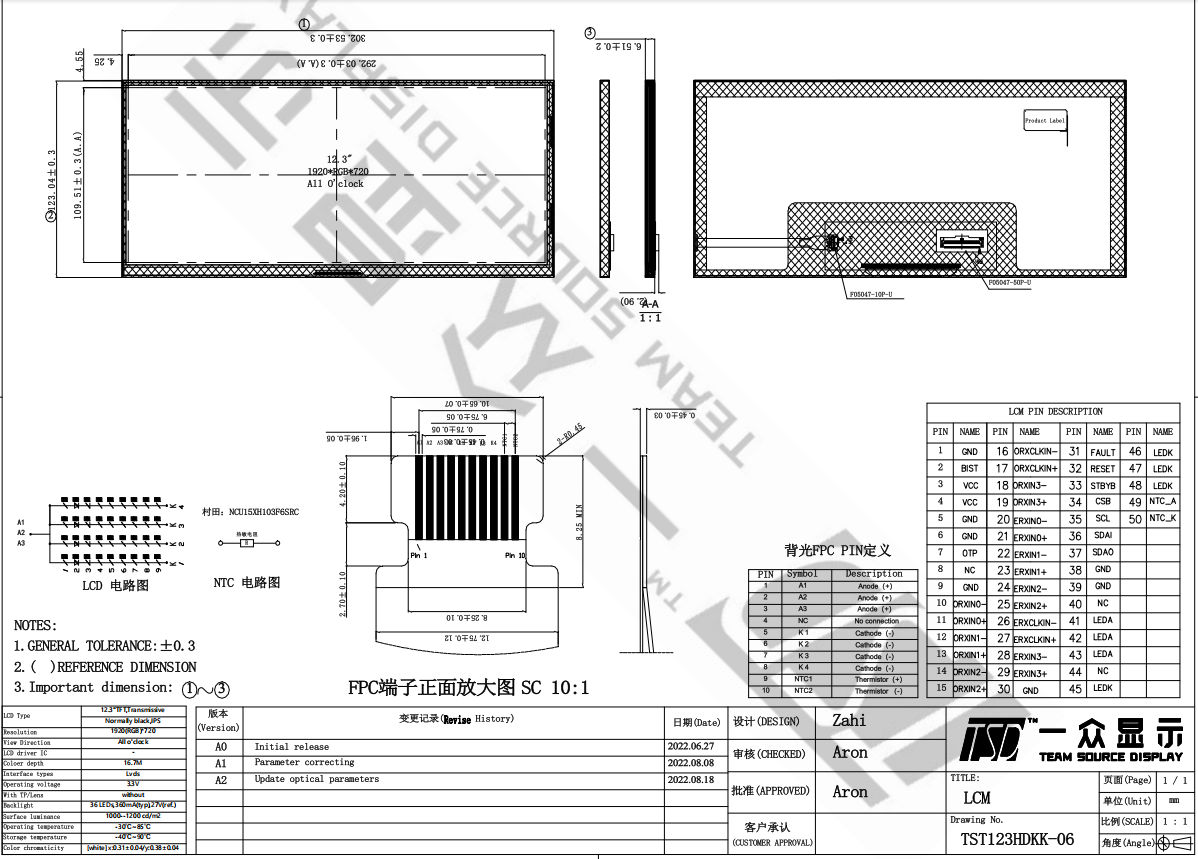

12.3'' 1920x720 ips lcd screen Automotive display LVDS Interface High brightness 12.3 inch tft lcd module

LCD Type a-Si TFT,Transmissive,Normally black
LCD Size 12.3
Resolution (W x H) 1920(H)x720(V)
Outline size 238.6(W)x175.8(H)x6.5(D)mm
Active Area 292.03(H)x109.51(V)
Pixel Pitch 0.1521 (H)x0.1521 (V)
Viewing Direction ALL o'clock
Color Depth 16.7M
Pixel Arrangement RGB-stripe
Backlight Type White LED
Luminance 800~1000
LCD Driver IC
Interface Type LVDS
Brand:
TSD
Spu:
TST123HDKK-06
Appurtenance:
  • Overview
  • Related Products


12.3'' 1920x720 ips lcd screen Automotive display LVDS Interface High brightness 12.3 inch tft lcd module

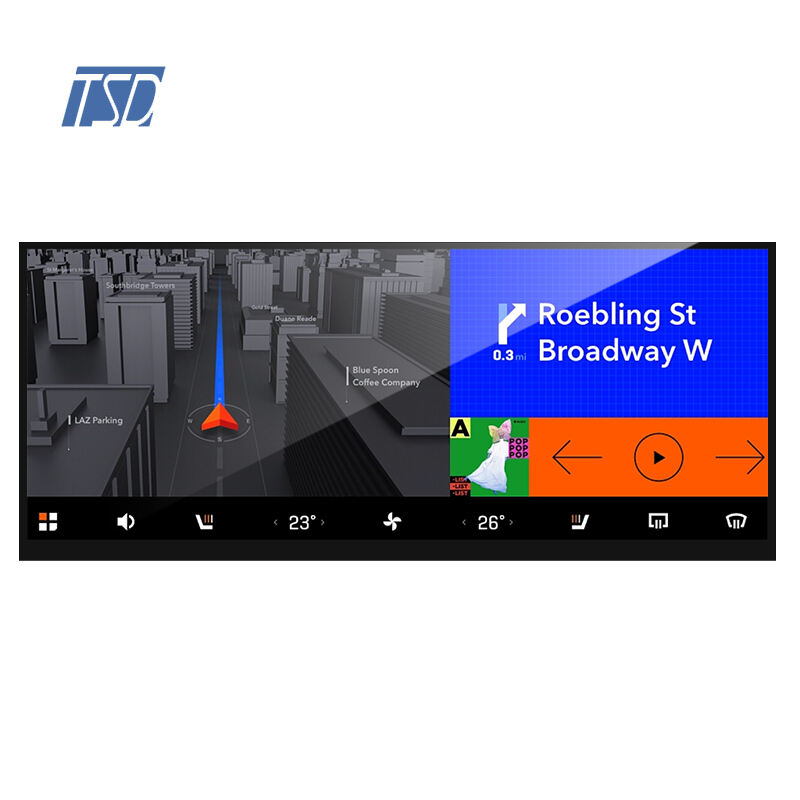

It is an absolute masterpiece of a 12.3-inch car TFT LCD module. What you get now in high 1920x720 resolution are clear, smooth, delicate images that realistically convey vehicle information. High brightness features are not afraid of strong light, and can be clearly seen under the direct sunlight outdoors. Specially adapted to the car scene, stable and reliable, no matter navigation map, driving data or multimedia entertainment screen, can be perfectly displayed, greatly improve the driving experience.


This is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses a-Si and transmissive TFT as a switching device with normal-black technology. It is composed of a TFT LCD panel, driver IC and back-light. The TFT LCD has12.3 inch with 1920 x 720 resolution and RoHS directive.

Features
12.3 (8:3 diagonal) inch configuration
Landscape type
Fail detect function
Parallel RGB 8 bits (16.7M)
LCD Type a-Si TFT,Transmissive,Normally black
LCD Size 12.3
Resolution (W x H) 1920(H)x720(V)
Outline size 238.6(W)x175.8(H)x6.5(D)mm
Active Area 292.03(H)x109.51(V)
Pixel Pitch 0.1521 (H)x0.1521 (V)
Viewing Direction ALL o'clock
Color Depth 16.7M
Pixel Arrangement RGB-stripe
Backlight Type White LED
Luminance 800~1000
LCD Driver IC
Interface Type LVDS




Have any customize requirements, please feel free to contact us.
