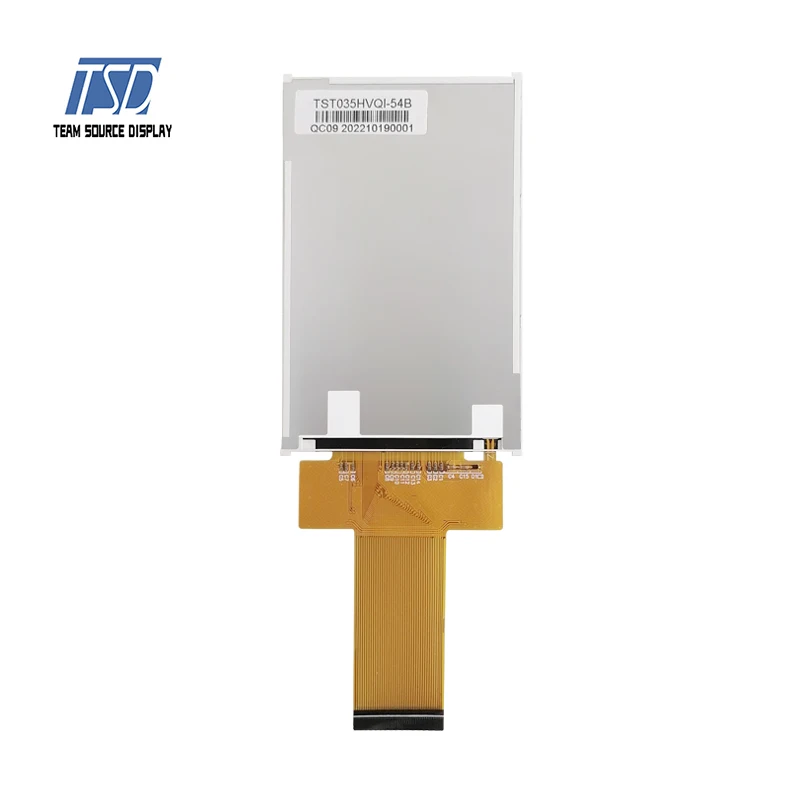

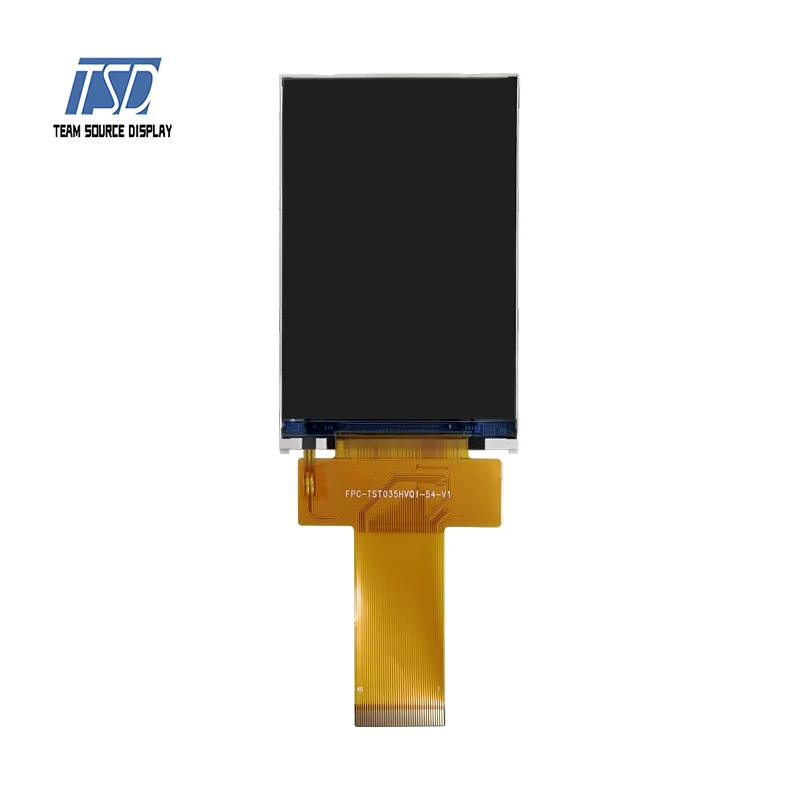

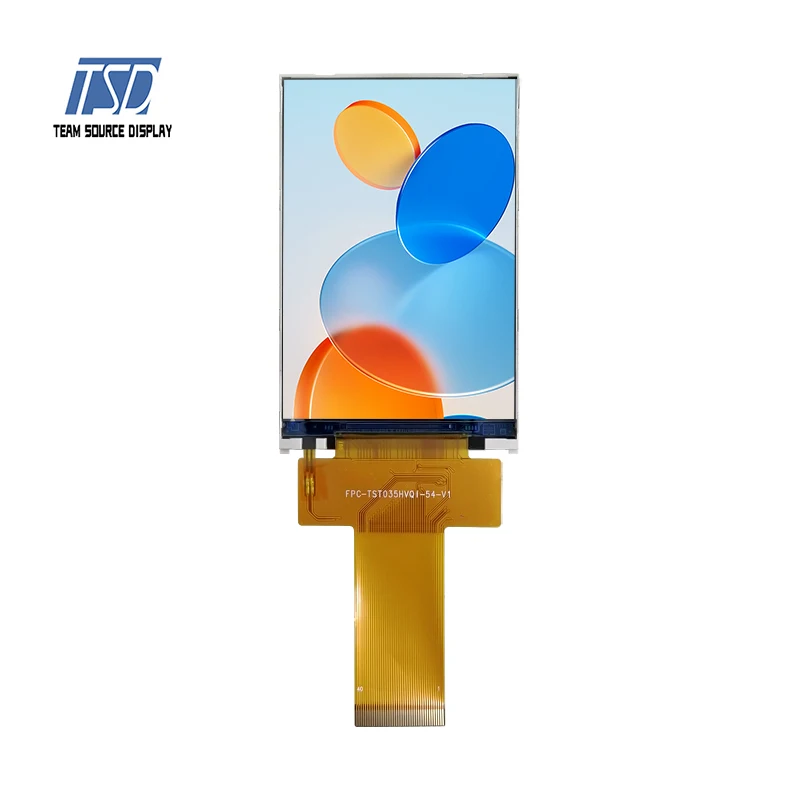

TSD 3.5 Inch High Brightness Outdoor Sunlight Readable MCU SPI SPI+RGB Interface 320x480 Resolution IPS TFT LCD Display Module
|
Model Number
|
TST035HVQI-54B
|
|
Display Type
|
3.5 Inch TFT LCD Display Module
|
|
Resolution
|
320xRGBx480
|
|

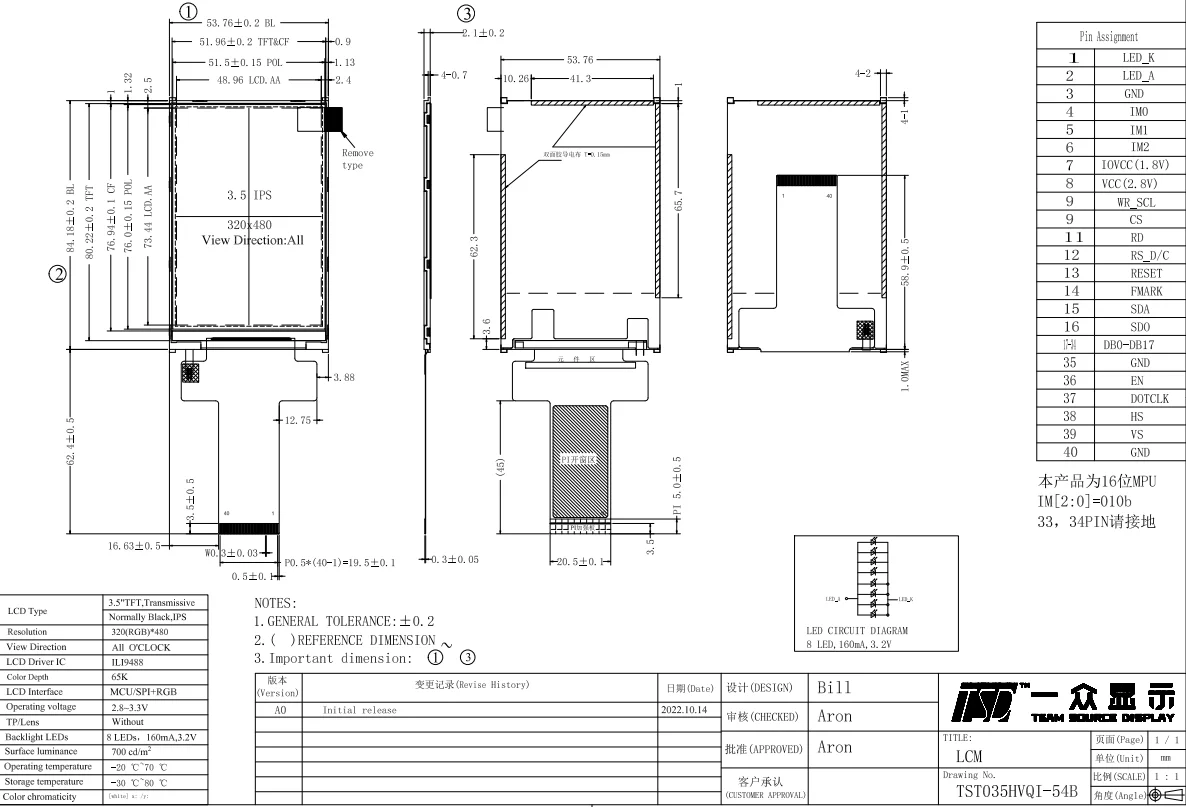

Outline Size
|
53.76x84.18x2.1(mm)
|
|
Active Size
|
48.96x73.44(mm)
|
|
View Direction
|
All
|
|
Interface
|
MCU/SPI/SPI+RGB
|
|
Surface Lumiannce
|
700(nits)
|
|
Driver IC
|
ILI9488
|
Brand:
TSD
Spu:
TST035HVQI-54B
- Overview
- Related Products
3.5'' 3.5 Inch 320xRGBx480 Resolution MCU SPI SPI+RGB Interface IPS TFT LCD Display Module |
||
Model Number |
TST035HVQI-54B |
|
Display Type |
3.5 Inch TFT LCD Display Module |
|
Resolution |
320xRGBx480 |
|
Outline Size |
53.76x84.18x2.1(mm) |
|
Active Size |
48.96x73.44(mm) |
|
View Direction |
All |
|
Interface |
MCU/SPI/SPI+RGB |
|
Surface Lumiannce |
700(nits) |
|
Driver IC |
ILI9488 |
|
Operating Temperature |
-20--+70/-30--+85(℃) |
|
Storage Temperature |
-30--+80/-40--+90(℃) |
|
Brand |
TSD |
|
Custom Service |
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
|
Have any customize requirements, please feel free to contact us.
TSD-Provide Best Products with Best Services.
