TSD 4'' 4 Inch 480x800 Resolution RGB Interface ST7701S Driver IC IPS TFT LCD Display Module
This 4 inch IPS TFT LCD module is really good. Resolution of 480×800, so text and images are crisp and sharp. The RGB interface guarantees high rate delivery of color signals and makes colors optimal. ST7701S driver chip, stable performance and strong support for high resolution display, smooth picture, no stutter. IPS technology is ultra-wide viewing Angle, the viewing picture performance is excellent in all aspects Suitable for many devices with strict display requirements.
Brand:
TSD
Spu:
TST040WVBS-13
Appurtenance:
- Overview
- Related Products
4'' 4 Inch 480xRGBx800 Resolution SPI RGB Interface IPS TFT LCD Display Module |
||
Model Number |
TST040WVBS-13 |
|
Display Type |
4 Inch TFT LCD Display Module |
|
Resolution |
480xRGBx800 |
|

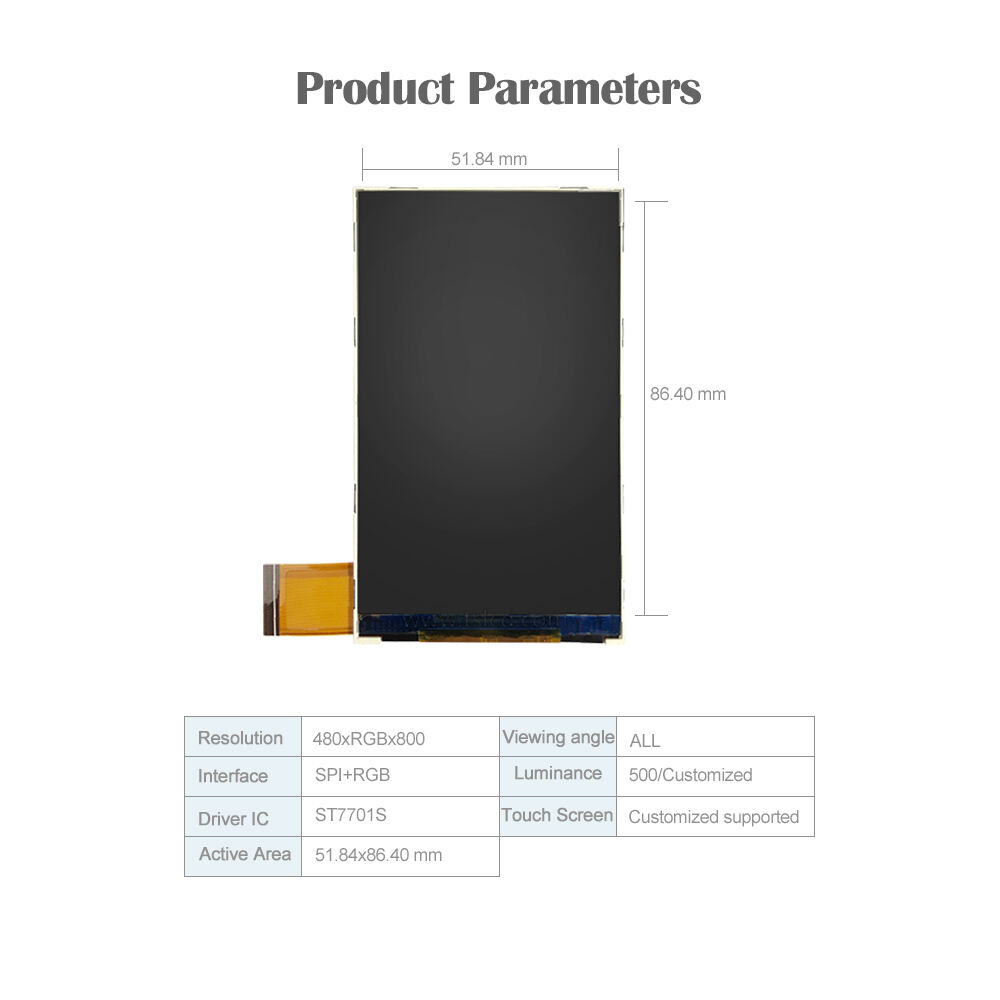

Outline Size |
57.14x96.85x2.10(mm) |
|
Active Size |
51.84x86.40(mm) |
|
View Direction |
All |
|
Interface |
SPI+RGB |
|
Surface Lumiannce |
500(nits) |
|
Driver IC |
ST7701S |
|
Operating Temperature |
-20--+70/-30--+85(℃) |
|
Storage Temperature |
-30--+80/-40--+90(℃) |
|
Brand |
TSD |
|
Custom Service |
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
|
Have any customize requirements, please feel free to contact us.
TSD-Provide Best Products with Best Services.
