TSD 4.3 Inch MIPI Interface 480x800 Resolution ILI9806E IPS TFT LCD Display Module
Well, this 4.3-inch IPS TFT LCD module is pretty decent. 180 pixel high resolution delivers a delicate, vivid picture with rich detail. MIPI interface data transmission speed and stability, reduce power consumption. The ILI9806E driver chip drives the display accurately, and the image color is still bright when using IPS technology, so the quality of images in large Angle is also very good. Widely used in intelligent vehicle, industrial control and other fields, provide quality visual experience.
Brand:
TSD
Spu:
TST043WVBI-130
Appurtenance:
- Overview
- Related Products

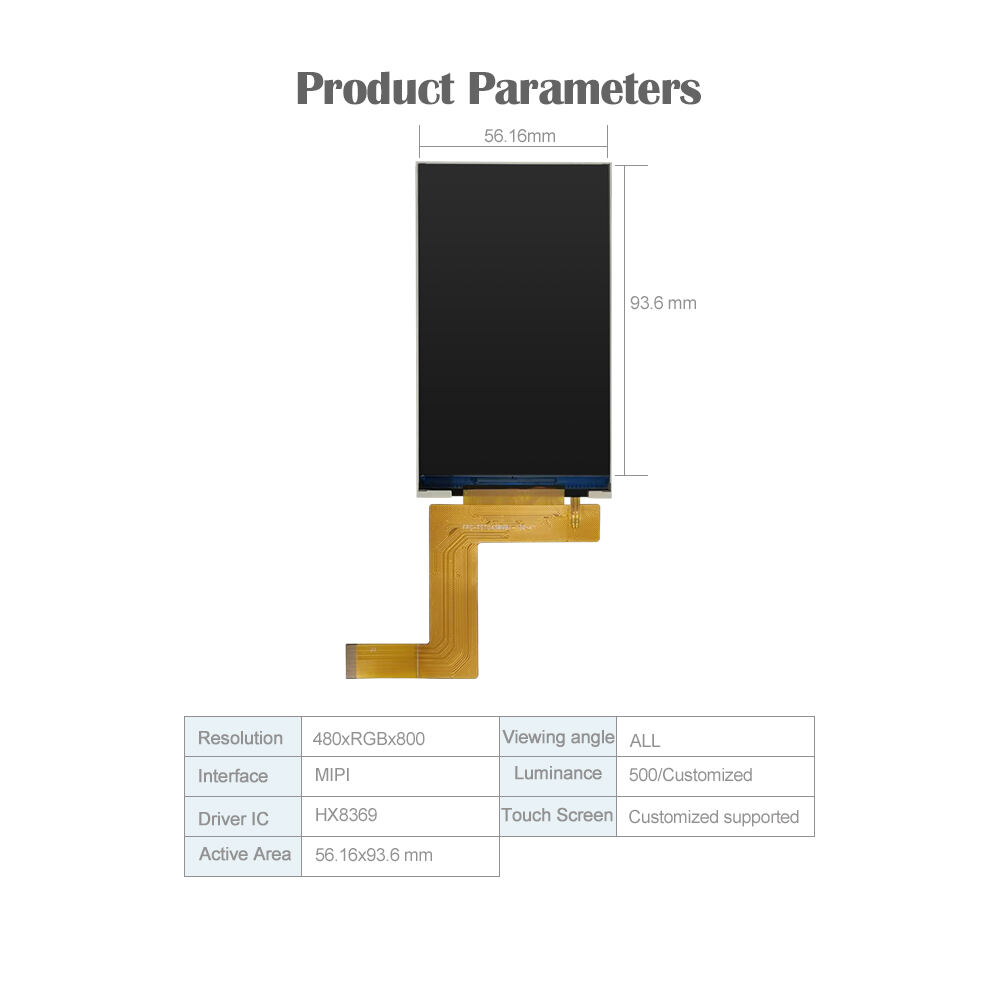

4.3'' 4.3 Inch 480xRGBx800 Resolution MIPI Interface IPS TFT LCD Display Module |
||
Model Number |
TST043WVBI-130 |
|
Display Type |
4.3 Inch TFT LCD Display Module |
|
Resolution |
480xRGBx800 |
|
Outline Size |
60.9x104.5x1.9 mm |
|
Active Size |
56.16x93.6 mm |
|
View Direction |
All |
|
Interface |
MIPI |
|
Surface Lumiannce |
500(nits) |
|
Driver IC |
ILI9806E |
|
Operating Temperature |
-20--+70/-30--+85(℃) |
|
Storage Temperature |
-30--+80/-40--+90(℃) |
|
Brand |
TSD |
|
Custom Service |
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
|
Have any customize requirements, please feel free to contact us.
TSD-Provide Best Products with Best Services.
