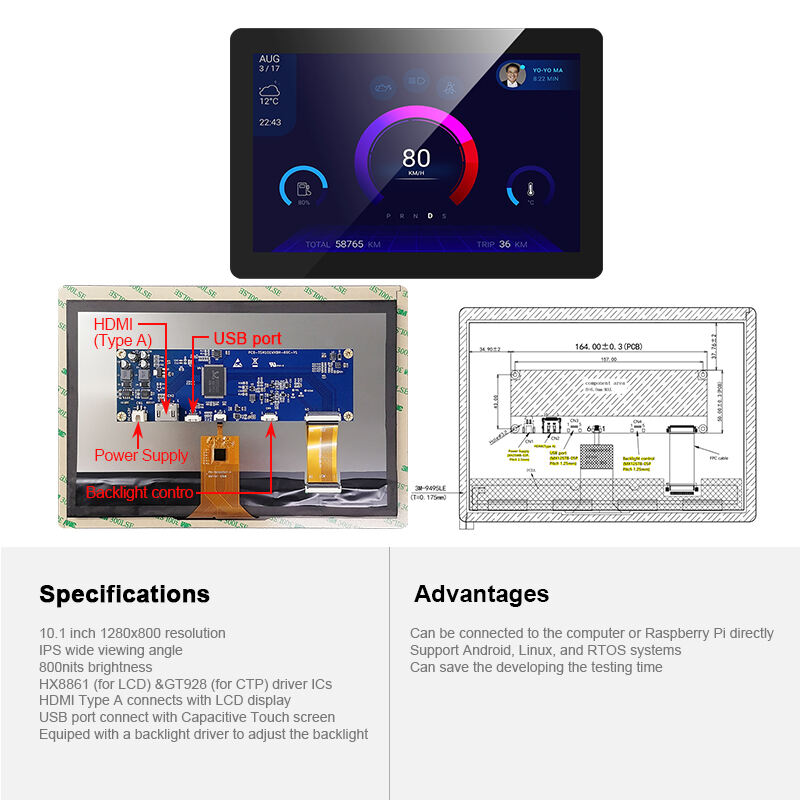

10.1 inch 1280*800 HDMI board USB interface CTP IPS Screen LVDS TFT LCD Display Modules
|
LCD Type |
10.1 inch,a-Si TFT,Transmissive,Normally black,IPS |
|
Resolution (W x H) |
1280(RGB) ×800 pixel |
|

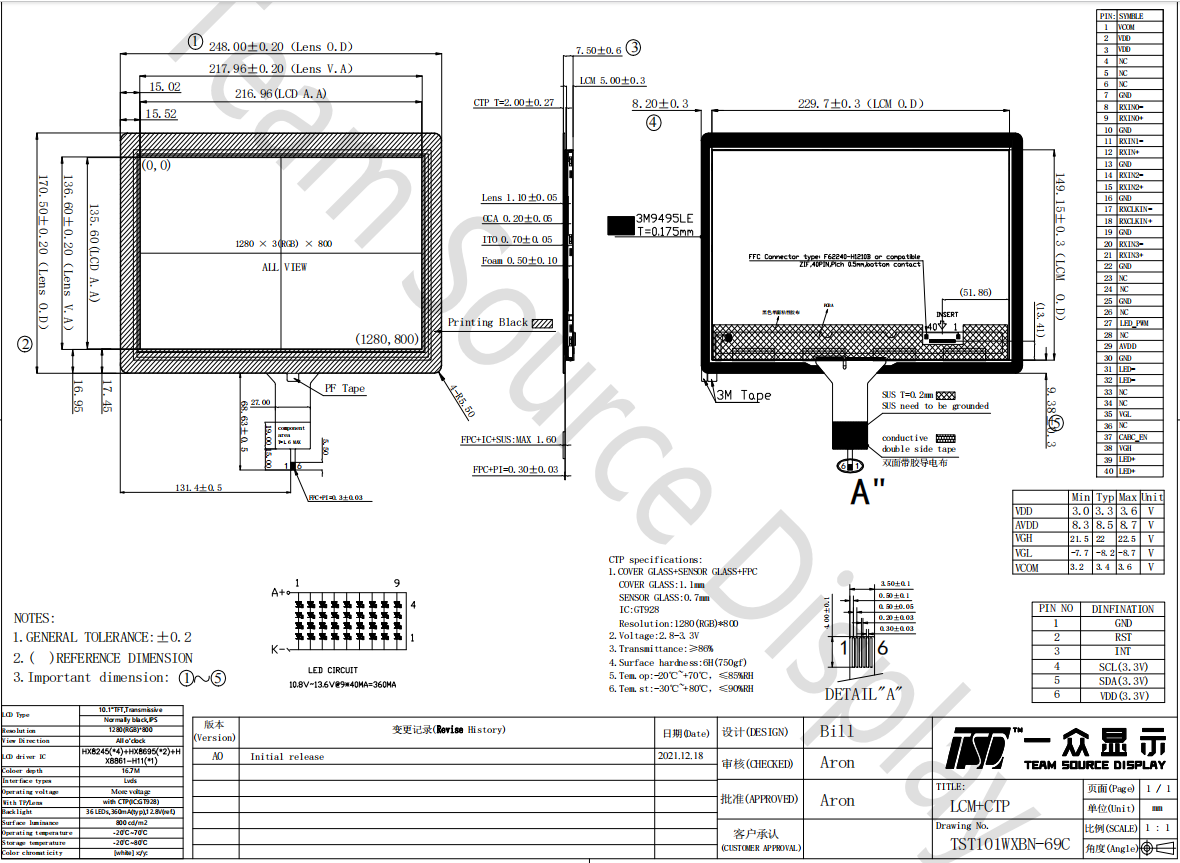

CTP+LCM size |
248.0(H) x 170.5(V) x 7.5(T) mm |
|
LCM size |
229.7(H) x149.15(V) x 5.0(T) mm |
|
Active Area |
216.96 (H) x 135.6( V) mm |
|
Pixel Pitch |
0.1695(H)x0.1695(V) mm |
|
Viewing Direction |
ALL o’clock |
|
Color Depth |
16.7M |
|
Pixel Arrangement |
RGB-stripe |
|
Backlight Type |
36 LED，360mA |
|
Surface Luminance |
Min 700,Typ 800 cd/m2 |
|
Surface Treatment |
Hardness: 6H |
|
Interface Type |
LVDS |
|
Input Voltage |
3.3 V |
|
With/Without TP |
With CTP(GT928) |
- Overview
- Related Products

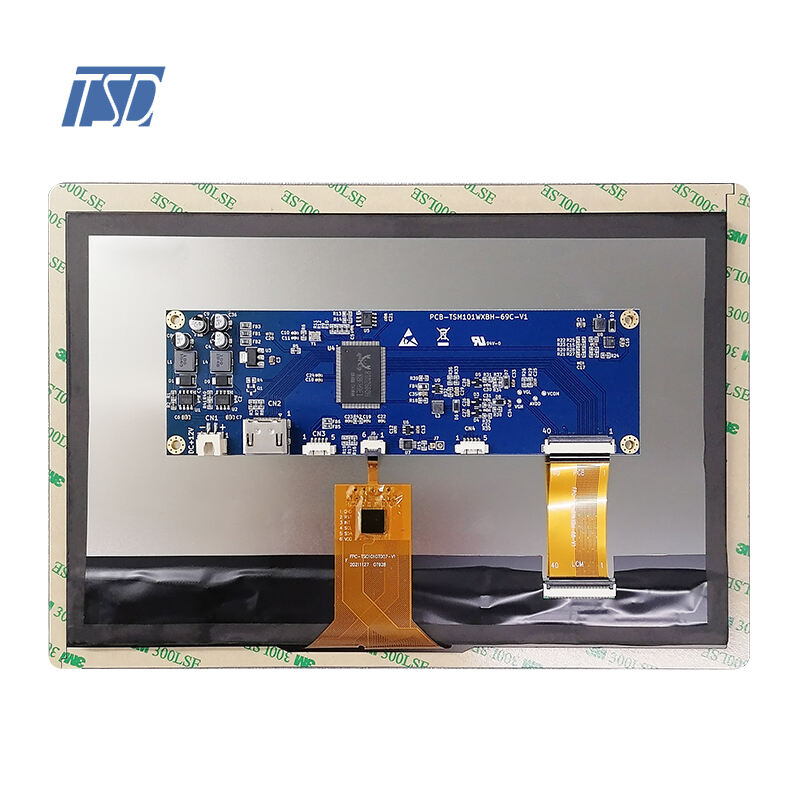

10.1 inch 1280*800 HDMI board USB interface CTP IPS Screen LVDS TFT LCD Display Modules
LCD Type |
10.1 inch,a-Si TFT,Transmissive,Normally black,IPS |
Resolution (W x H) |
1280(RGB) ×800 pixel |
CTP+LCM size |
248.0(H) x 170.5(V) x 7.5(T) mm |
LCM size |
229.7(H) x149.15(V) x 5.0(T) mm |
Active Area |
216.96 (H) x 135.6( V) mm |
Pixel Pitch |
0.1695(H)x0.1695(V) mm |
Viewing Direction |
ALL o’clock |
Color Depth |
16.7M |
Pixel Arrangement |
RGB-stripe |
Backlight Type |
36 LED，360mA |
Surface Luminance |
Min 700,Typ 800 cd/m2 |
Surface Treatment |
Hardness: 6H |
Interface Type |
LVDS |
Input Voltage |
3.3 V |
With/Without TP |
With CTP(GT928) |
Have any customize requirements, please feel free to contact us.
