TSD 2.1 inch 480x480 High Brightness Round Screen SPI RGB Interface Round IPS TFT LCD Display Modules
|
LCD type
|
2.1 inch round IPS TFT LCD display
|
|
Part No.
|
TST020WVBS-09
|
|
Resolution
|
480xRGBx480
|
|
Viewing angle
|
IPS
|
|
Drive IC
|
ST7701S
|
|
Interface
|
MCU
|
|
Brightness
|
600 cd/m2
|
|
Operation temperature
|
-20℃ to +70℃
|
|
Storage temperature
|
-30℃ to +80℃
|
- Overview
- Related Products

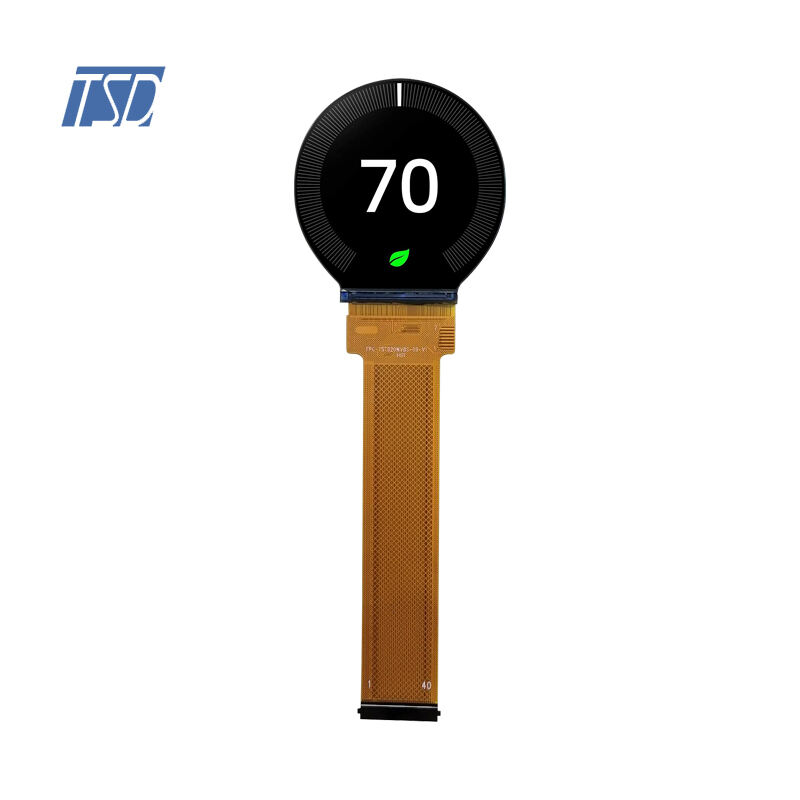

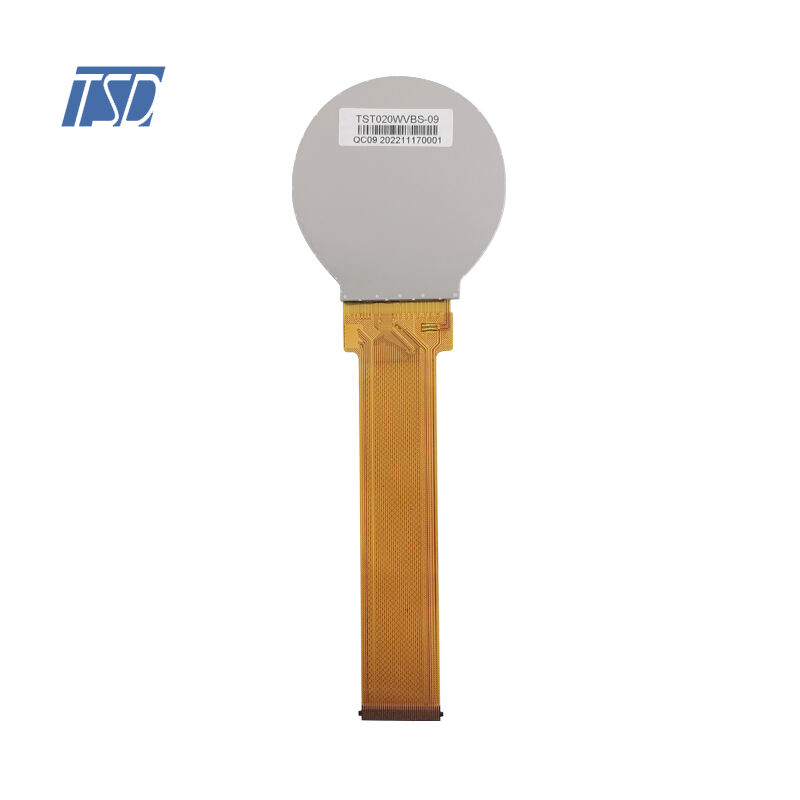

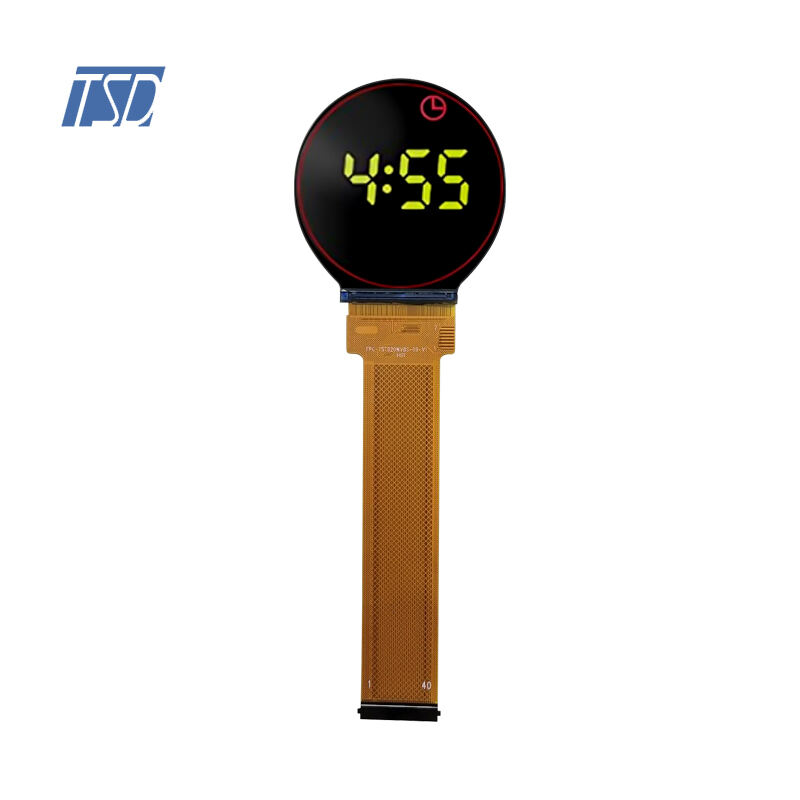

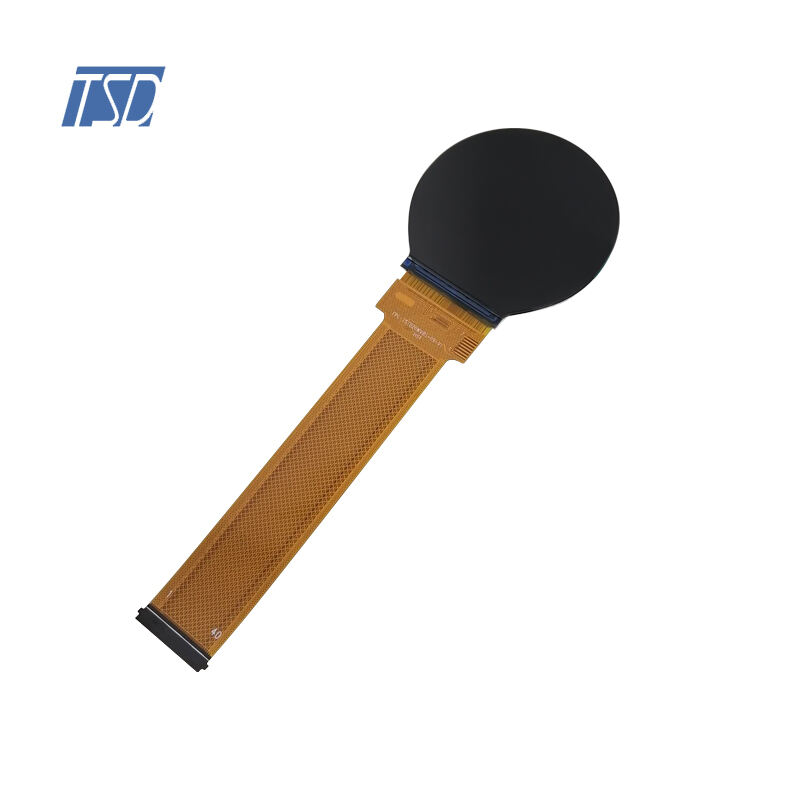

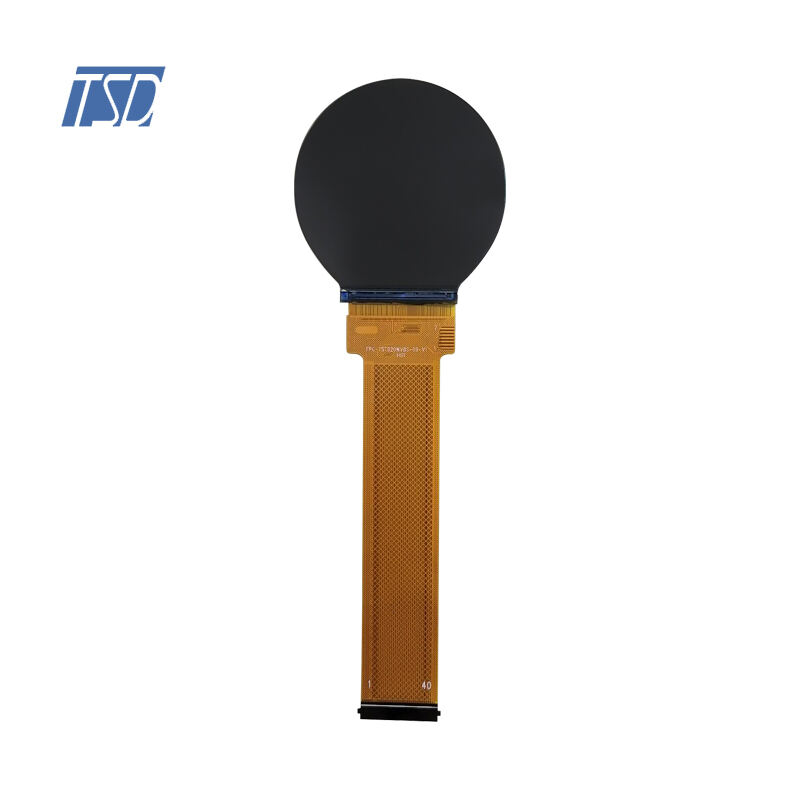

TST020WVBS-08 is a 2.1 inch round TFT LCD. The 2.1'' round color display is 480x480 resolution. The 2.1 inch round LCD module is IPS wide viewing angle, and it supports MCU interface. The 2.1 inch LCD screen is 350nits brightness now, but we can customize a high brightness round screen for you. We can use higher brightness backlight lamps or make some other adjustments to the current backlight.
In addition, we can produce 2.1 inch round touch screen also. Both capacitive touch panel and resistive touch panel are supported, and we can make different color, size, and shape of the 2.1'' touch panel.
The 2.1 inch round display is very suitable for smart wearable devices like smart watch and medical watch.
LCD type |
2.1 inch round IPS TFT LCD display |
Part No. |
TST020WVBS-08 |
Resolution |
480xRGBx480 |
Viewing angle |
IPS |
Drive IC |
ST7701S |
Interface |
MCU |
Brightness |
600 cd/m2 |
Operation temperature |
-20℃ to +70℃ |
Storage temperature |
-30℃ to +80℃ |
Brand |
TSD |
Custom Service |
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
Have any customize requirements, please feel free to Contact Us.
