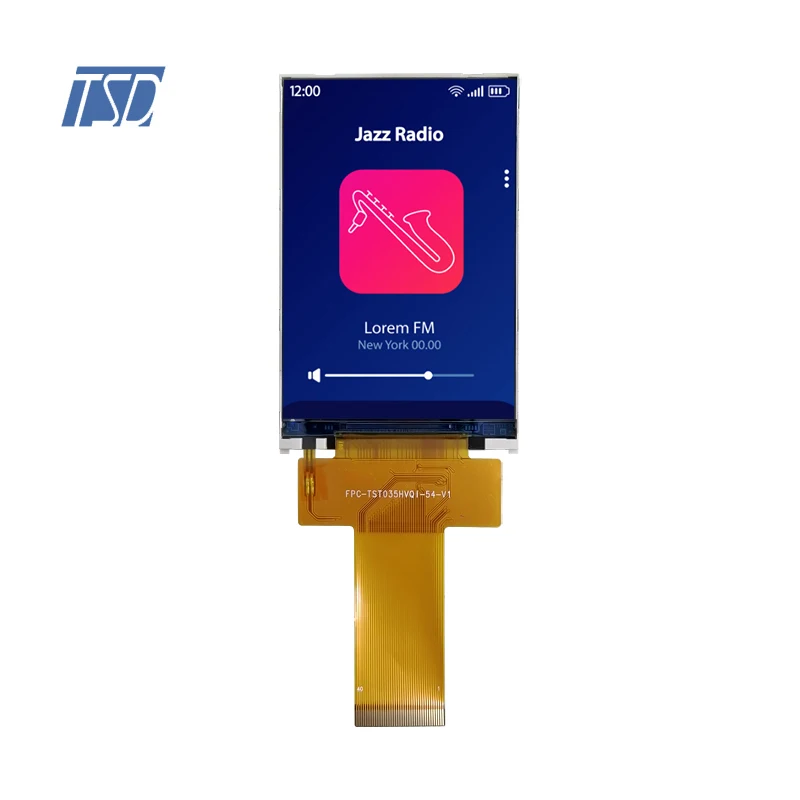

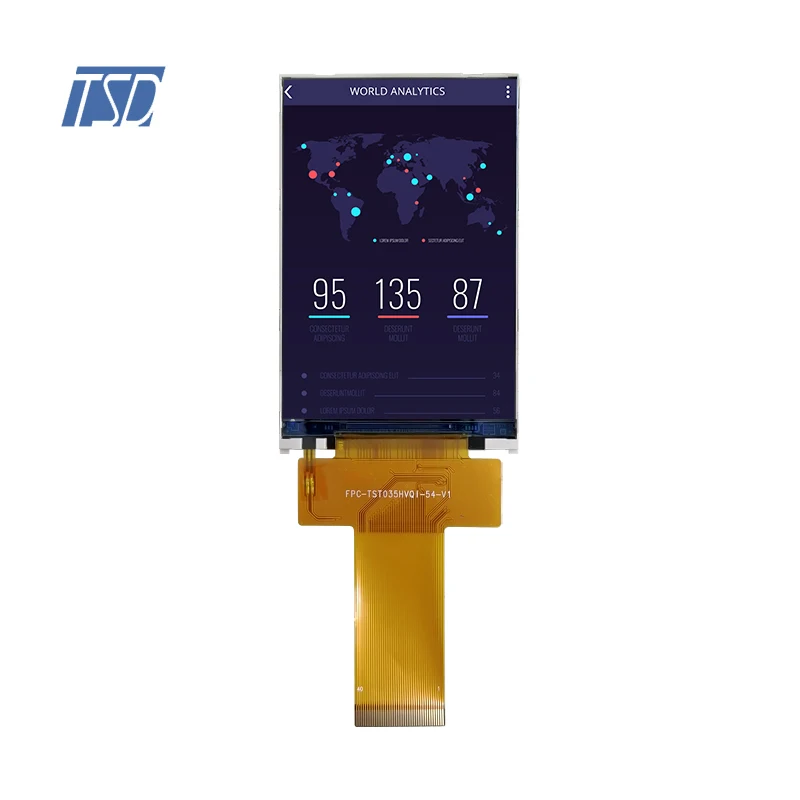

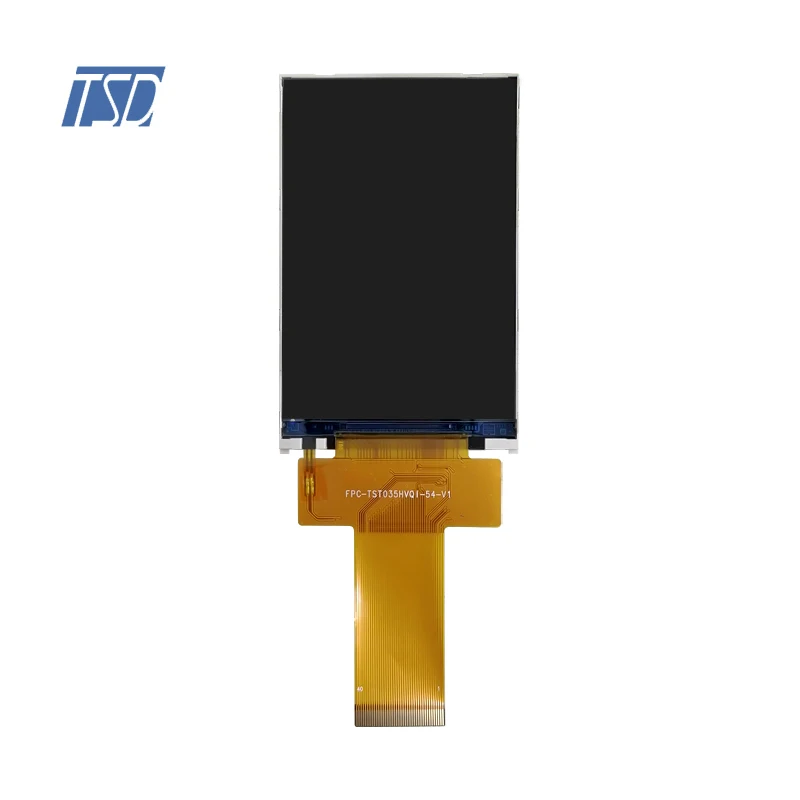

TSD 3.5 Inch 320x480 Resolution MCU SPI SPI+RGB Interface ILI9488 Driver IC IPS TFT LCD Display Module
The module utilizes a 3.5-inch IPS panel (All View Direction) with 320 x 480 (RGB) HVGA resolution for enhanced clarity over QVGA screens. Boasting 480 nits of brightness, it ensures optimal visibility even in outdoor environments. The integrated ILI9488 driver IC guarantees display stability and vivid color performance.
- Overview
- Related Products
1. More than 20 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people- oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
| About this product |
3.5'' 3.5 Inch 320xRGBx480 Resolution MCU SPI SPI+RGB Interface IPS TFT LCD Display Module |
||
Model Number |
TST035HVQI-54 |
|
Display Type |
3.5 Inch TFT LCD Display Module |
|
Resolution |
320xRGBx480 |
|

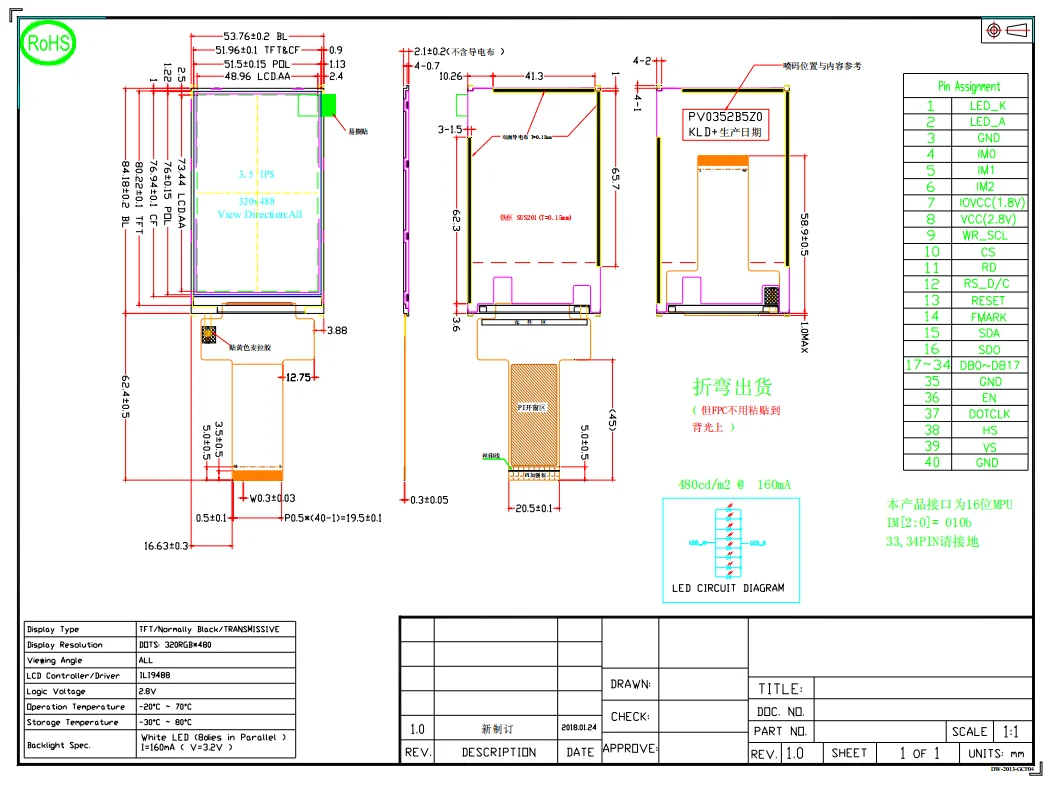

Outline Size |
53.76x84.18x2.1(mm) |
|
Active Size |
48.96x73.44(mm) |
|
View Direction |
All |
|
Interface |
MCU/SPI/SPI+RGB |
|
Surface Lumiannce |
480(nits) |
|
Driver IC |
ILI9488 |
|
Operating Temperature |
-20--+70/-30--+85(℃) |
|
Storage Temperature |
-30--+80/-40--+90(℃) |
|
Brand |
TSD |
|
Custom Service |
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
|
| About US |
 |
Who is TSD? TEAM SOURCE DISPLAY (TSD) was established in 2004.
Head office located in Shenzhen,
factory is in Dongguan.
TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development,
single-chip production and sales.
|
Our Factory
◆ Operates Class 1000 & 100 cleanrooms with auto humidity control and full ESD grounding. Fully imported automation ensures high-precision, end-to-end production for consistent, reliable products. our entire workshop floor is equipped with a dedicated anti-static (ESD) grounding system to ensure product safety.
◆ Backed by advanced equipment, stringent quality control systems, and continuous technological innovation, our products are widely adopted in consumer electronics, industrial control, smart home applications, and beyond, earning extensive recognition and trust from clients worldwide.
◆ Furthermore, our seasoned R&D team stands ready to provide rapid and efficient new product development support, offering comprehensive hardware and software design solutions tailored to customer needs.
Exhibition
 |
 |
 |
|||
|
|
|
 |
 |
 |
|||
|
|
|
 |
 |
 |
|||
|
|
|
Our Certificate
The company has maintained its ISO 9001 and ISO 14001 certifications since 2017–2018, and further expanded its credentials by securing IATF 16949 and ISO 13485 between 2019 and 2020.
| Product Applications |
With its high-brightness full-view display and flexible customization, the module is well-suited for:
Industrial Automation: Industrial HMI touchscreens and test equipment displays for wide-temp and multi-angle use.
Handheld Devices: PDAs, outdoor detectors, and walkie-talkies ensuring sunlight readability.
Smart Home & Security: Smart control panels, video door phones, and high-end thermostat panels.
Consumer Electronics & IoT: Mini game consoles, medical auxiliary screens, EV charger displays, and interactive IoT terminals.
| Packing & Delivery |
| FAQ |
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
