TSD RGB-24Bit interface ST7282 4.3 inch 480*272 ips tft lcd display module
|
LCD type
|
4.3 inch IPS TFT
|
|
Part number
|
TST043WQHS-72
|
|
Resolution
|
480xRGBx 272 resolution
|
|
Active Area
|
95.04x53.86 mm
|
|
Outline dimension
|
105.50x67.20x2.95 mm
|
|
Viewing direction
|
All
|
|
LCD Controller/Driver
|
ST7282
|
|
Interface type
|
24 bits RGB
|
|
Brightness
|
500 nits
|
Brand:
TSD
Spu:
TST043WQHS-72
Appurtenance:
- Overview
- Related Products

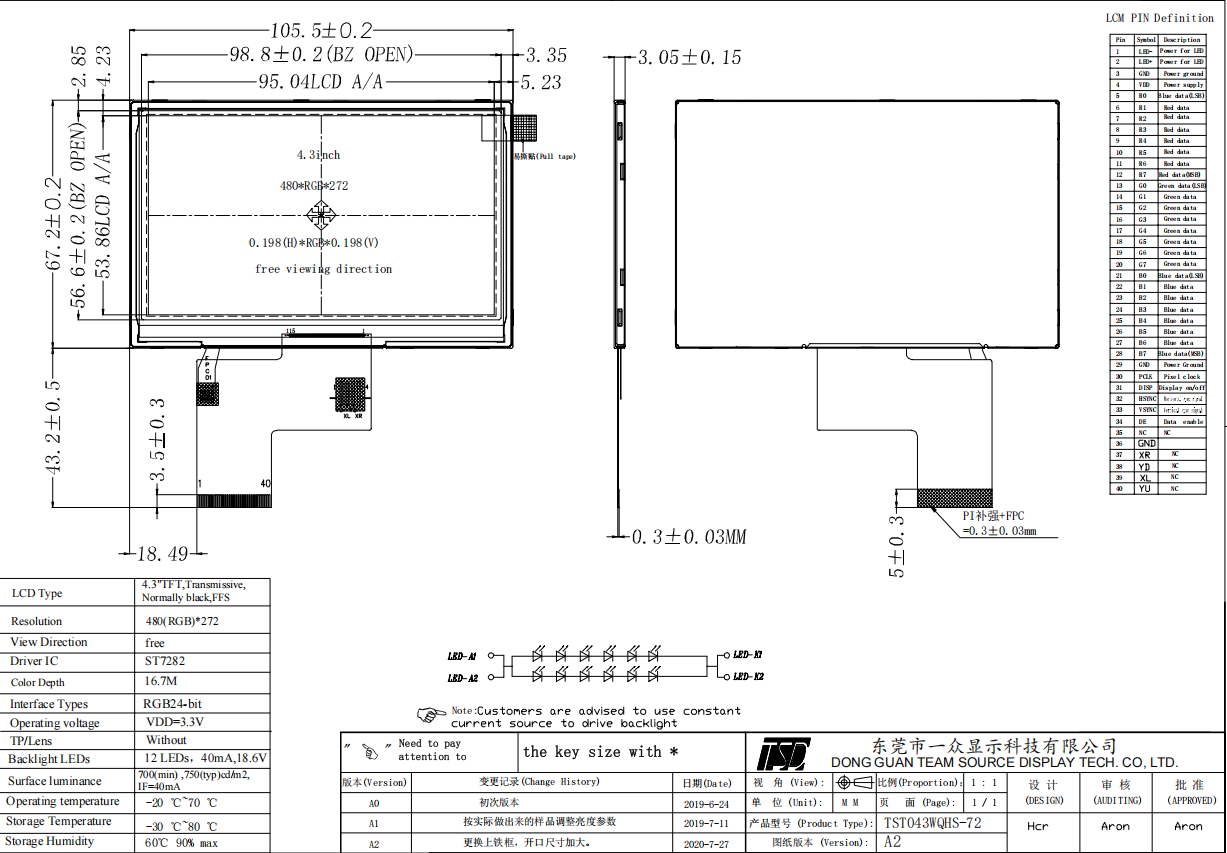

TST043WQHS-72( is a transmissive type color active matrix liquid crystal display(LCD) which uses amorphous thin film transistor(TFT) as switching devices.
This product is composed of a TFT LCD panel, a drive lC, a FPC, and a LED-backlight unit.
The active display area is 4.3 inches diagonally measured and the native resolution is 480*RGB*272.Features of this product are listed in the following table.
LCD type |
4.3 inch IPS TFT |
Part number |
TST043WQHS-72 |
Resolution |
480xRGBx 272 resolution |
Active Area |
95.04x53.86 mm |
Outline dimension |
105.50x67.20x2.95 mm |
Viewing direction |
All |
LCD Controller/Driver |
ST7282 |
Interface type |
24 bits RGB |
Brightness |
500 nits |
With/without TP |
Resistive touch panel/ capacitive touch panel available |
Operation temperature |
-20°C to 70°C |
Storage temperature |
-30°C to 80°C |
Have any customize requirements, please feel free to contact us.
