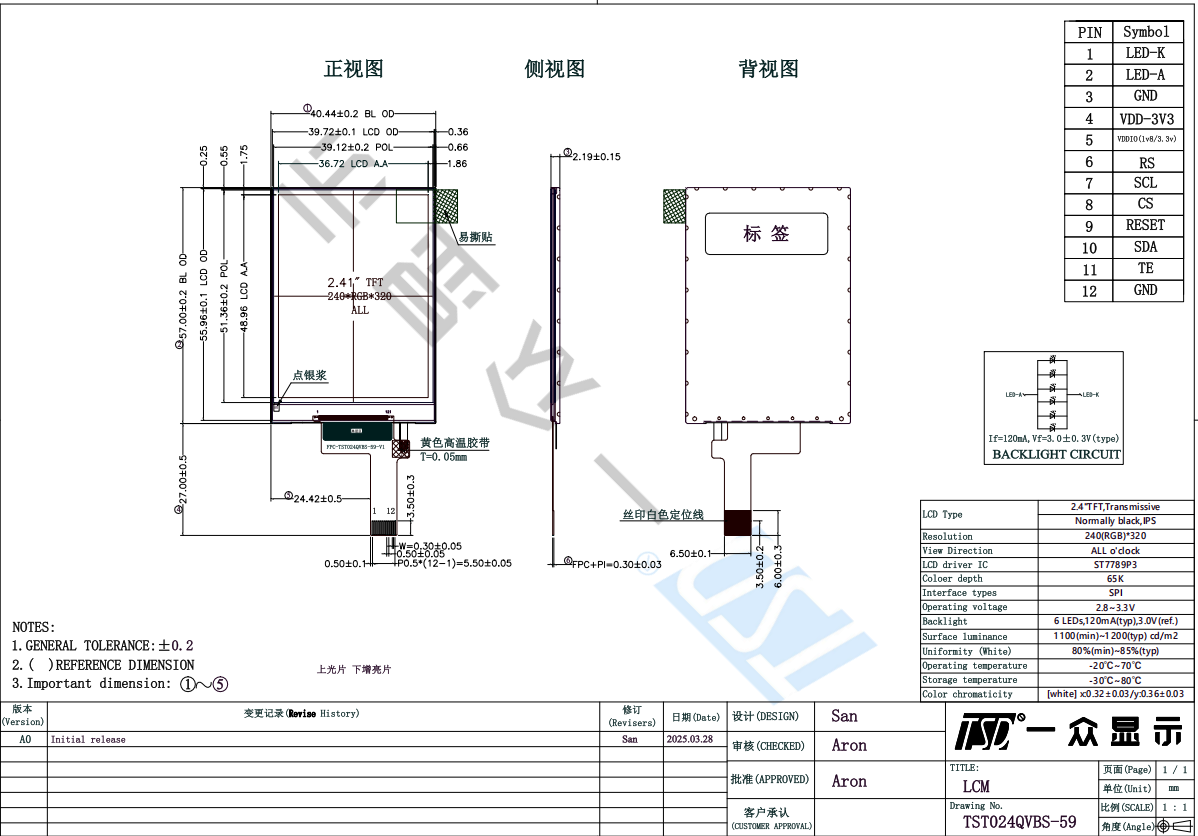

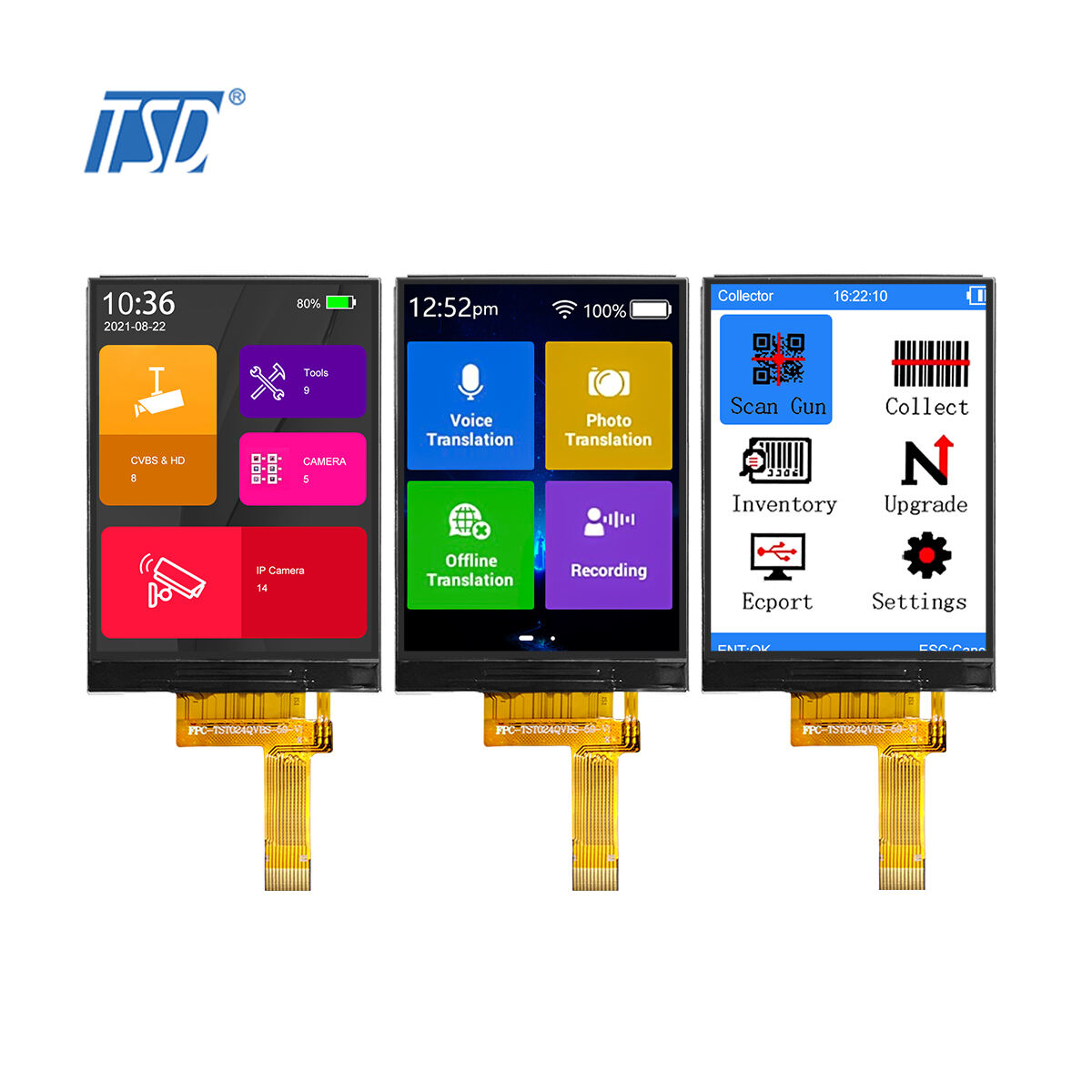

2.4 inch 240*320 High brightness 1200nits ST7789T3 SPI Interface IPS Screen Two Wheel Vehicle Dashboard Motorcycle EV Scooter TFT LCD Display Modules
|
LCD Type |
2.4"TFT,Transmissive Normally black,IPS |
|
Resolution |
240(RGB)*320 |
|
View Direction |
ALL o'clock |
|
LCD driver |
IC ST7789P3 |
|
Coloer depth |
65K |
|
Interface types |
SPI |
|
Operating voltage |
2.8~3.3V |
|
Backlight |
6 LEDs,1 20mA(typ),3.0V(ref.) |
|
Surface luminance |
1 1 00(min)~1 200(typ) cd/m2 |
|
Uniformity (White) |
80%(min)~85%(typ) |
|
Operating temperature |
-20℃~70℃ |
|
Storage temperature |
-30℃~80℃ |
|
Color chromaticity |
[white] x:0.32±0.03/y:0.36±0.03 |
- Overview
- Related Products
2.4 inch 240*320 High brightness 1200nits ST7789T3 SPI Interface IPS Screen Two Wheel Vehicle Dashboard Motorcycle EV Scooter TFT LCD Display Modules
LCD Type |
2.4"TFT,Transmissive Normally black,IPS |
Resolution |
240(RGB)*320 |
View Direction |
ALL o'clock |
LCD driver |
IC ST7789P3 |
Coloer depth |
65K |
Interface types |
SPI |
Operating voltage |
2.8~3.3V |
Backlight |
6 LEDs,1 20mA(typ),3.0V(ref.) |
Surface luminance |
1 1 00(min)~1 200(typ) cd/m2 |
Uniformity (White) |
80%(min)~85%(typ) |
Operating temperature |
-20℃~70℃ |
Storage temperature |
-30℃~80℃ |
Color chromaticity |
[white] x:0.32±0.03/y:0.36±0.03 |
Have any customize requirements, please feel free to contact us.
