5.48 Inch TFT LCD Display 1080x1920 Resolution LTPS MIPI Interface 650nits High Brightness All Viewing Angle IPS/Vertical Screen Module
Boasting a 1080×1920 resolution and 650 nits high brightness, this LTPS LCD module offers exceptional image quality and all-angle visibility. With a MIPI interface and VTT6130 driver IC, it ensures seamless integration into your PCB design. Its robust -20℃~70℃ operating temperature range makes it a reliable choice for both consumer and industrial applications.
- Overview
- Related Products
1. More than 20 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people- oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
| About this product |

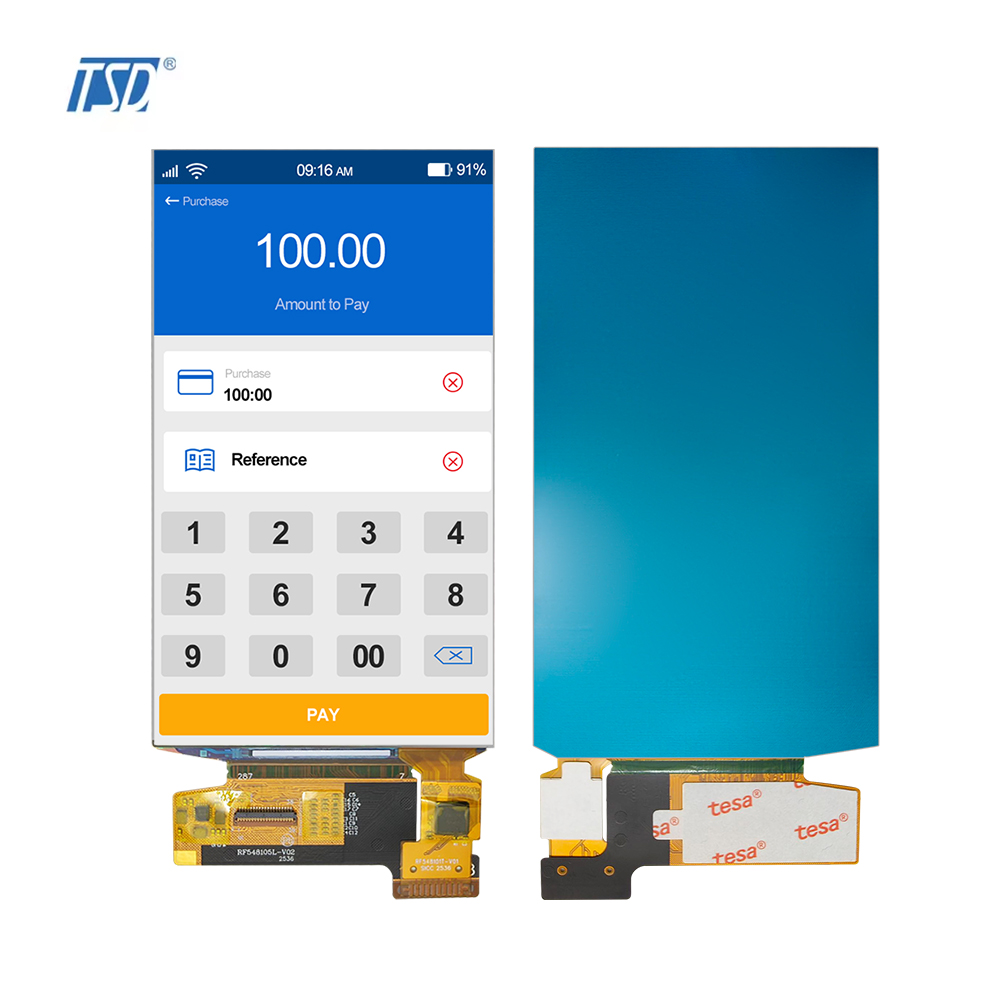

This 5.48" TFT LCD Panel is engineered for embedded systems requiring high resolution and low power consumption. Utilizing LTPS (Low-Temperature PolySilicon) technology, it offers superior electron mobility and higher pixel density compared to standard TFTs.
| Model Number | TSO055FHGK-30CO |
| LCD Type | 5.48" TFT |
| Resolution | 1080(RGB) × 1920 |
| View Direction | All o'clock |
| LCD Driver IC | VTTR6130 |
| Color Depth | 16.7M |
| Interface Types | Mipi |
| Operating Voltage | 3.3V |
| Surface Luminance | 650(typ) cd/m² |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -40°C ~ 80°C |
| Color Chromaticity | [white] x:TBD , y:TBD |
| About US |
 |
Who is TSD? TEAM SOURCE DISPLAY (TSD) was established in 2004.
Head office located in Shenzhen,
factory is in Dongguan.
TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development,
single-chip production and sales.
|
Our Factory
◆ Operates Class 1000 & 100 cleanrooms with auto humidity control and full ESD grounding. Fully imported automation ensures high-precision, end-to-end production for consistent, reliable products. our entire workshop floor is equipped with a dedicated anti-static (ESD) grounding system to ensure product safety.
◆ Backed by advanced equipment, stringent quality control systems, and continuous technological innovation, our products are widely adopted in consumer electronics, industrial control, smart home applications, and beyond, earning extensive recognition and trust from clients worldwide.
◆ Furthermore, our seasoned R&D team stands ready to provide rapid and efficient new product development support, offering comprehensive hardware and software design solutions tailored to customer needs.
Exhibition
 |
 |
 |
|||
|
|
|
 |
 |
 |
|||
|
|
|
 |
 |
 |
|||
|
|
|
Our Certificate
The company has maintained its ISO 9001 and ISO 14001 certifications since 2017–2018, and further expanded its credentials by securing IATF 16949 and ISO 13485 between 2019 and 2020.
| Product Applications |
Target Applications:
Industrial HMI: Rugged PDAs, logistics scanners, and handheld meters.
Smart Home & Security: In-wall touch panels, access control, and building automation.
Medical & Healthcare: Portable diagnostic tools and patient monitors.
Outdoor Equipment: GPS devices and industrial vehicle control panels requiring sunlight-readable screens.
| Packing & Delivery |
| FAQ |
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
Have any customize requirements, please feel free to contact us.
