TSD 1.9 Inch 170x320 MCU SPI Interface ST7789V2 IPS TFT LCD Display Module
The TST019QVBS-02 is a 1.9-inch IPS TFT LCD module with 170×RGB×320 resolution, 350 cd/m² brightness, and MCU/SPI interfaces (ST7789V2 + FT3327). Featuring a built-in touch panel and wide -20℃ to +70℃ operating range, it's ideal for e-cigarettes and compact smart devices. FPC, touch panel, pin definition, and HDMI board are customizable.
- Overview
- Related Products
1. More than 20 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people- oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
| About this product |
1.9 1.9'' Inch 170xRGBx320 Resolution MCU Interface IPS TFT LCD Display Module With On Cell Touch Panel |
||
LCD type |
1.9 inch smart watch LCD display |
|
Part No. |
TST019QVBS-02 |
|
Resolution |
170xRGBx320 |
|
Viewing angle |
IPS |
|
Drive IC |
ST7789V2&FT3327 |
|
Interface |
MCU/SPI |
|
Brightness |
350 cd/m2 |
|
Operation temperature |
-20℃ to +70℃ |
|
Storage temperature |
-30℃ to +80℃ |
|
Brand |
TSD |
|
Custom Service |
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
|
| About US |
 |
Who is TSD? TEAM SOURCE DISPLAY (TSD) was established in 2004.
Head office located in Shenzhen,
factory is in Dongguan.
TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development,
single-chip production and sales.
|
Our Factory
◆ Operates Class 1000 & 100 cleanrooms with auto humidity control and full ESD grounding. Fully imported automation ensures high-precision, end-to-end production for consistent, reliable products. our entire workshop floor is equipped with a dedicated anti-static (ESD) grounding system to ensure product safety.
◆ Backed by advanced equipment, stringent quality control systems, and continuous technological innovation, our products are widely adopted in consumer electronics, industrial control, smart home applications, and beyond, earning extensive recognition and trust from clients worldwide.
◆ Furthermore, our seasoned R&D team stands ready to provide rapid and efficient new product development support, offering comprehensive hardware and software design solutions tailored to customer needs.
Exhibition
 |
 |
 |
|||
|
|
|
 |
 |
 |
|||
|
|
|
 |
 |
 |
|||
|
|
|
Our Certificate
The company has maintained its ISO 9001 and ISO 14001 certifications since 2017–2018, and further expanded its credentials by securing IATF 16949 and ISO 13485 between 2019 and 2020.
| Product Applications |
Applications:

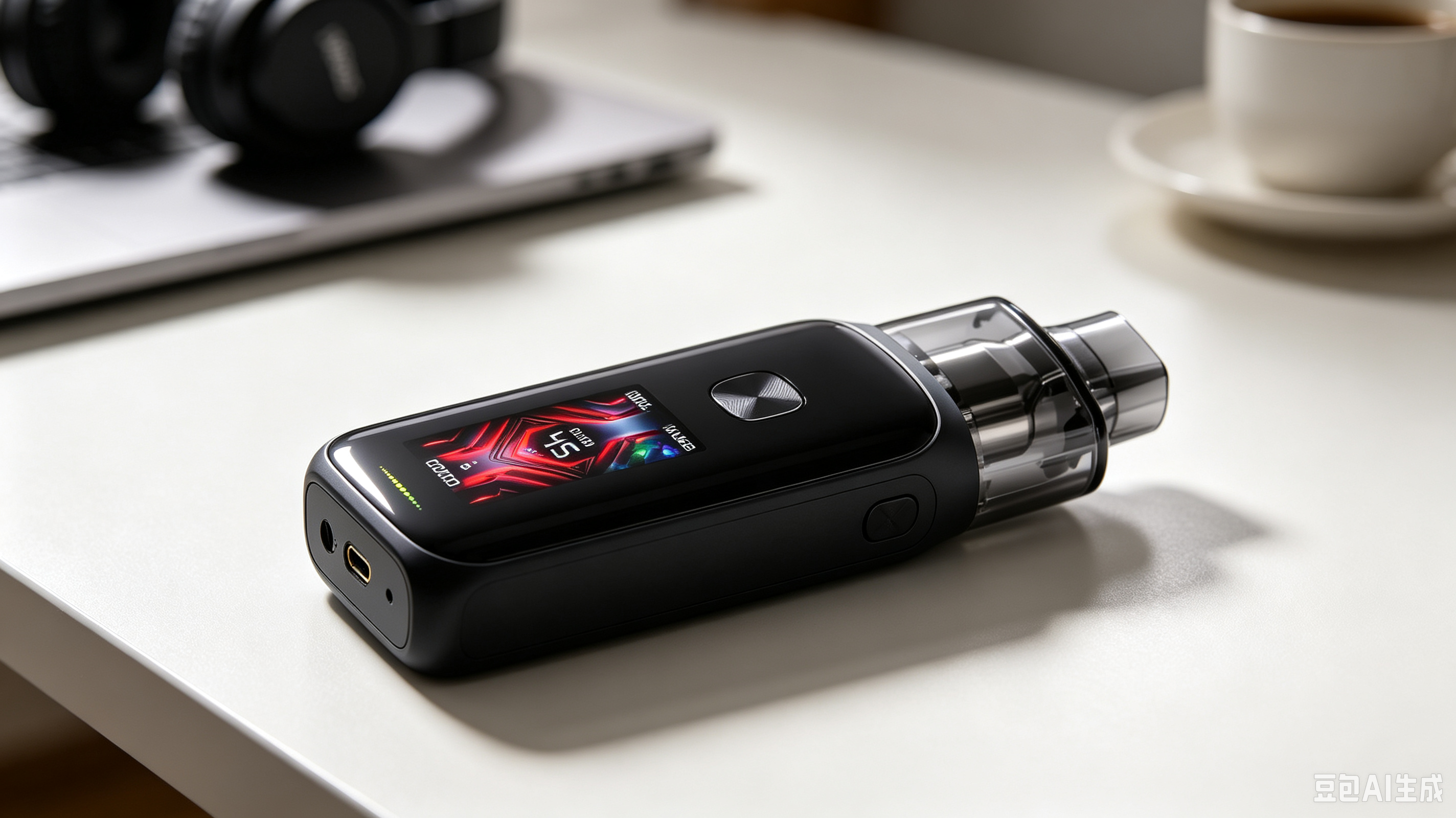

E-cigarettes / Vape Devices — Compact size and high brightness make it ideal for displaying battery level, wattage, puff count, and mode settings with responsive touch control.
Wearables — Fits smartwatches, fitness bands, and health trackers where a slim, low-power display with wide viewing angles is required.
Portable Medical Devices — Suitable for handheld thermometers, oximeters, and glucose meters needing clear readouts and glove-friendly touch input.
Smart Home & IoT — Works well in smart switches, thermostats, door locks, and control panels for intuitive on-device operation and status display.
Industrial Handhelds — The -20℃ to +70℃ operating range supports use in portable meters, testers, and inspection tools in demanding environments.
Consumer Electronics — Ideal for mini game consoles, Bluetooth speakers, MP3 players, and other compact gadgets requiring a color screen with touch.
Instrumentation & Control — A good fit for small instruments, diagnostic tools, and equipment panels where a customizable FPC and pin layout simplify integration.
| Packing & Delivery |
| FAQ |
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
