TSD 4.3 Inch HDMI Interface 800x480 Resolution ST7262E43 IPS TFT LCD Display Module

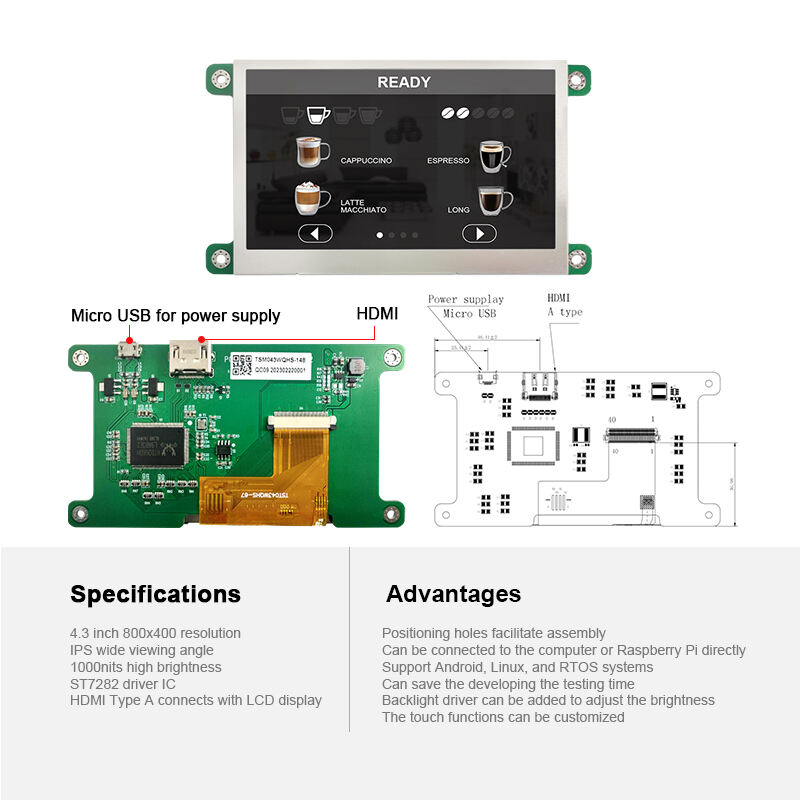

Providing a clear and colorful display, the 4.3-inch IPS TFT LCD module with a resolution of 800x480. It comes with HDMI interface, which can quickly realize HD signal transmission through a variety of HDMI output devices. The ST7262E43 is guaranteed to be stable to ensure normal display. The IPS technology provides ultra-wide viewing Angle, which is suitable for scenes with high requirements for display, such as industrial control and smart home.
Brand:
TSD
Spu:
TSM043WVBS-79
Appurtenance:
- Overview
- Related Products
4.3'' 4.3 Inch 800xRGBx480 Resolution HD MI Interface IPS TFT LCD Display Module |
||
Model Number |
TSM043WVBS-79 |
|
Display Type |
4.3 Inch TFT LCD Display Module |
|
Resolution |
800xRGBx480 |
|
Outline Size |
105.50x67.20x4.15 mm |
|
Active Size |
95.04x53.86 mm |
|
View Direction |
All |
|
Interface |
HD MI |
|
Surface Lumiannce |
440(nits) |
|
Driver IC |
ST7262E43 |
|
Operating Temperature |
-20--+70/-30--+85(℃) |
|
Storage Temperature |
-30--+80/-40--+90(℃) |
|
Brand |
TSD |
|
Custom Service |
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
|
Have any customize requirements, please feel free to contact us.
